Outdoor Dual Band Plate Signal Jammer Antenna
  • Outdoor Dual Band Plate Signal Jammer AntennaOutdoor Dual Band Plate Signal Jammer Antenna
  • Outdoor Dual Band Plate Signal Jammer AntennaOutdoor Dual Band Plate Signal Jammer Antenna

Outdoor Dual Band Plate Signal Jammer Antenna

Buy a signal jammer antenna that can be assembled with other products,Rongxin Outdoor Dual Band Plate Signal Jammer Antenna is a professional sector antenna that has been constructed with heavy duty aluminum extrusion and covered with a UV resistant ABS radome for all weather operation.

Send Inquiry

Product Description

Rongxin Outdoor Dual Band Plate Signal Jammer Antenna Introduction

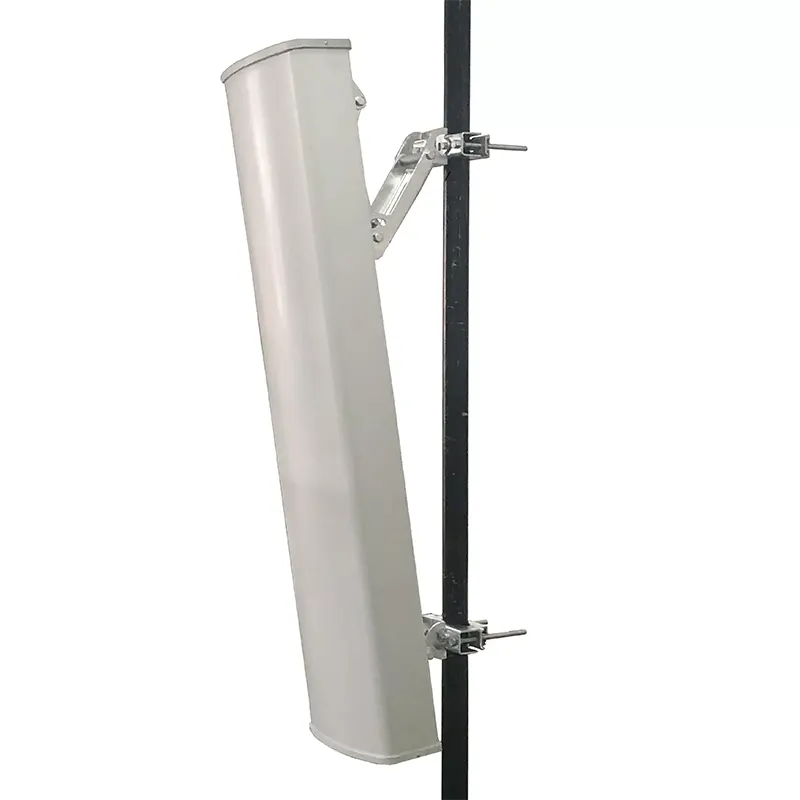

Factory directly supply outdoor dual band plate signal jammer antenna made in China with low price. Rongxin is a large-scale outdoor dual band plate signal jammer antenna manufacturer and supplier in China.Rongxin outdoor dual band plate signal jammer antenna is very well suited for communicating with fixed and mobile wireless clients, to improve RF performance and versatility in high-capacity, long range, point-to-multipoint deployments.Because of its high gain 16dBi, it offers superior extended range. The 90 degree beamwidth covers a large service area. The heavy duty mounting system will ensure a stable installation in high wind conditions. The mount has a tilt indicator to enable setting of accurate antenna down tilt.

Rongxin Outdoor Dual Band Plate Signal Jammer Antenna Specification

Electrical Parameter



FrequencyRange

(each antenna can have Max 5 ports for different frequency)

Customized

For cellular wifi GPS vhf uhf etc.

GSM900: 870-960 MHz

DCS1800: 1805-1880 MHz

FDD2100: 2110-2170 MHz

LTE 2300: 2300-2500 MHz

LTE2600: 2500-2690 MHz

2.4Ghz: 2400-2485MHz

5G: 3600-3800 MHz

Wifi5.8GHz: 5725-5850 MHz

GPSL1: 1560-1620MHz

Etc

Gain

16±1dBi

VSWR

≤1.5

Polarization

Single Polarization

Horizontal Beamwidth(0º)

100±5º

Vertical Beamwidth(0º)

15±3º

Front-to-back ratio(dB)

≥25

Input Impedance(Ω)

50Ω

Maximum input power(W)

500W

Input connector type

Max 5 ports

N-Female,etc.

Lightning Protection

DC Ground


Mechanical Parameter

Dimensions*mm

(Height/Width/Depth)

1500*420*125mm

(Length can be 60cm,90cm,120cm, etc)

Packing size(mm)

1600*550*200mm

Antenna weight(kg)

8.5Kg

Rated Wind Velocity(m/s)

60m/s

Operational Humidity(%)

10- 95

Radome Color

Gray Color

Radome material

UPVC

Operating temperature(ºC)

-30~75 º

Installution Method

Pole Mount

Mounting hardware(mm)

¢40~¢80

Mechanical tilt(º)

0-10º

Rongxin Outdoor Dual Band Plate Signal Jammer Antenna Feature

*Customized frequency
* Single polarized sector directional antenna
*16 dBi High gain , 90 degree beam width

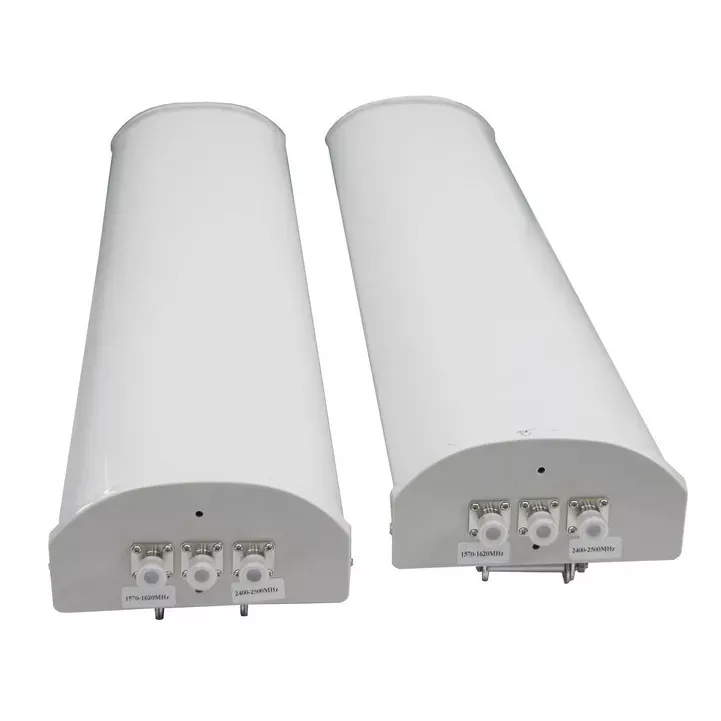

*Type N female integrated connector; Other types SMA etc is available
*Size optional 60cm,90cm,120cm,150cm,etc.
*Heavy duty mounting bracket with up/down tilt various degree adjustment
*IP65-rated enclosure Resists Outdoor Conditions & Wind Gusts to 125 Mph Waterproof, Dustproof, Shock proof, Heat-Resistant, Anti-Corrosive, Easy use in outdoor all weather
