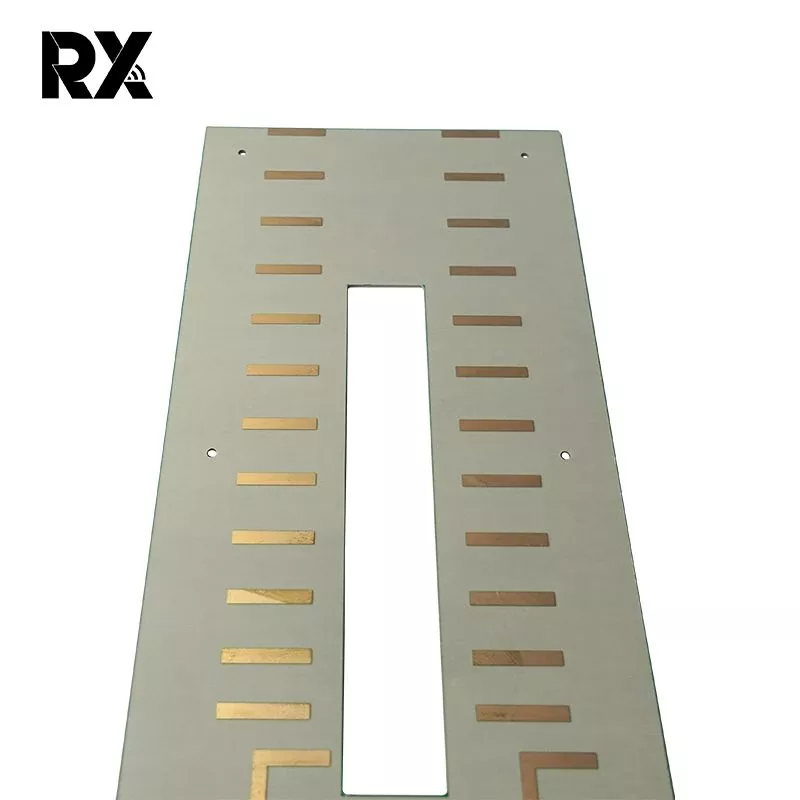

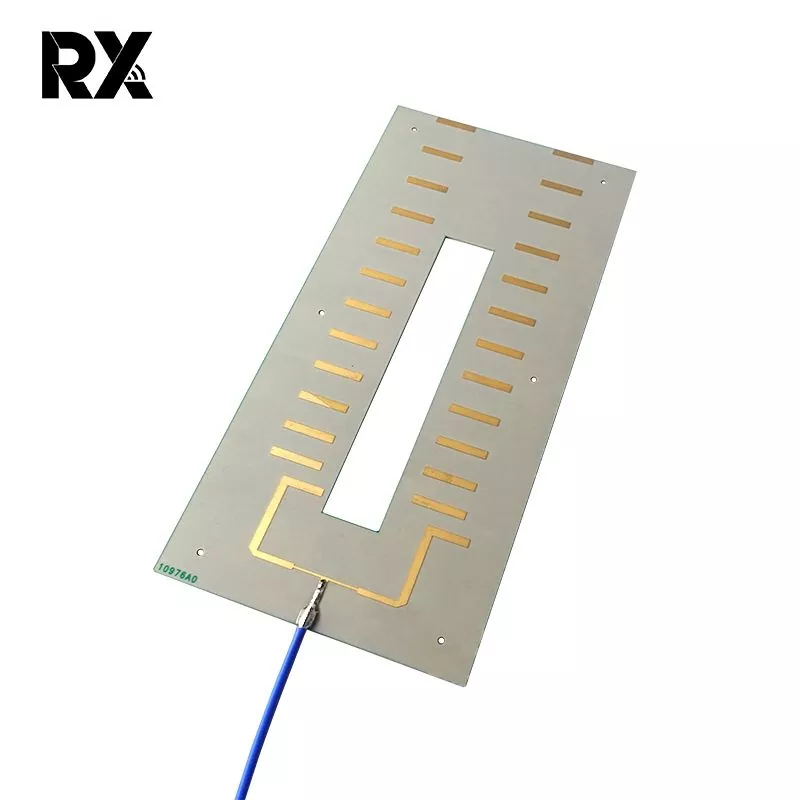

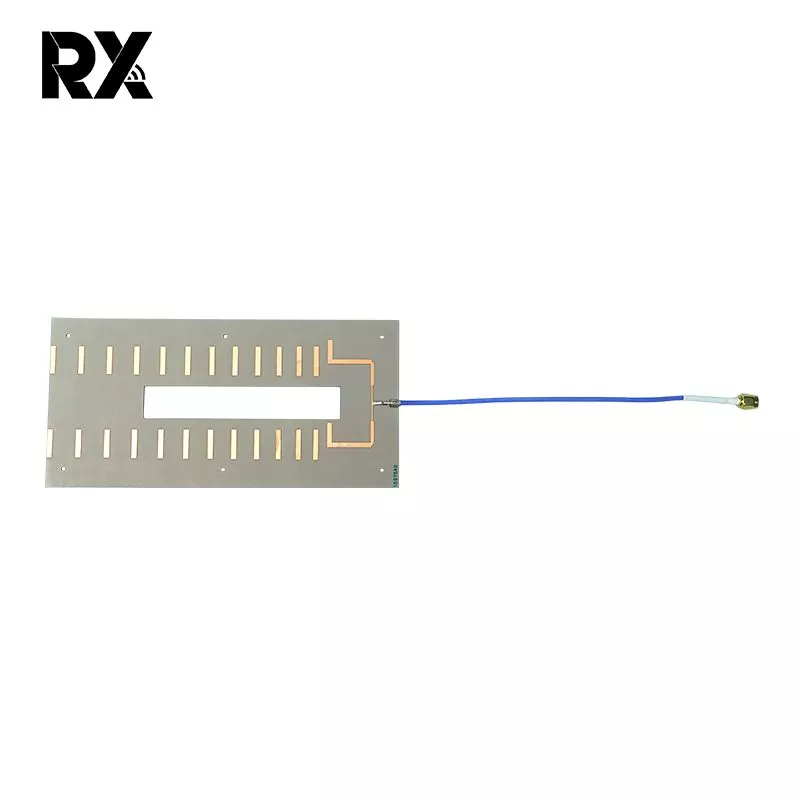

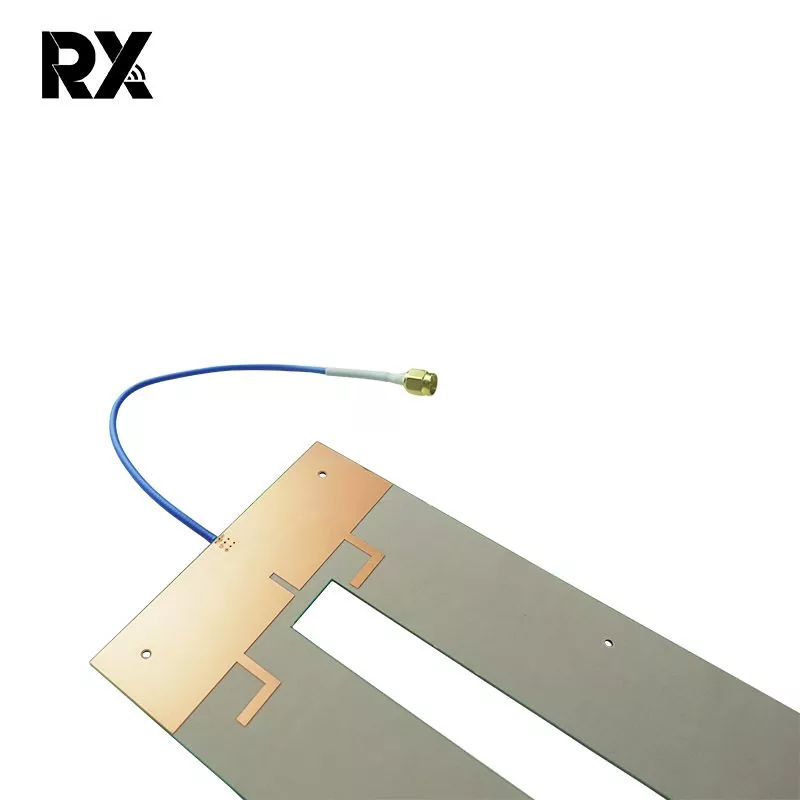

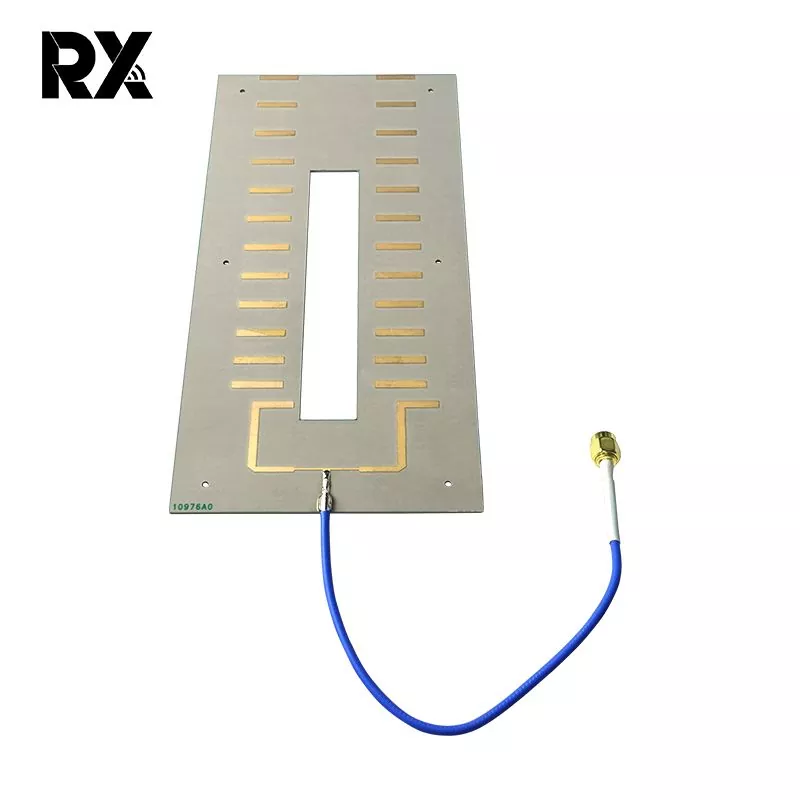

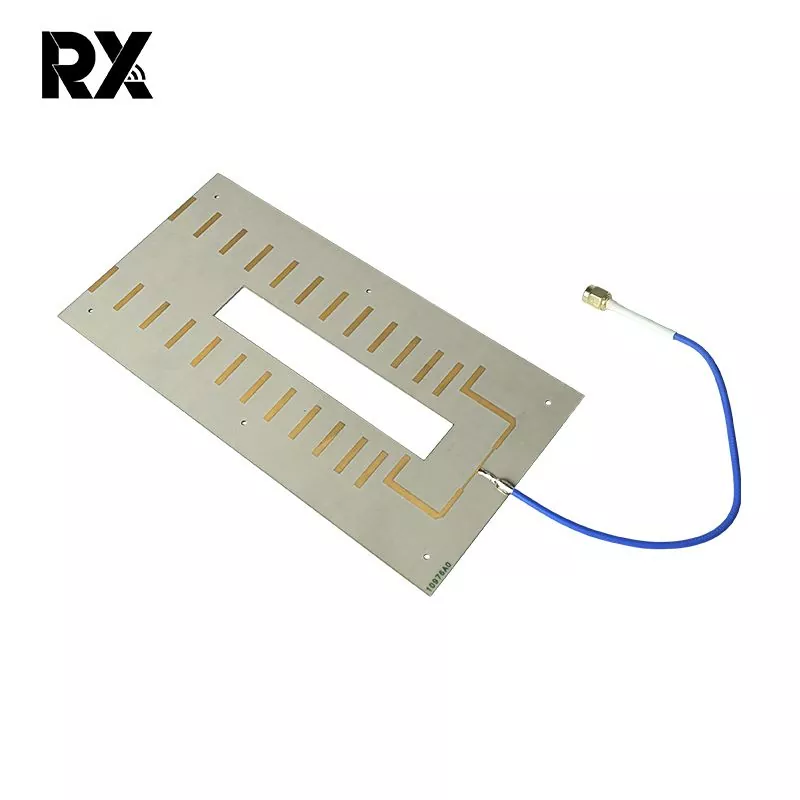

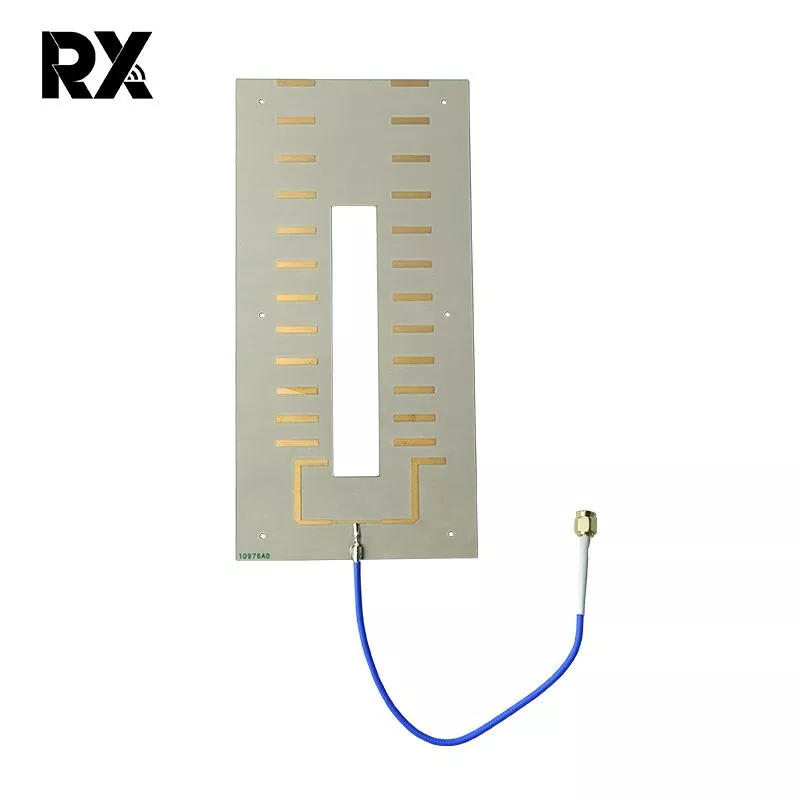

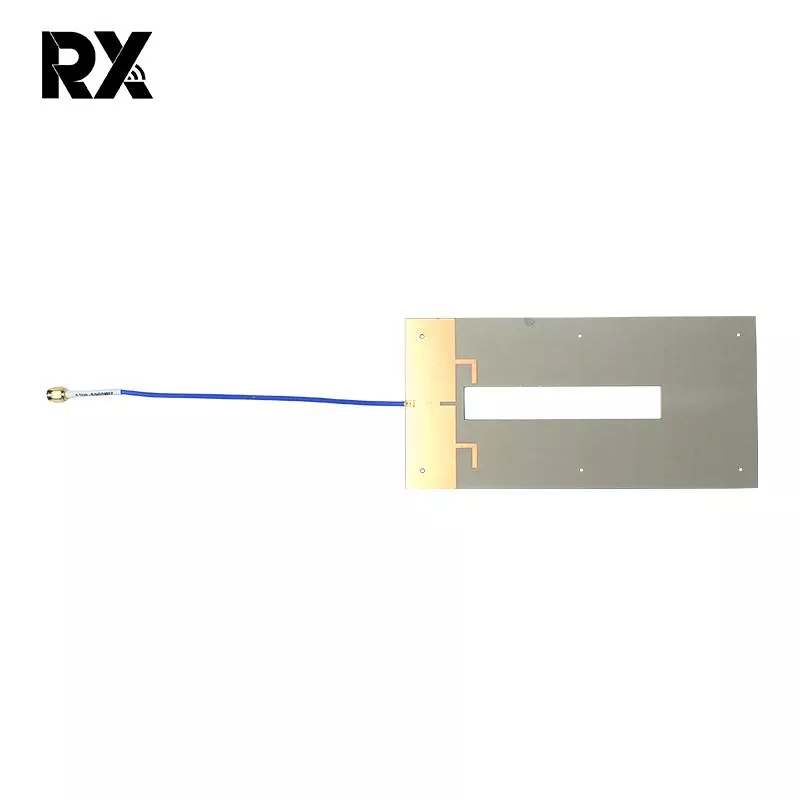

5.8G 45°18dBi Enhanced Directional PCB Antenna

Rongxin is 5.8G 45°18dBi Enhanced Directional PCB Antenna manufacturers and suppliers in China who can wholesale PCB antenna. We can provide professional service and better price for you. If you interested in PCB antenna products, please contact with us. We follow the quality of rest assured that the price of conscience, dedicated service.

Send Inquiry

Product Description

You are welcomed to come to our factory to buy the latest selling, low price, and high-quality 5.8G 45°18dBi Enhanced Directional PCB Antenna. We look forward to cooperating with you. This kind of high gain max 18dBi PCB antenna is mainly used for the customer assembly for the drone defense product. It can be connected with our drone defense module to make the powerful finished drone defense product as the way expected.

Rongxin 5.8G 45°18dBi Enhanced Directional PCB Antenna Specification

█ElectricalSpecifications
Frequency Range		5700-5900MHz
Gain(dBi)		18±1dBi
VSWR		≤2
Polarization		Vertical
Horizontal Beamwidth(0º)		45±10º
Vertical Beamwidth(0º)		22±5º
Front-to-back ratio(dB)		≥15
Electrical lower inclination(0º)		0º
Input Impedance（Ω）		50Ω
Maximum input power(W)		50W

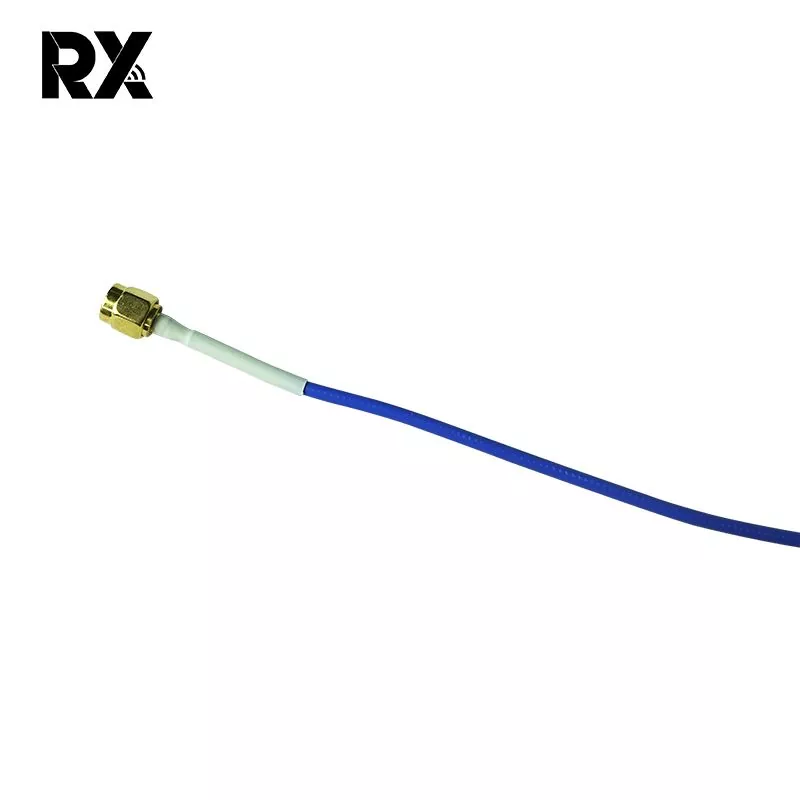

Inpur connector type		SMA-J
Lightning Protection		DC Ground
█MechanicalSpecifications

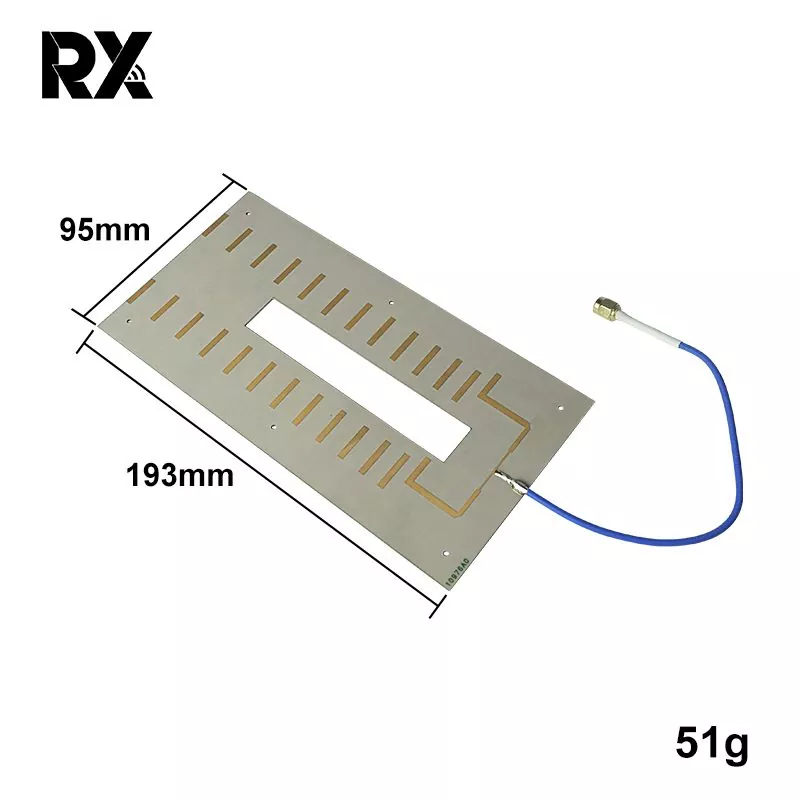

Dimensionsmm(Height/Width/Depth)		941971mm
Antenna weight(kg)		0.17Kg
Operational Humidity(％)		10- 95
Operating temperature(ºC)		-30～70 º
Horizontal	Vertical
