Drone Defense PCB Signal Jammer Antenna

Rongxin is drone jammer manufacturers and suppliers in China who can wholesale anri drone related products. We can provide professional service and better price for you. If you interested in anti drone products, please contact with us. We follow the quality of rest assured that the price of conscience, dedicated service.This Rongxin high quality drone defense PCB signal jammer antenna is an important accessory of drone jammer,we also support seperately sold.

Send Inquiry

Product Description

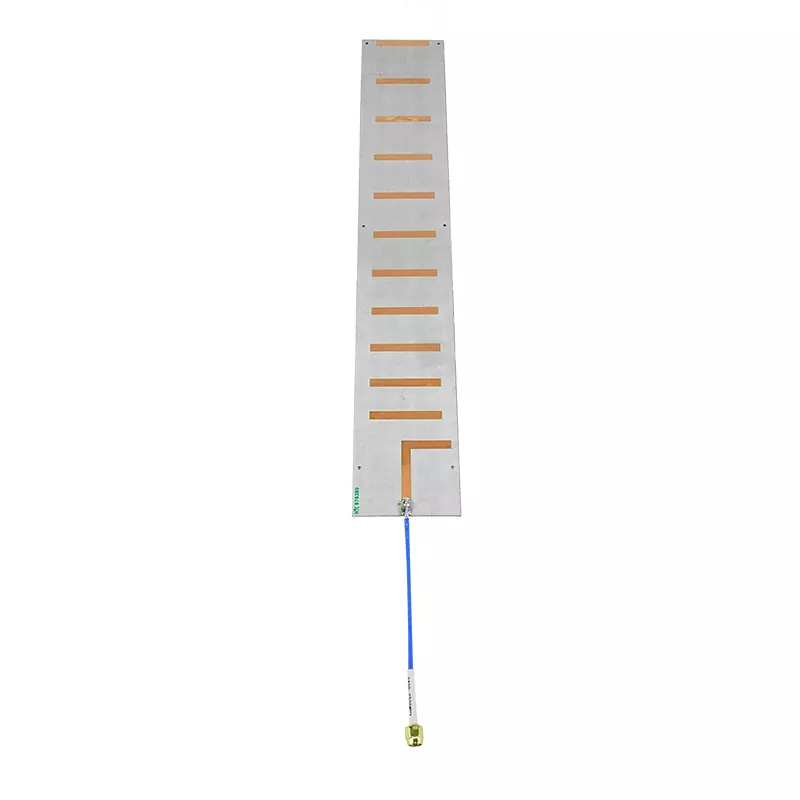

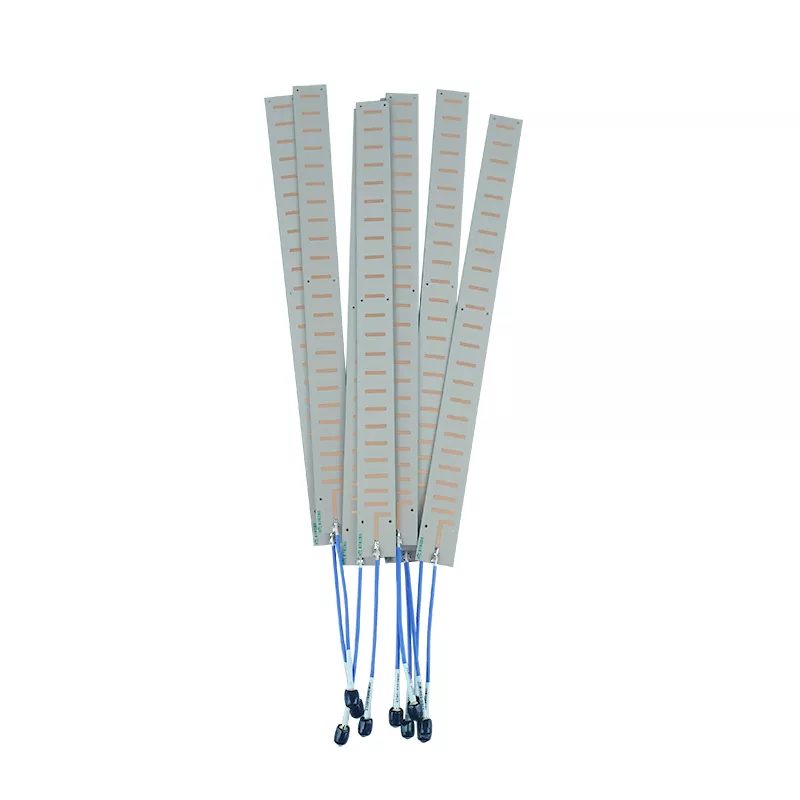

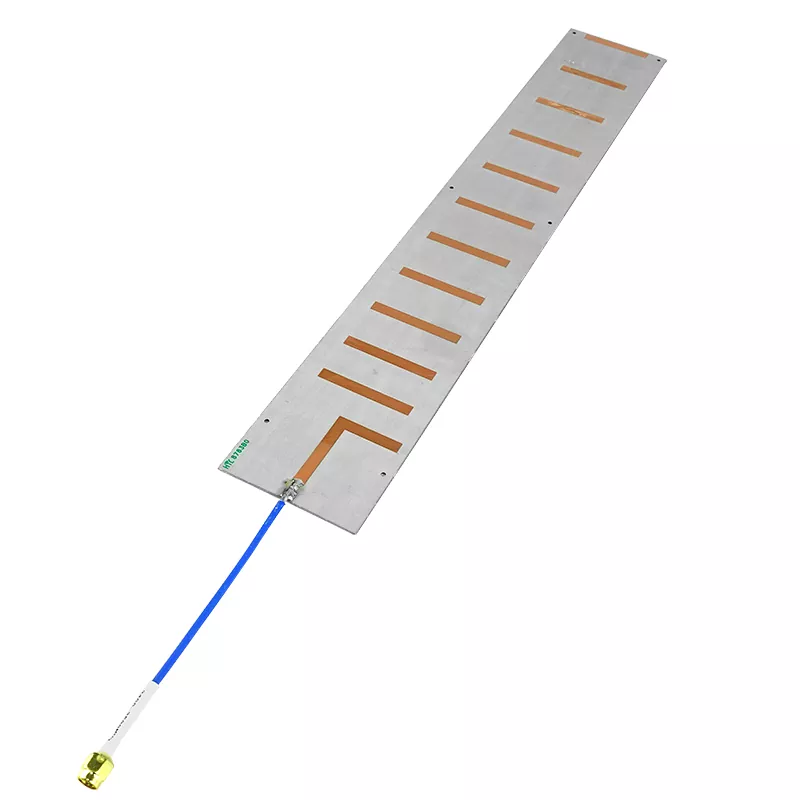

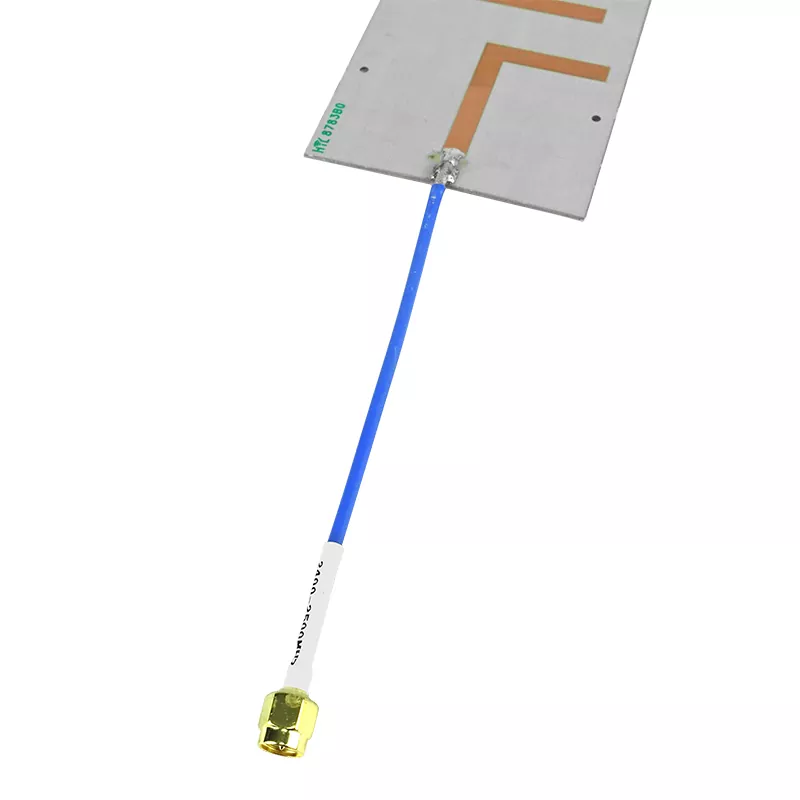

Rongxin Drone Defense PCB Signal Jammer Antenna Introduction

This quality Rongxin drone defense PCB signal jammer antenna is a core accessory of drone jammer.The frequency of Rongxin drone defense PCB signal jammer antenna is 2400-2500MHz or customize,with high gain 16dBi.

Rongxin Drone Defense PCB Signal Jammer Antenna Specification

█Electrical Specifications
FrequencyRange	2400-2500MHz
Ga in(dBi)	16±1dbi
VSWR	≤1.5
Polarization	Vertical
Horizontal Beamwidth(0º)	48-58º
Vertical Beamwidth(0º)	27-38º
( Front to back ratio）db	12dB
Input Impedance（Ω）	50Ω
Maximum input power(W)	50W
Inpur connector type	SMA-J with 086
Lightning Protection	DC Ground
█MechanicalSpecifications
Dimensionsmm(Height/Width/Depth)	370601mm
Packing size(mm)	****mm
Antenna weight(kg)	0.22Kg
Rated Wind Velocity（m/s)	60m/s
Operational Humidity(％)	10- 95
Radome Color	（Grey）
Antenna body material	Double Polytetrafluoroethylene copper clad plate
Operating temperature(ºC)	-40～55 º
Installution Method	Built-in installation

Rongxin Drone Defense PCB Signal Jammer Antenna Feature

1.Wide band, high gain and Low VSWR.
2. High quality Aluminum Alloy material.
3. Good Environmental Adaptability.
4. With the Cable leads.
5. Can be horizontal or Vertical installation
