Which type of antenna is better?

There is no one-size-fits-all answer to which antenna is better, as the best choice depends on various factors, such as the application, frequency band, environment, and specific requirements. Here are some common antenna types and scenarios where they tend to perform well:

1. Dipole Antennas

(1) - Advantages:

- Simple design and low price: Dipole antennas are relatively easy to build and cost-effective. They consist of two conductive elements (usually wires) and are widely used in basic applications such as FM radio receivers and some simple wireless communication devices.

- Single-plane omnidirectional: They radiate and receive signals in an omnidirectional pattern in a plane perpendicular to the dipole elements. This makes them suitable for applications where signals need to be received or transmitted evenly in all directions around the antenna in that plane, such as in local areas where you want to cover a circular area with a radio signal.

(2) - Disadvantages: They have relatively low gain compared to other types of antennas, which means they may not be suitable for long-distance communications or environments with high interference.

2. Yagi Antennas

(1) - Advantages:

- High directivity: Yagi antennas have a narrow radiation pattern that focuses the signal in a specific direction. This gives them higher gain, making them useful in applications that require transmitting or receiving signals over long distances in a specific direction, such as point-to-point communication links (e.g., between two buildings).

- Compact size: They are relatively compact for the amount of gain they provide, making them useful in situations where space is limited but good performance is needed.

(2) - Disadvantages: Their directional nature means they need to be precisely aimed at the signal source or destination. If the orientation is incorrect, performance can drop significantly.

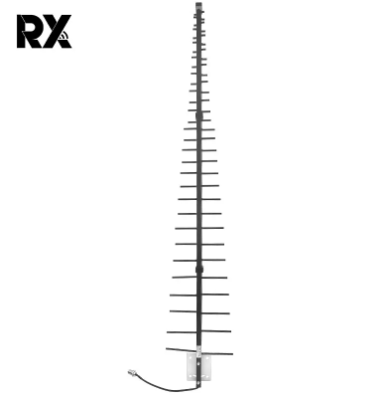

720-1020MHz 14dBi Yagi Directional Antenna

3. Patch Antennas

(1) - Advantages:

- Low profile: Patch antennas are flat and can be easily integrated into the surface of devices such as smartphones, laptops, and tablets. Their low-profile design makes them useful in applications that require a compact and unobtrusive antenna.

- Good performance in limited spaces: They can operate effectively in small spaces and are often used in modern wireless communication devices where antenna space is at a premium.

- Multi-band capability: Some patch antennas can be designed to operate in multiple frequency bands, which is useful for devices that need to support different wireless standards (e.g., Wi-Fi in the 2.4 GHz and 5 GHz bands).

(2) - Disadvantages: They generally have lower gain than other types of antennas and may require more complex design and manufacturing processes to achieve optimal performance.

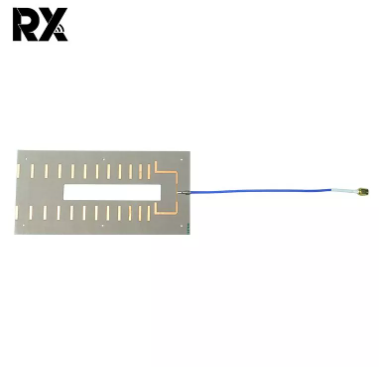

5.8G 45°18dBi Enhanced Directional PCB Antenna

4. Helical Antennas

(1) - Advantages:

- Circular Polarization: Helical antennas can produce circularly polarized signals, which is useful for applications where the direction of the transmitting and receiving antennas may change, such as satellite communications or multipath propagation environments. Circular polarization can reduce the effects of signal fading and interference caused by changes in antenna orientation.

- Wide bandwidth: They can have relatively wide bandwidths, allowing them to operate over a range of frequencies without significantly degrading performance.

(2) - Disadvantages: They can be more complex to design and manufacture than some simpler antennas, and their performance can be sensitive to physical size and construction details.

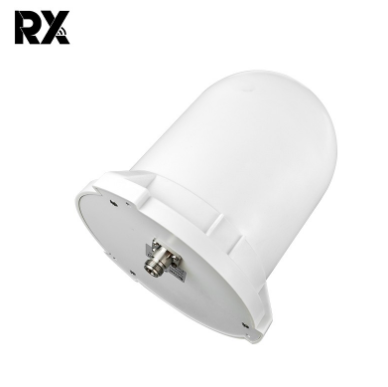

Circular Polarization Omnidirectional Antenna

In summary, the "better" type of antenna depends on your specific needs.
