How will RF Signal Jamming Device Work ?

Radio frequency (RF) signal jammers work by transmitting strong RF signals in the same frequency band as the target signal, thereby interfering with the normal communication and operation of the target signal.

1. Signal Generation

(1) Frequency Selection: Jammers are designed to operate in a specific frequency range. For example, if used to jam cell phone signals, it will select the frequency bands used by mobile networks, such as GSM (900 MHz and 1800 MHz in some regions), CDMA, or the various frequency bands used by 3G, 4G, and 5G networks. For Wi-Fi jamming, it will focus on the 2.4 GHz and 5 GHz frequency bands.

(2) Signal Generation Circuitry: There is a signal generation circuit inside the device that is used to generate the RF signal. This circuit usually contains components such as an oscillator (to generate the base frequency) and an amplifier (to increase the power of the generated signal). The generated signal is then adjusted to have appropriate characteristics.

2. Power Amplification

(1) Signal Strength Enhancement: After the RF signal is generated, it usually passes through a power amplifier stage. A power amplifier boosts the signal power to a level that can effectively interfere with the target signal. For example, the power output of a typical RF signal jammer can range from a few watts to tens of watts, depending on the application and the desired interference range. Higher power output enables the jamming signal to cover a larger area and suppress legitimate signals more effectively.

(2) Use of high-power components: The power amplifier stage typically uses components such as LDMOS (laterally diffused metal oxide semiconductor) transistors or other high-power semiconductor devices. These components are able to handle large amounts of electrical energy and convert the input power into a high-power RF output.

3. Transmission

(1) Antenna deployment: The amplified RF signal is then transmitted into the air through an antenna. The antenna is an important part of the jamming device because it can radiate the signal in all directions (omnidirectional antenna) or in a specific direction (directional antenna, which can be used to target a specific area or signal source). The type of antenna used depends on the application scenario and the required coverage range.

(2) Signal propagation: After the jamming signal is transmitted, it propagates in the air in the form of electromagnetic waves. It propagates at the speed of light and spreads over a certain range. When it reaches the receiving device (such as a mobile phone, Wi-Fi router, drone, etc.), it interferes with the normal signal that these devices are trying to receive.

4. Interference Mechanisms

(1) Exceeding the legitimate signal: The interference signal is designed to be strong enough to exceed the weak incoming signal from the signal source (such as a mobile base station or Wi-Fi access point) at the receiving device end. When the antenna of the receiving device receives both the legitimate signal and the interference signal, the strong interference signal causes the receiver's front-end circuitry (such as a low-noise amplifier) to saturate or be overwhelmed. This causes the receiver to be unable to properly amplify and process the legitimate signal, resulting in a dropped or lost connection.

(2) Generating noise and distortion: In addition to exceeding the legitimate signal power, the interference signal also introduces noise and distortion into the receiver circuitry. The random or chaotic nature of the interference signal interferes with the normal operation of the receiver's demodulation process, making it difficult for the device to extract meaningful information from the legitimate signal.

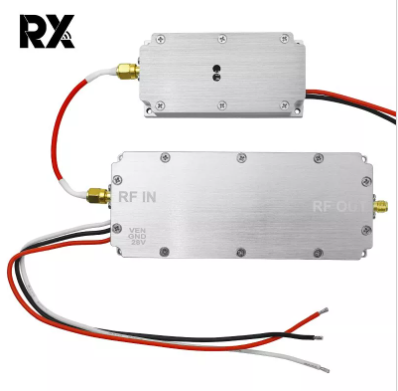

30W RF Power Amplifier Module

In summary, RF signal jammers generate, amplify, and transmit strong RF signals within the target frequency band, disrupting the normal operation of devices that rely on these frequencies for communication, effectively jamming their signals. It is worth noting that in many regions, the use of RF signal jammers is restricted by law because they may interfere with legitimate communication services.
