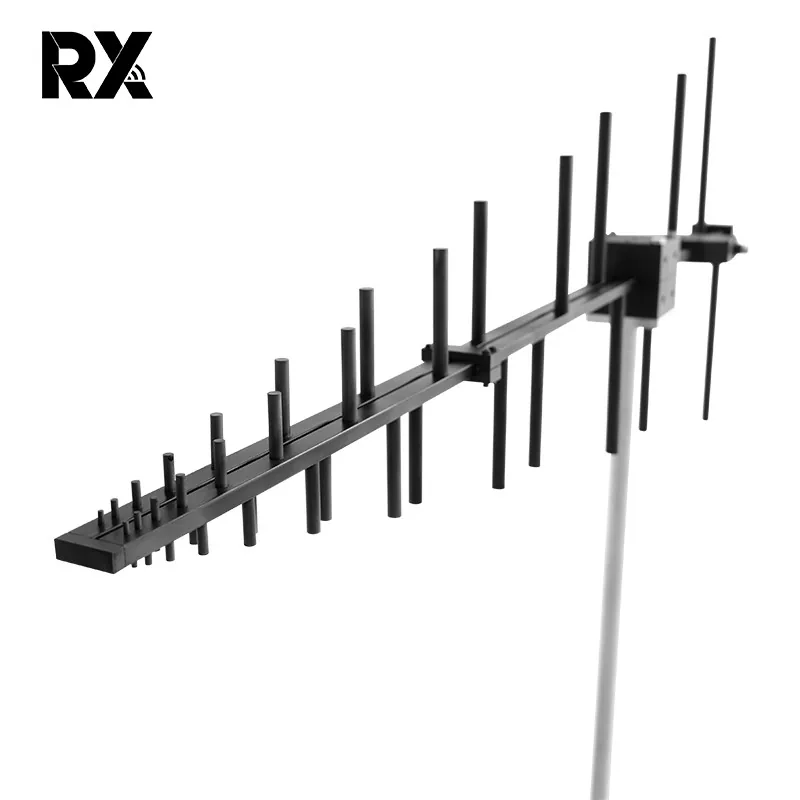

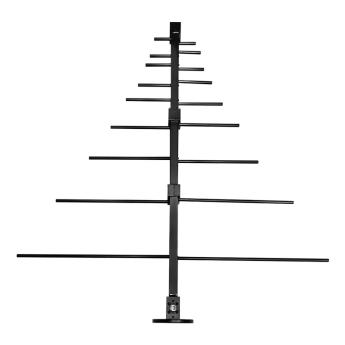

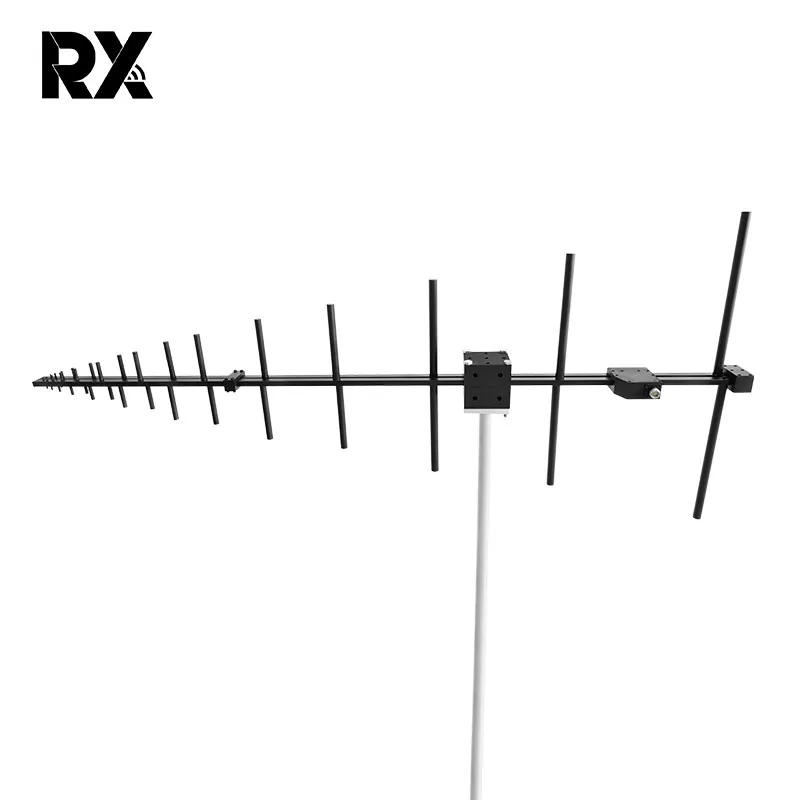

High Gain 8dbi Log Periodic Antenna 300-1000MHz

The antenna shows excellent performance in a wide frequency range of 300 - 1000MHz. The high gain of 8dBi can effectively enhance the signal strength and ensure the stability and reliability of communication. The antenna is developed by Texin, High Gain 8dbi Log periodic antenna 300-1000MHz easy to install and can be used in strict environments. Its main function is to receive signals and be able to transmit signals.

Send Inquiry

Product Description

The operating frequency range is 300 - 1000MHz, which can meet the signal transmission needs of various different frequency bands, including FM broadcasting , specific wireless communication systems and signal receiving and transmitting bands in some professional fields. High Gain 8dbi Log periodic antenna 300-1000MHz can flexibly adapt to different services without frequently changing antennas due to frequency band switching, greatly improving the convenience of use.

Product specification

Technical Specification
Frequency Range	300-1000 MHz
Gain	6-8dbi
VSWR	＜2.0
Polarization	Vertical
HorizontalBandwidth	42-50°
VerticalBandwidth	55°
Front to back ratio	12db
Input Impedance	50Ω
Maximum Input	100W
Input Connector	N-K
Lightning Protection	DC Ground
Mechanical specifications
Dimension	90065080mm
Packing Size	1000700400mm（5pcs）
Antenna Weight	758g
Rated Wind Velocity	31m/s
OperationalHumidity	10-95％
RadiomenColor	Boack matte finish
Radome Material	/
Operation Temperature	-55-70°C
Installation Method	Flange mounting

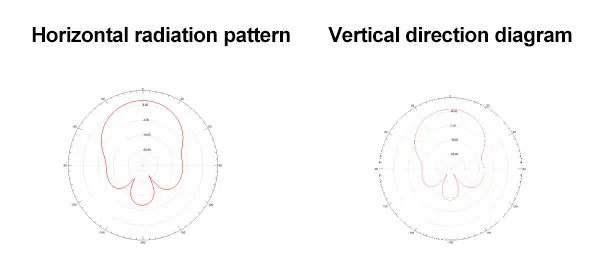

Radiation Pattern
