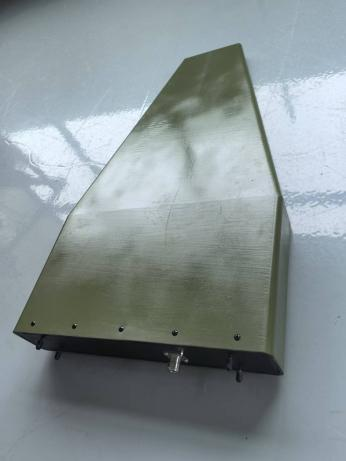

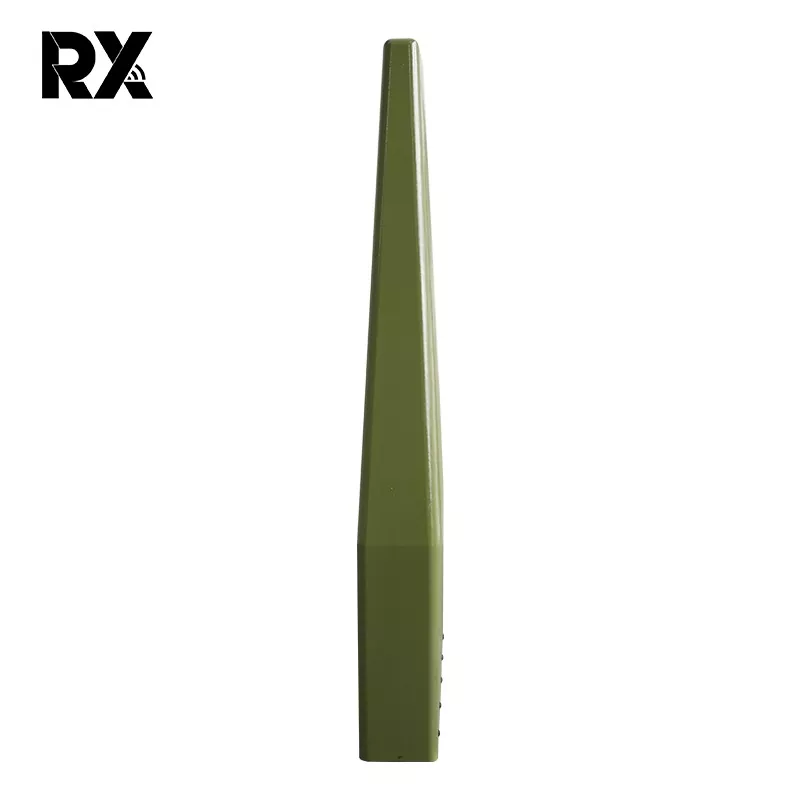

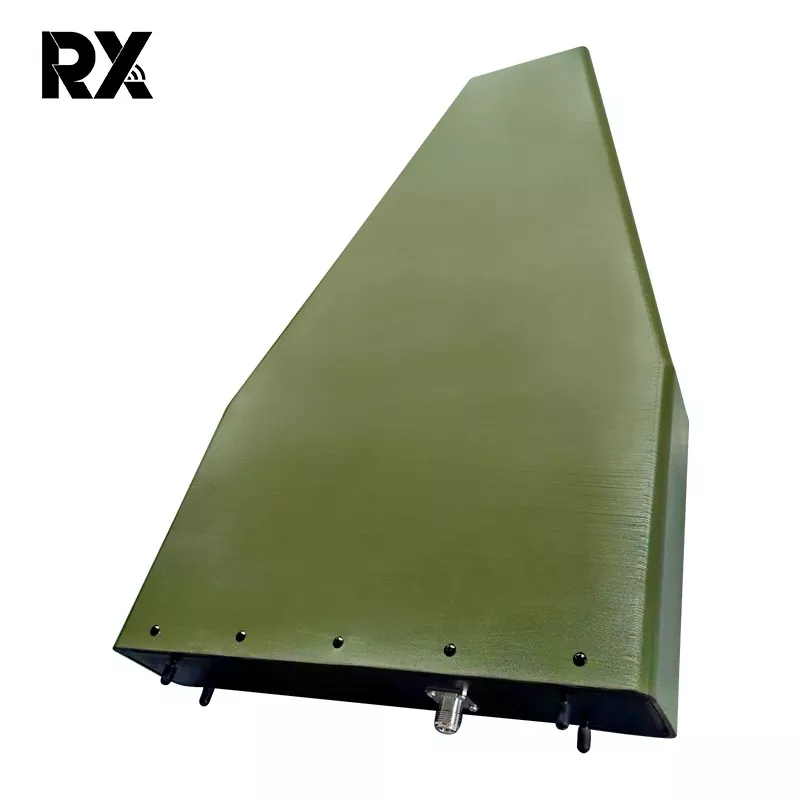

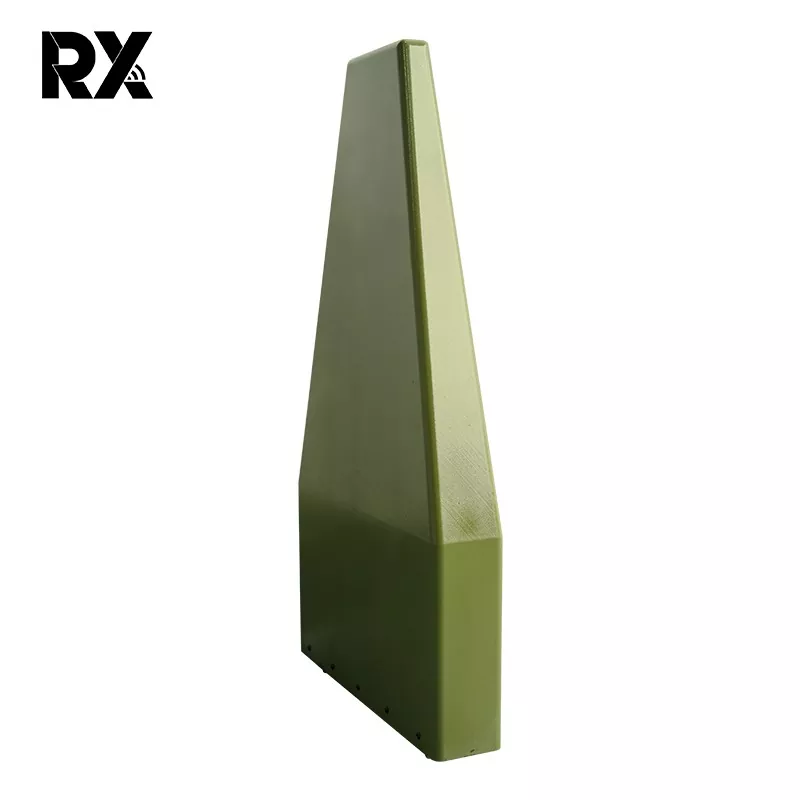

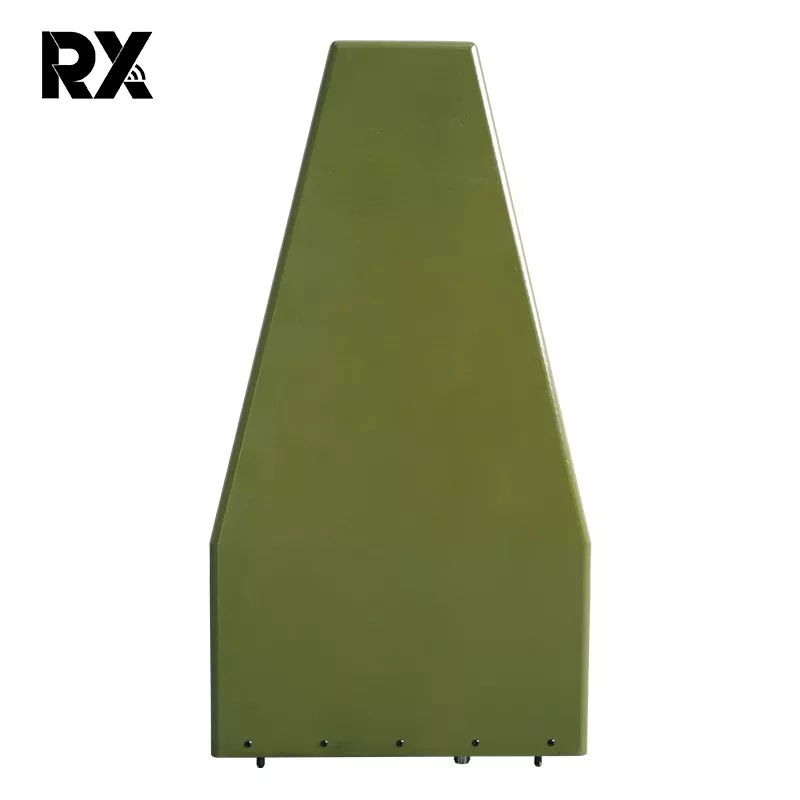

Directional 400-2000MHz Log Periodic Antenna 10dbi Outdoor Antenna

Directional 400 - 2000MHz Log periodic antenna 10dbi outdoor antenna is designed for applications with extremely high requirements for signal strength. Its can work stably in an ultra-wide frequency range of 400 - 2000MHz, and the high gain of 10dBi ensures efficient transmission and reception of signals, providing reliable signal connections for various outdoor communication and signal acquisition equipment. The quality of the antennas produced by Texin is guaranteed, and their excellent performance and good use effect make them popular with customers.

Send Inquiry

Product Description

With a high gain of 10dBi, it can more effectively focus the signal in a specific direction for transmission or reception compared to ordinary antennas. Directional 400 - 2000MHz Log periodic antenna 10dbi outdoor antenna is easy to install and able to adapt complex environments. In remote areas such as mountainous areas,deserts ,school and military where signal coverage is weak, the antenna can effectively expand the base station signal coverage and enhance signal strength.

Product specification

Technical Specification
Frequency Range	400-2000 MHz
Gain	6-10dbi
VSWR	＜2.0
Polarization	Vertical
HorizontalBandwidth	42-50°
VerticalBandwidth	55°
Front to back ratio	12db
Input Impedance	50Ω
Maximum Input	100W

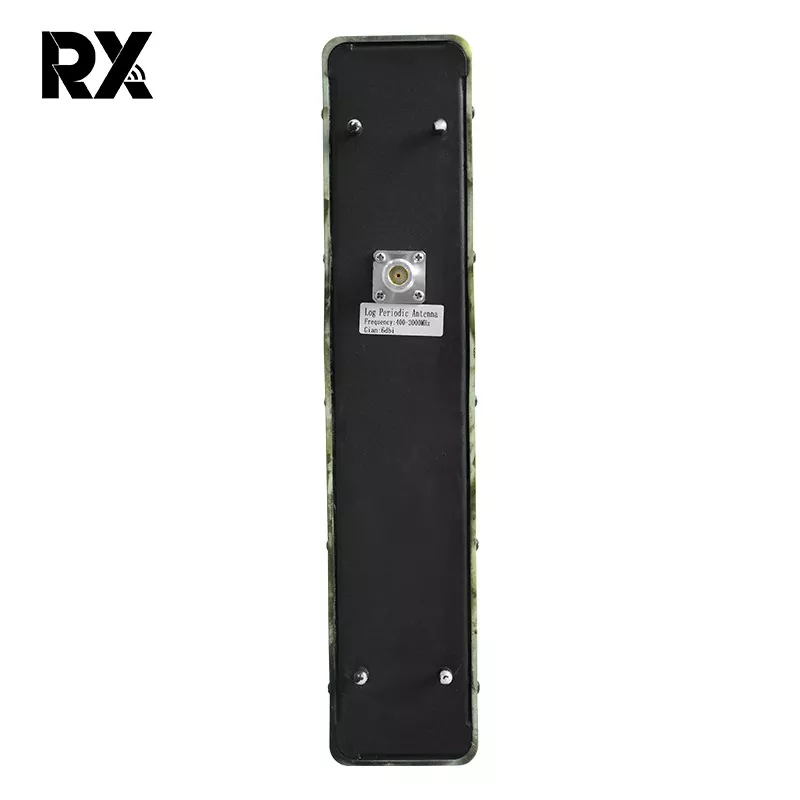

Input Connector	N-K
Lightning Protection	DC Ground
Mechanical specifications
Dimension	65035075mm
Packing Size	750450400mm（5pcs）
Antenna Weight	758g
Rated Wind Velocity	31m/s
OperationalHumidity	10-95％
RadiomenColor	Boack matte finish
Radome Material	/
Operation Temperature	-55-70°C
Installation Method	Flange mounting

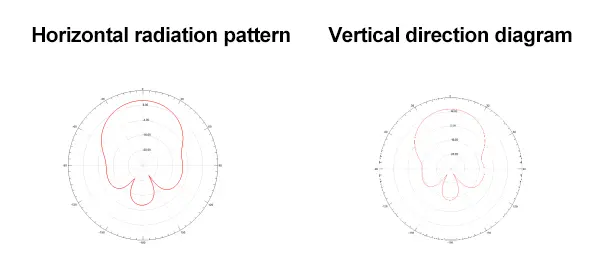

Radiation Pattern
