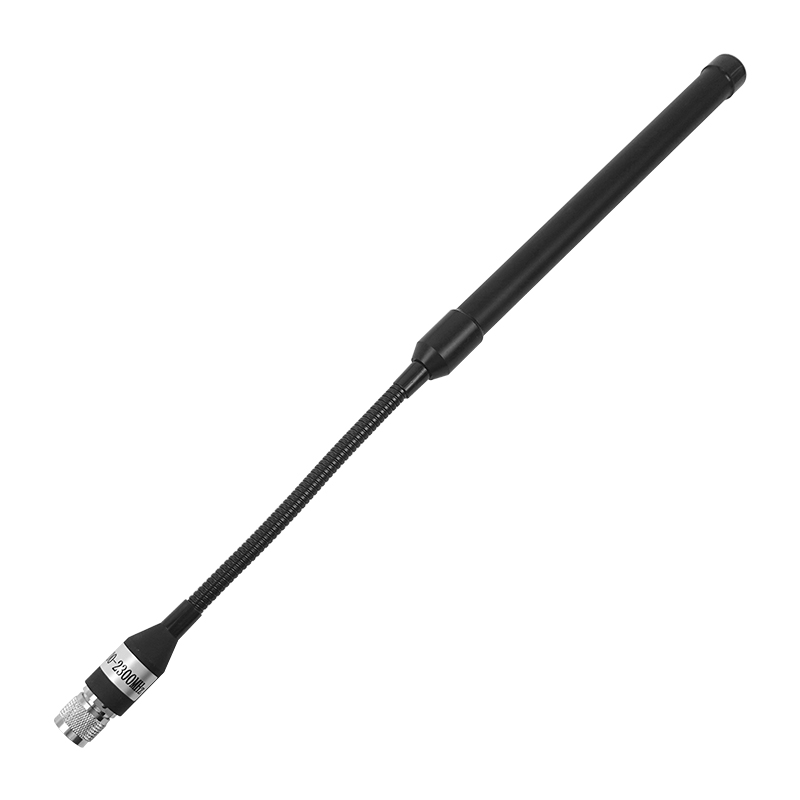

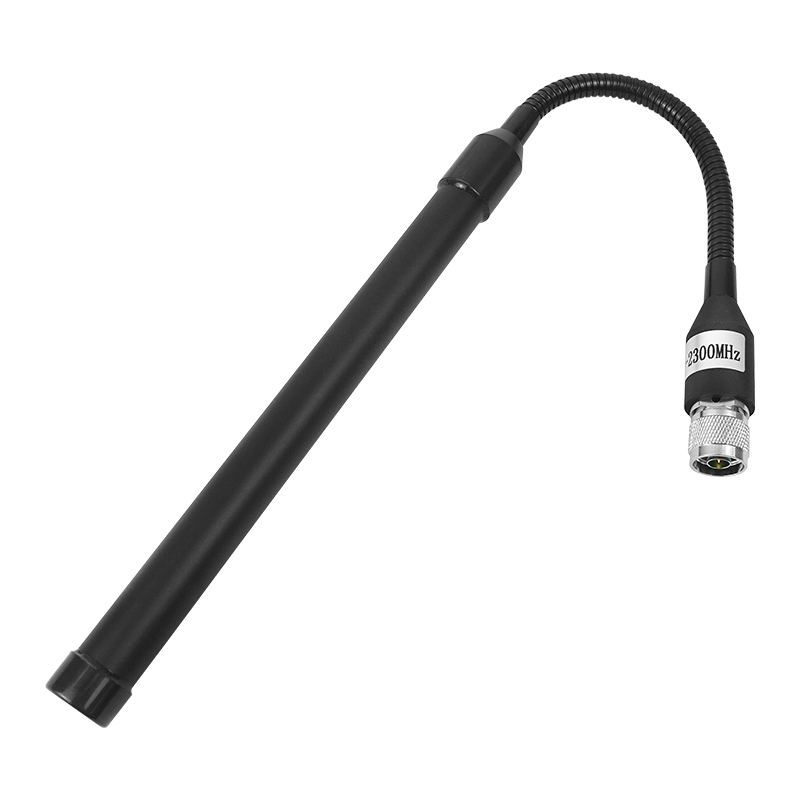

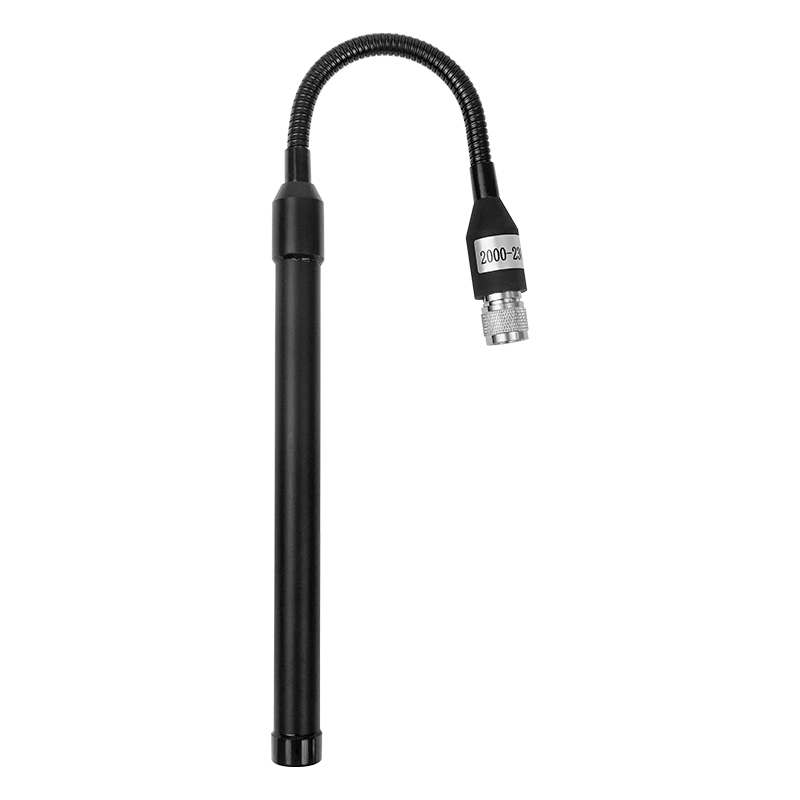

This antenna is specifically designed to operate within the 2.3G frequency band. With a frequency range of 2000-2300MHz. This high gain significantly boosts the strength of the transmitted and received signals. 2.3G Outdoor waterproof Fiberglass Goosenck Spring Antenna design enables flexible positioning, allowing users to adjust the antenna's angle to achieve the best signal reception.

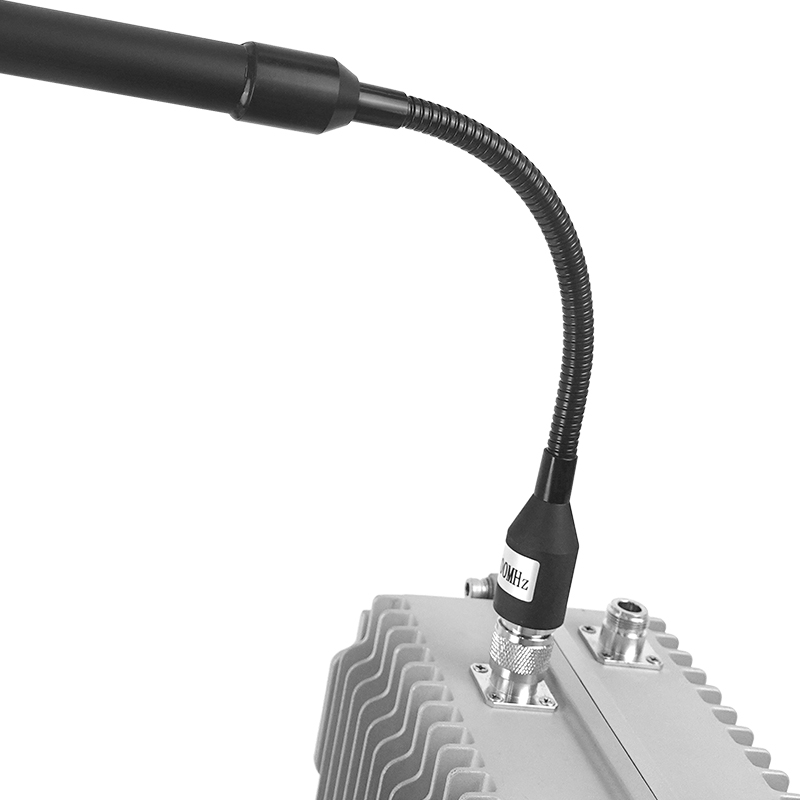

This 2.3G outdoor waterproof fiberglass gooseneck spring antenna has durable materials ,with a spring design, with 360degree coverage. It is suitable for wireless communication. The goosenck antenna allows to easy adjustment for various installation needs, adapting to different scenarios.
Type |
Fiberglass Antenna |
Frequency range |
2000-2300MHz |
V.S.W.R: |
<=1.8 |
Gain: |
8 Dbi |
Impedance |
50ohm |
Power: |
50W |
Connector type: |
SMA Male |
polarization |
Vertical polarization |
Horizontal Beamwidth |
360° |
Vertical Beamwidth |
35-85° |

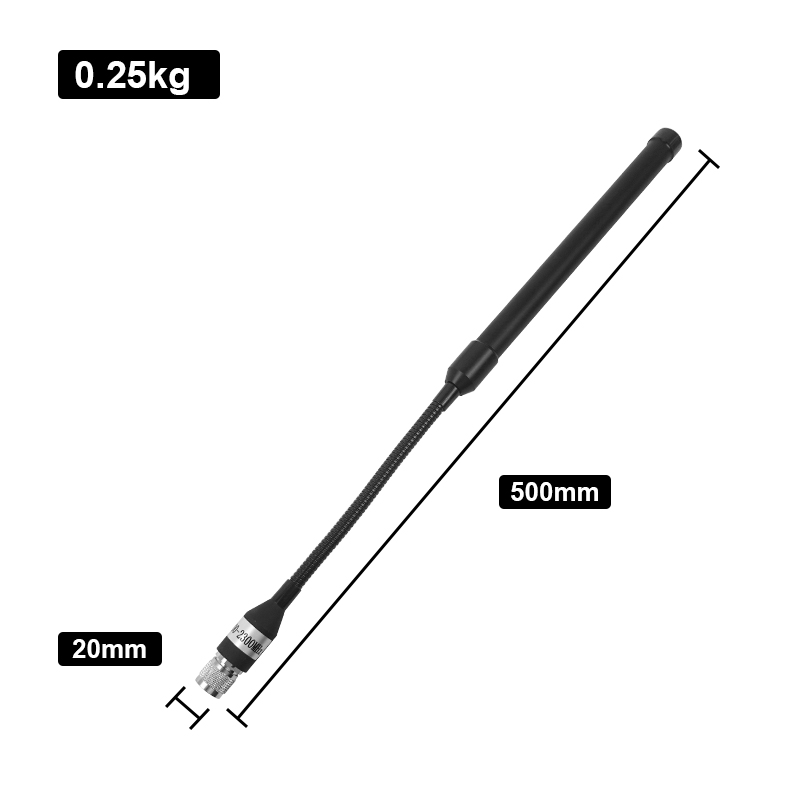

Dimensions-mm |
500*20mm |
Radome material |
Fiberglass |
1.Outdoor 360degree coverage

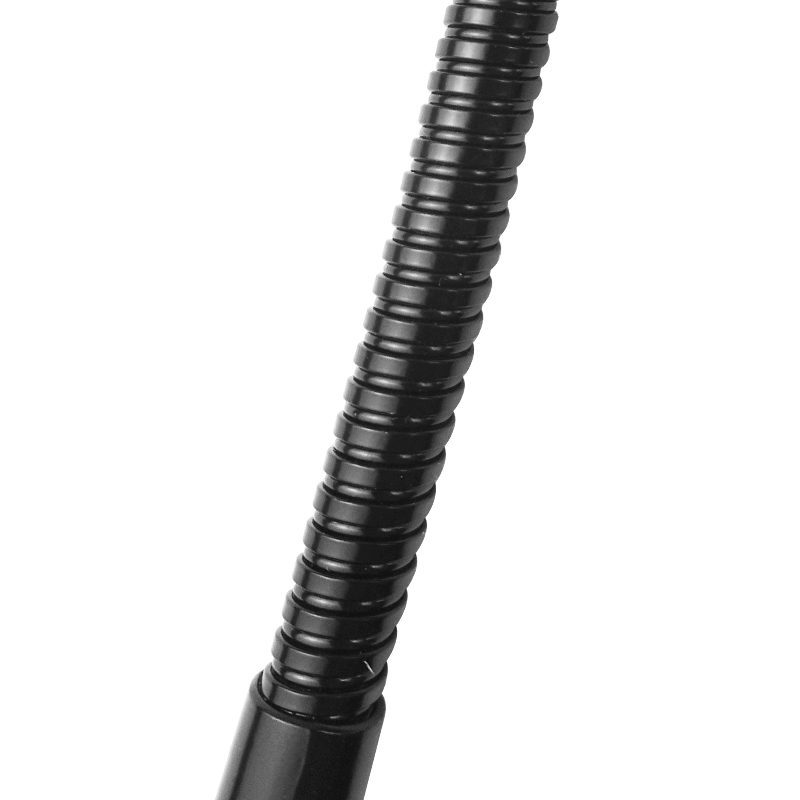

2.Flexible spring antenna
3.FRP protection grade IP67
4.Standard SMA connector
5.High gain, reliable signal transmission and reception.
