Which high power RF jamming module supports 2000-6000MHz for anti-drone projects?

● 2026-07-31 ● - ● Leave me a message

With the rapid proliferation of civilian and industrial drones, unauthorized drone flights have brought severe hidden dangers to airspace security, public safety and industrial confidentiality. Modern anti-drone projects require wide-frequency, high-stability and high-power RF jamming modules to cover mainstream drone communication and signal bands. Among numerous industry products, the High Power 50W RF Jamming Module 2000-6000MHz for Anti-Drone independently developed by RX Company has become a mainstream solution for professional anti-drone engineering. This article analyzes its core strengths, structural advantages and full specifications for system integrators and bulk purchasers.

1. Why 2000-6000MHz Wide Band Is Essential for Anti-Drone Projects

Most conventional drone jamming modules adopt narrow-band design, which can only target single or partial frequency bands, resulting in incomplete interception and low defense success rate. In contrast, the 2000–6000MHz ultra-wide frequency coverage fully adapts to the current mainstream drone signal standards, covering multiple core communication bands used by consumer-grade and industrial-grade drones.

This wide-band design solves two core pain points of anti-drone projects:

Full-frequency interception: Effectively shields drone remote control, image transmission and positioning signals within 2000–6000MHz, avoiding missing interception caused by frequency band deviation

Strong compatibility: Suitable for multi-type drone defense scenarios, no need to replace modules for different drone frequency standards

2. Core Advantages of RX 50W High-Power Anti-Drone RF Jamming Module

RX Company’s 50W RF jamming module is professionally optimized for industrial anti-drone scenarios, with outstanding power performance, stable operation and flexible customization capabilities, far exceeding ordinary civilian jamming modules.

2.1 High-power Stable Signal Output

50W high-power output: Matched with 47dB high gain, it emits strong and concentrated jamming signals to form an effective airspace defense barrier

Ultra-low output fluctuation: Output stability up to 1dB, ensuring continuous and uniform jamming effect without signal attenuation

High matching accuracy: The output connector VSWR ≤1.30, which reduces signal reflection and loss, and improves overall working efficiency

2.2 Unique Non-Digital Source Structure Design

Different from most digital jamming modules on the market, this product adopts no digital source structure

Effectively eliminates unnecessary signal interference, avoids frequency confusion and signal crosstalk during operation

Greatly improves the long-term operation stability of the module, reducing failure rate and maintenance cost

2.3 Flexible Customization & Simple Deployment

Support personalized customization: Adjustable frequency range and output power to meet the differentiated needs of different anti-drone projects

Intelligent switch control: High ON / Low Off enable control mode, convenient for system linkage and automatic control

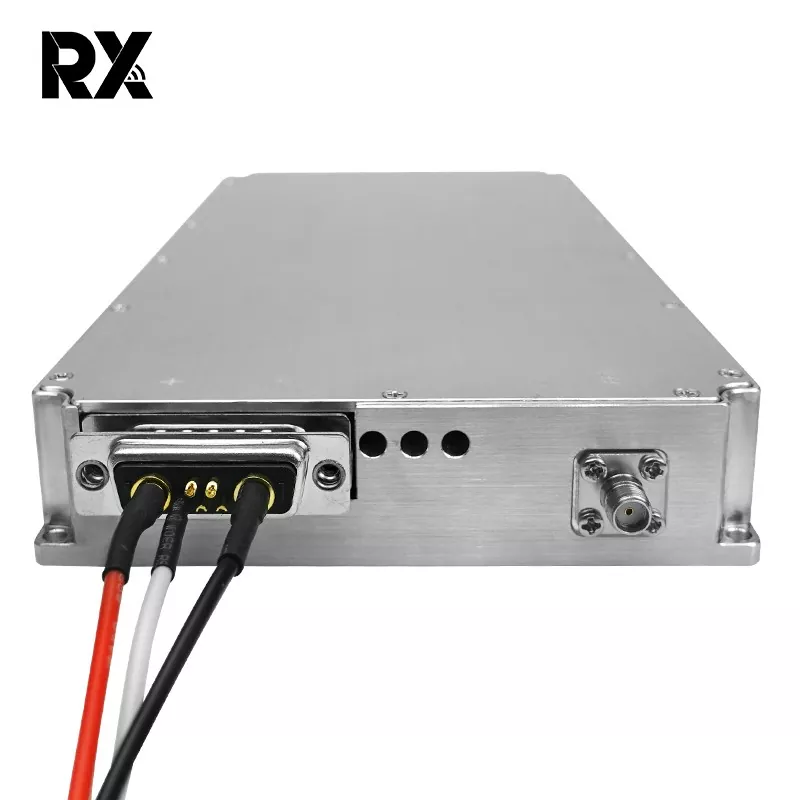

Easy installation & strong adaptability: Standard SMA connector and fixed mounting holes, supporting quick assembly of fixed stations, vehicles and mobile defense equipment

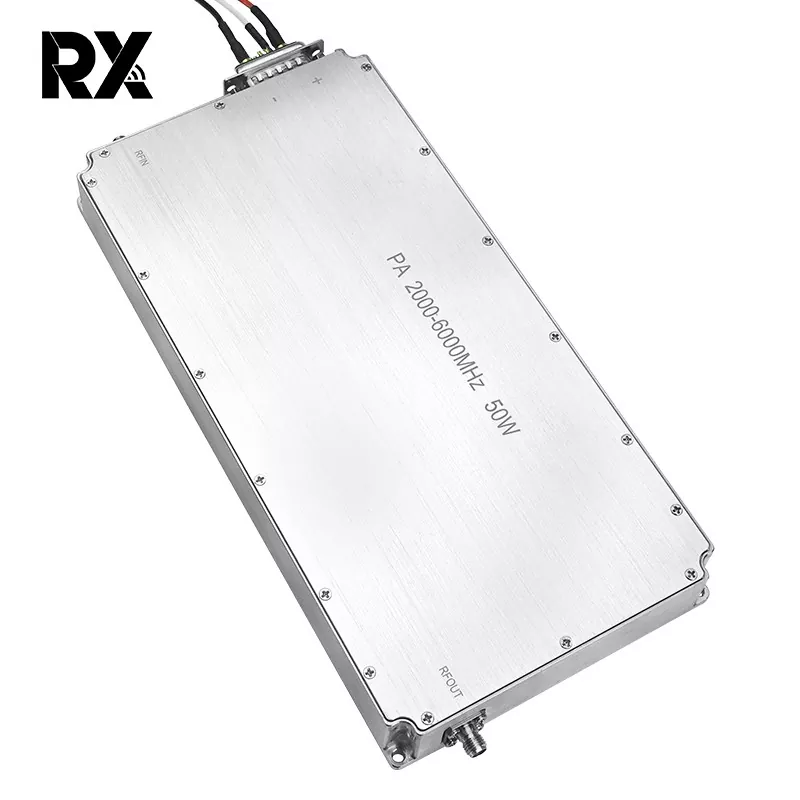

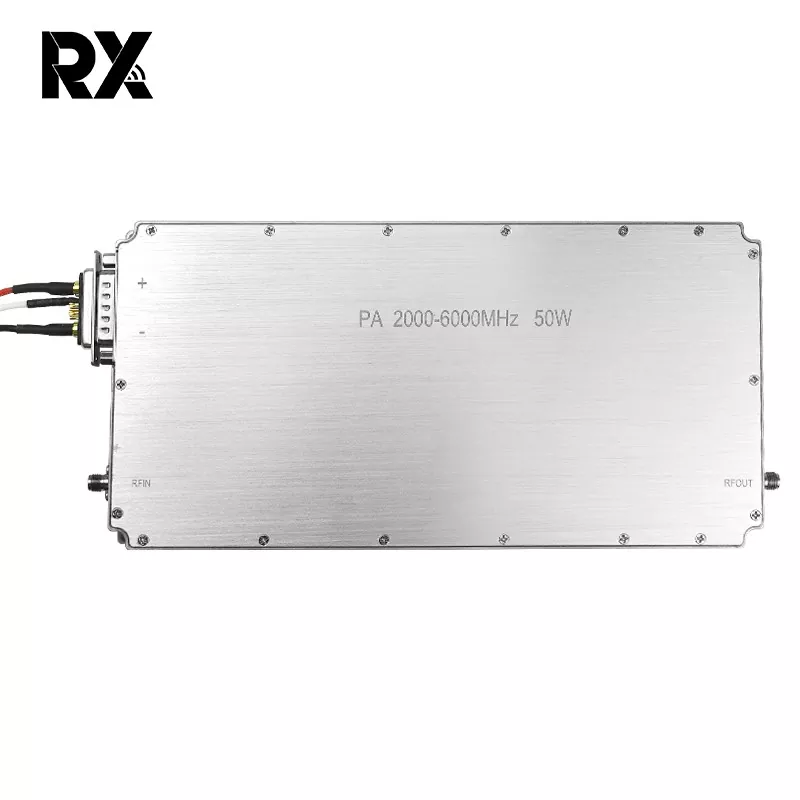

High Power 50W RF Jamming Module 2000-6000MHz for Anti-Drone

2.7 Durable Industrial-Grade Quality

Aluminum alloy shell: Wear-resistant, anti-corrosion and heat-dissipating, adapting to harsh outdoor environments

Wide temperature working range: Support normal operation at -40℃ to +65℃, suitable for high-temperature, low-temperature and extreme weather scenarios

Carefully selected internal components: Strict industrial-grade screening, ensuring long-term continuous stable operation

3. Complete Product Technical Specifications

No.	Item	Data	Unit
1	Frequency Range	2000-6000	MHz
2	Test Voltage	28	V
3	Working Current	10-13	A
4	Output Power	50	W
5	Gain	47	dB
6	Output Stability	1	dB
7	Connector Type	SMA	-
8	Output Connector VSWR	≤1.30 (No power and VNA test)	-
9	Power Supply Wire	Red+Black+Enable wire	-
10	Enable Control Mode	High ON Low Off	-
11	Outer Shell Size	23711026	mm
12	Mounting Hole Size	214*104	mm
13	Weight	1316	g
14	Working Temperature	-40~+65	℃
15	Outer Shell Material	Aluminum	-
16	Standard Input	5	-

4. Application Scenarios & Market Value

This 2000-6000MHz 50W RF jamming module is a high-cost-performance core component for professional anti-drone projects, widely applicable to multiple high-security scenarios:

Airspace security protection for scenic spots, stations, airports and government units

Confidentiality defense for industrial parks, military zones and key facilities

Mobile anti-drone defense for vehicles and field operation equipment

Customized anti-drone system supporting engineering projects

With reliable industrial-grade performance, wide-band full coverage and flexible customization services, this module has become the preferred supporting product for many engineering integrators, effectively solving the problems of incomplete jamming, unstable operation and poor compatibility of traditional anti-drone modules.

5. Conclusion

For modern anti-drone projects that require 2000-6000MHz full-band coverage and high-power stable jamming, RX Company’s 50W RF jamming module is the most reliable and cost-effective choice. It balances high power, wide frequency, stable performance and easy deployment, and supports personalized parameter customization, perfectly meeting the diversified construction needs of commercial, industrial and military anti-drone projects.

If you are looking for high-quality, factory-direct anti-drone RF jamming modules, RX Company provides stable supply, professional technical support and timely after-sales service for global customers. Welcome to contact us!
