High Power 50W RF Jamming Module 2000-6000MHz for Anti-Drone

This High Power 50W RF Jamming Module 2000-6000MHz for Anti-Drone specifically designed by RX company. And it cover the 2000-6000MHz frequency band, is a practical device for countering drones. This module has 50W output, it can emit a strong jamming signal. The 2000-6000MHz frequency band can covers many common communication and frequencies used by drones. We can accept customized the frequency range and out put. Module excellent performance and good use effect make them popular with customers.

Send Inquiry

Product Description

The module is solidly built, with carefully selected internal components, ensuring long-term operation. And it has no digital source structure. It can reduces unnecessary signal interference and makes the module run more stable. It is easy to install and suitable for scenarios requiring airspace security, High Power 50W RF Jamming Module 2000-6000MHz for Anti-Drone is a reliable aid, providing a proven solution for combating the potential risks posed by drones.

Product specification

No.	Item	Data	Unit
1	Frequency	2000-6000	MHz
2	Test voltage	28	V
3	Current	10-13	A
4	Output	50	W
5	Gain	47	dB
6	Output stability	1	dB
7	Connector	SMA
8	Output connector VSWR	≤1.30 (No power and VNA test)
9	Power supply wire	Red+Black+Enable wire
10	Enable Control	High ON Low Off

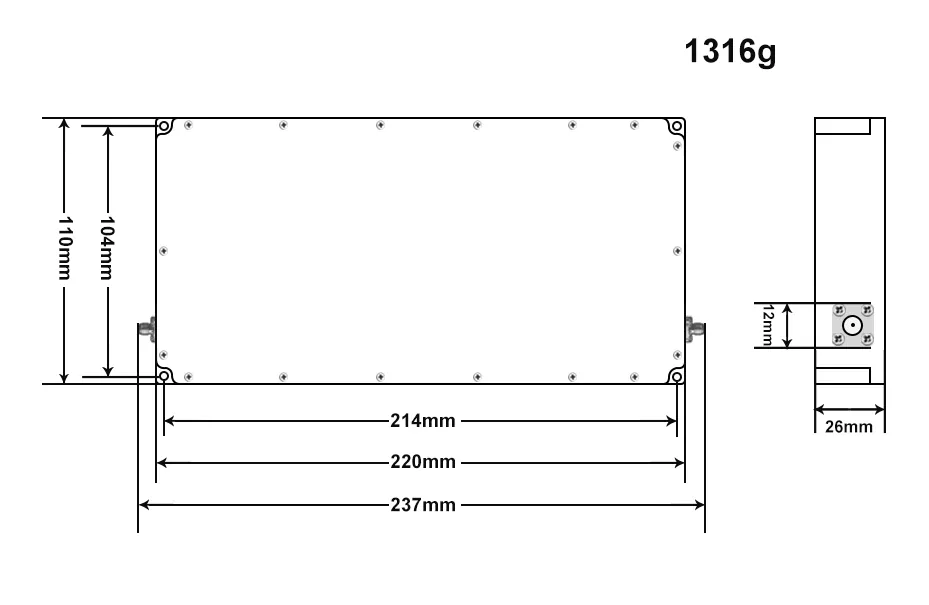

11	Out shell Size	23711026	mm
12	Mount hole	214*104	mm
13	Weight	1316	g
13	Work Temperature	-40~+65	℃
14	Out shell material	Aluminum
16	Standard input	5
