What are the different types of antennas used in wireless communication?

In modern wireless communication technology, antennas play an indispensable role as key components that connect devices to electromagnetic waves. Whether it is a smartphone, a Wi-Fi router, or a satellite communication system, the design and selection of antennas directly determine the signal transmission quality, coverage, and overall system performance.

1. Omni-directional Antenna

Omni-directional antennas can radiate signals evenly on the horizontal plane, forming a 360-degree coverage range, which is suitable for scenarios that require wide signal coverage, such as home Wi-Fi routers and mobile communication devices. Its advantages are simple installation and wide coverage, but the signal strength may be limited in long-distance transmission.

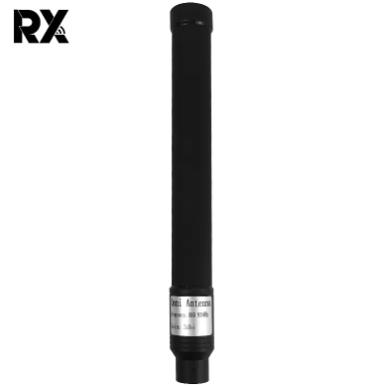

700-930MHz OMIN Fiberglass Antenna

2. Directional Antenna

Directional antennas focus signals in a specific direction and are suitable for point-to-point communication or scenarios that require high signal strength, such as wireless bridging systems and satellite communications. Common directional antennas include Yagi antennas and parabolic antennas. Yagi antennas are known for their high gain and directivity and are widely used in TV reception and radar systems.

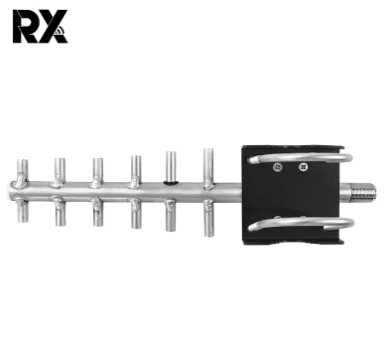

840-920MHz 10dBi Yagi Directional Antenna

3. PCB Antennas

PCB antennas are printed directly on circuit boards and are suitable for devices with limited space, such as IoT devices and wearable devices. FPC antennas are made of flexible materials and can adapt to complex shapes. They are widely used in mobile devices and sensor networks.

6 Band 5-18dBi Directional Anti drone PCB Antenna

4. Array Antennas

Array antennas consist of multiple antenna units. By controlling the phase and amplitude of each unit, high directivity and electronic beam steering are achieved. This type of antenna has important applications in radar systems and 5G communications, which can significantly improve signal coverage and quality.

Key factors in antenna selection

When selecting an antenna, the following factors should be considered:

Operating frequency: The antenna must support the operating frequency band of the device.

Gain: The higher the gain, the longer the signal transmission distance.

Installation environment: Internal antennas are suitable for devices with limited space, while external antennas are suitable for scenarios that require high gain.

As a core component of wireless communication, the type and design of antennas directly affect the performance of the communication system. By understanding the characteristics and application scenarios of different antennas, users can choose the appropriate antenna according to their needs to optimize the communication effect. In the future, with the advancement of technology, antennas will play an important role in more fields and promote the innovation of wireless communication technology.
