700-930MHz OMIN Fiberglass Antenna

This 700-930MHz OMIN Fiberglass Antenna is specifically designed for anti-drone applications by RX. It can provide 360-degree omni directional signal coverage so that drones can be detected and jammed in a timely manner, no matter which direction they approach from.

Send Inquiry

Product Description

The 700-930MHz OMIN Fiberglass Antenna has a simple design and is easy to install and can be quickly integrated into existing anti-UAV systems. Simple to operate, easy to start without specialized technicians. It is able to provide strong signaling support for your anti-drone system. We can choose our products to make your anti FPV drone work more efficient and reliable.

700-930MHz OMIN Fiberglass Antenna Specification

Electrical Specifications
Frequency Range	700-800MHz(customized)
Gain(dBi)	3.5±0.5dBi
VSWR	≤2
Polarization	virtical
Horizontal Beamwidth(0) Vertical Beamwidth(0°)	360° 55±5°
ovality(dB)	≤±2dB
Input Impedance(Ω)	50Ω
Maximum input power(W)	50W

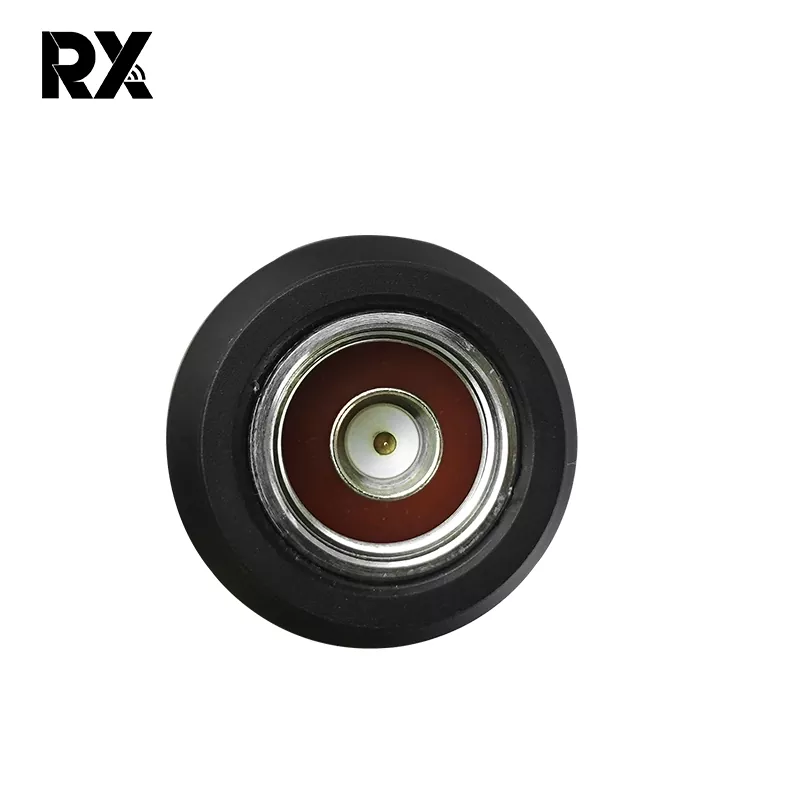

Input connector type	Sma-K
Mechanical Specifications

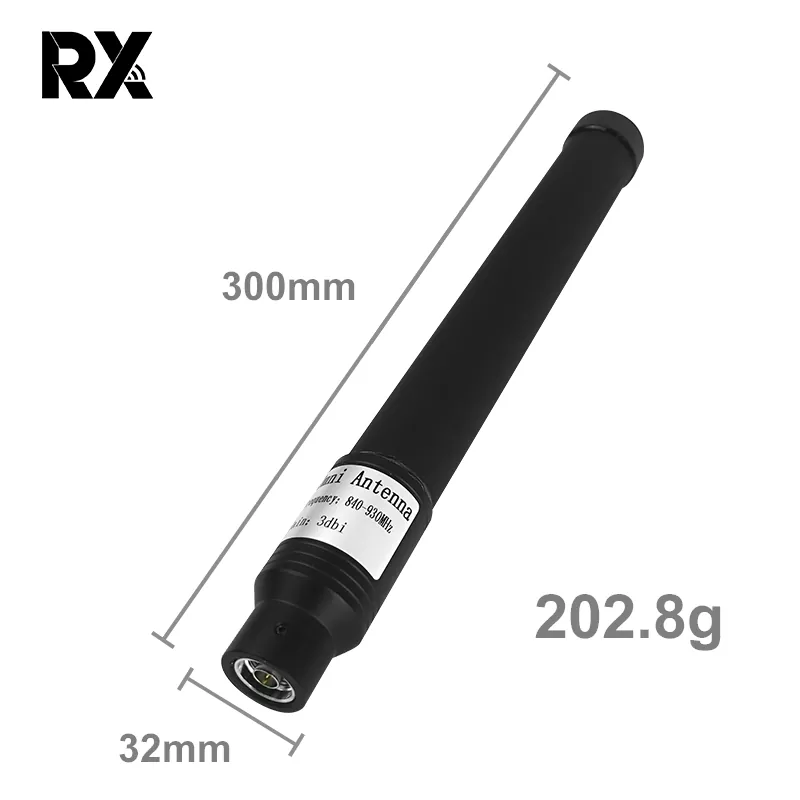

Dimensions- mm(Height/Width/Depth)	32*300mm
Packing size(mm)	400350220mm(20PCS)
Antenna weight(kg)	1KG
Rated Wind Velocity(m/s)	31m/s
Operational Humidity(%)	10-95
Radome Color	Black
Radome material	fiberglass
Operating temperature(℃)	-40～55
Installation Method	Machine mount
