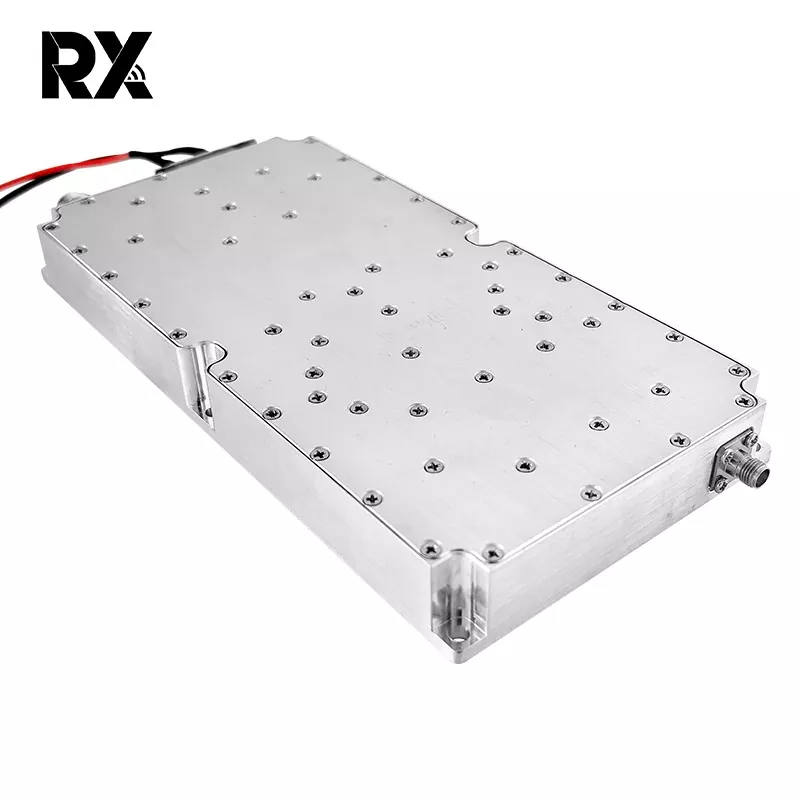

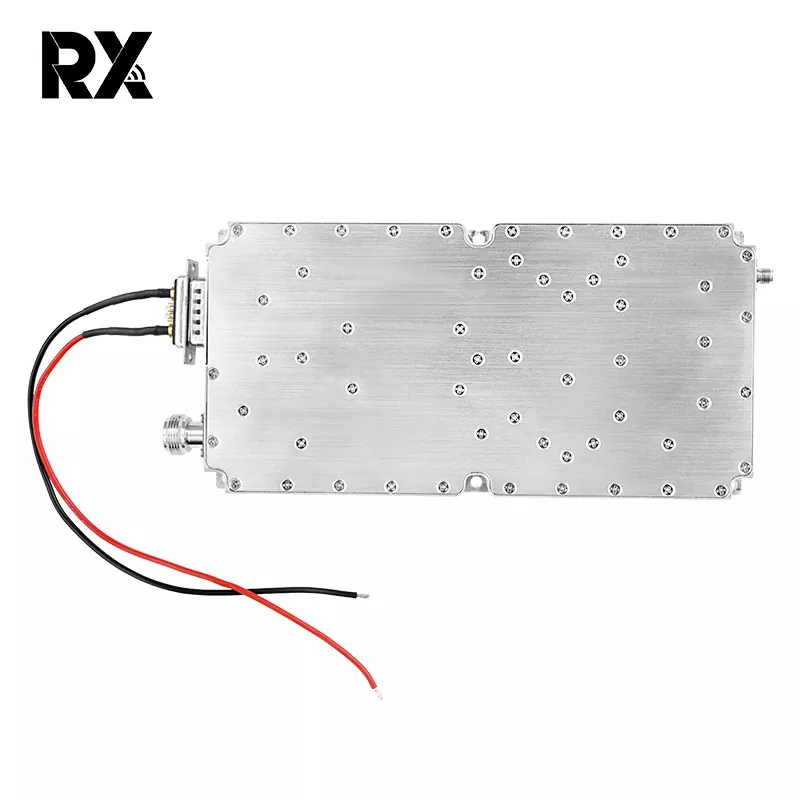

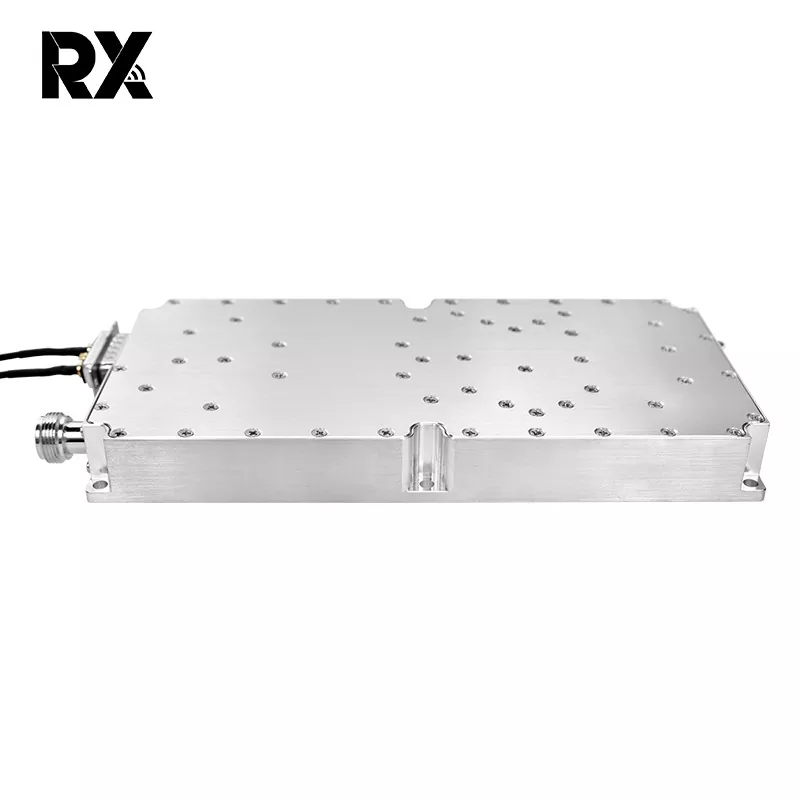

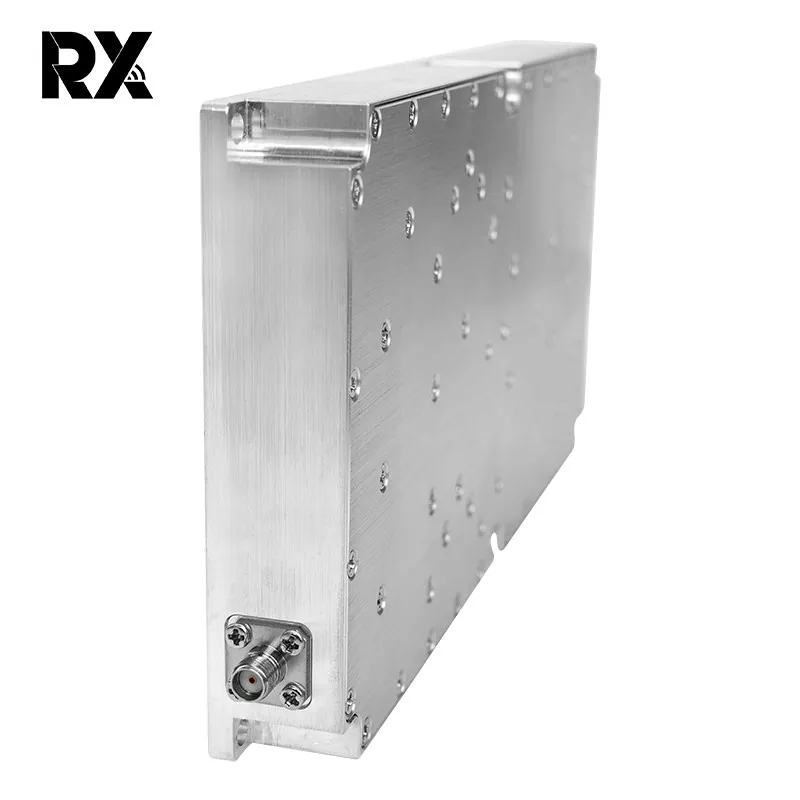

Wide band 50W No Digital Source Jammer Module 1000-6000MHz

The Wide band 50W No Digital Source Jammer Module 1000 - 6000MHz operates in the 1000 - 6000MHz frequency range, delivering a robust solution for signal control demands. With a 50W output power, it effectively suppresses signals within its broad coverage. The module has wide bandwidth, good flatness, sufficient wattage features.It usually use in communication field ,radar and drone FPV defense. It can suitable for application: large conference venues, infantry units, military security forces.

Send Inquiry

Product Description

The wide frequency span means it can target a broad spectrum of wireless communications, from common mobile networks to emerging high - frequency signals. Wide band 50W No Digital Source Jammer Module 1000-6000MHz is easy to install and has a strong interference effect. RX is a professional China antenna manufacturer and supplier, if you are looking for the best antenna with low price, consult us now!

Product specification

No.	Item	Data	Unit
1	Frequency	1000-6000	MHz
2	Test voltage	28-32	V
3	Current	6	A
4	Output	50	W
5	Gain	47	dB
6	Output stability	1	dB
7	Input stability	0-10	dB

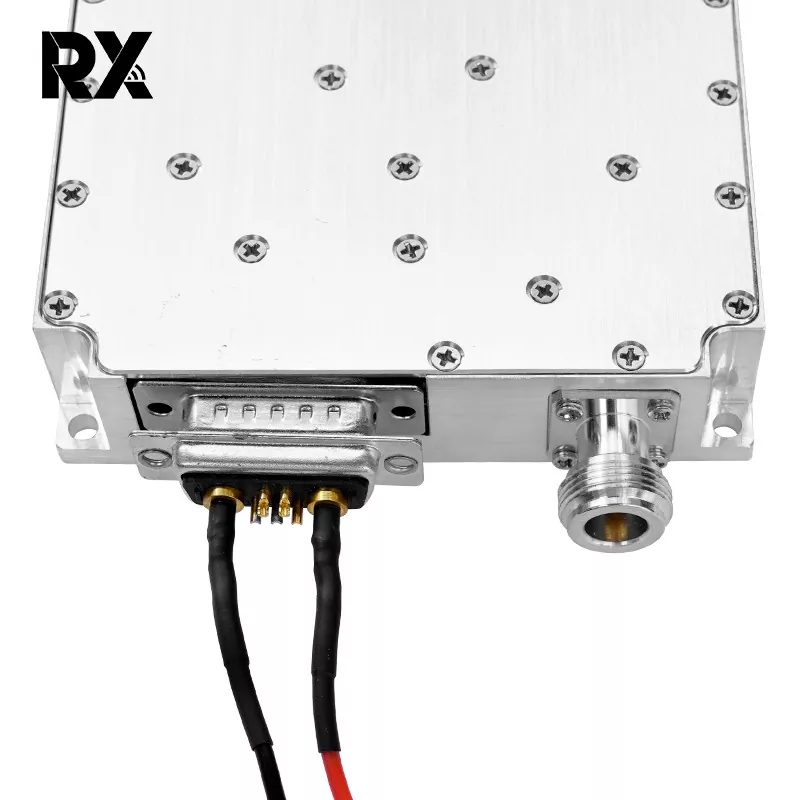

8	Connector	F/ Female
9	Output connector VSWR	≤1.30 (No power and VNA test)

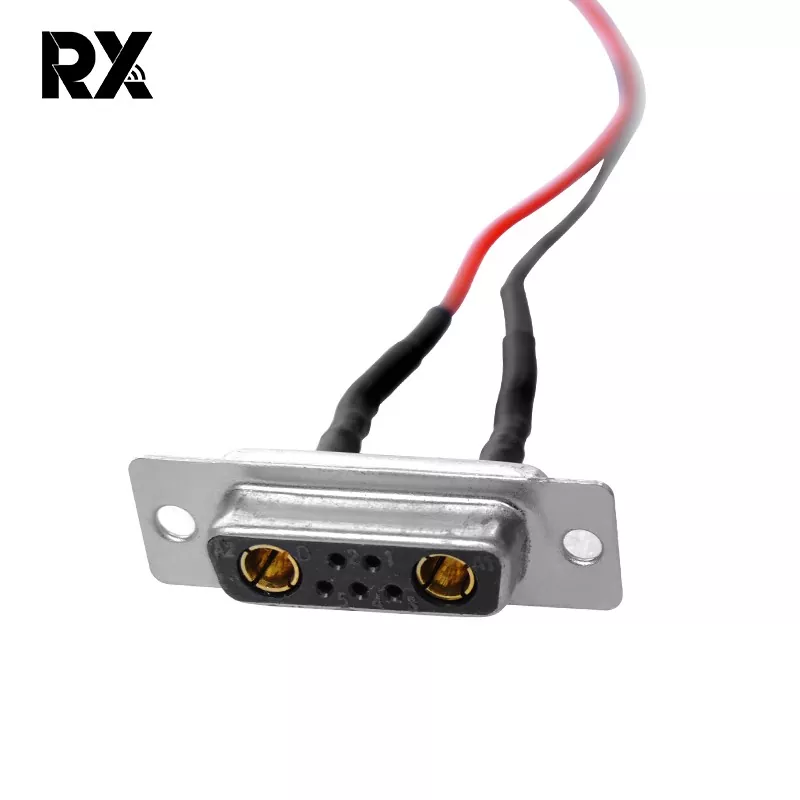

10	Power supply wire	Red+Black+Enable wire
11	Enable Control	High ON Low Off

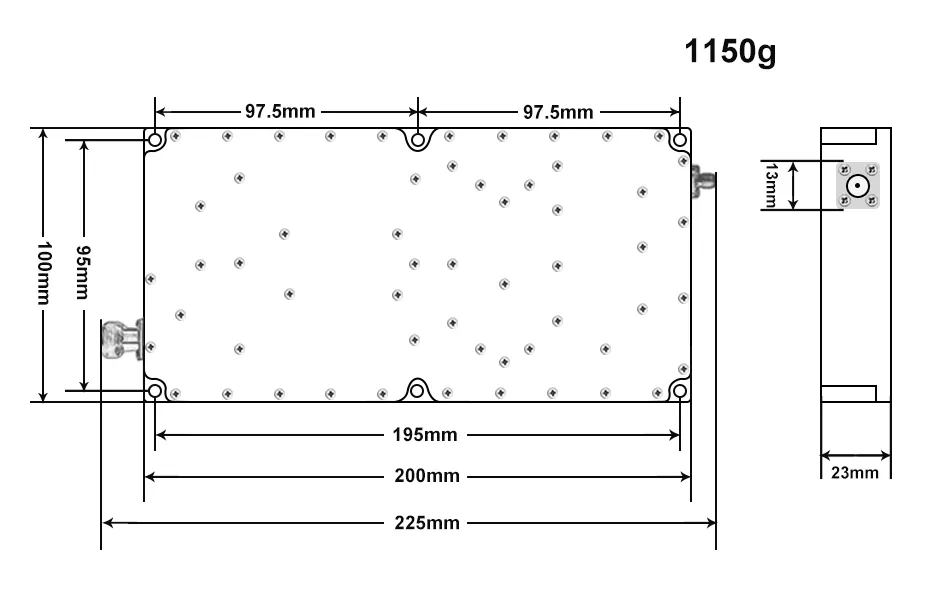

12	Out shell Size	20010023	mm
13	Mount hole	195*100	mm
14	Weight	1150	g
15	Work Temperature	-40~+65	℃
16	Out shell material	Aluminum
17	Vibration need	Car loadOK
