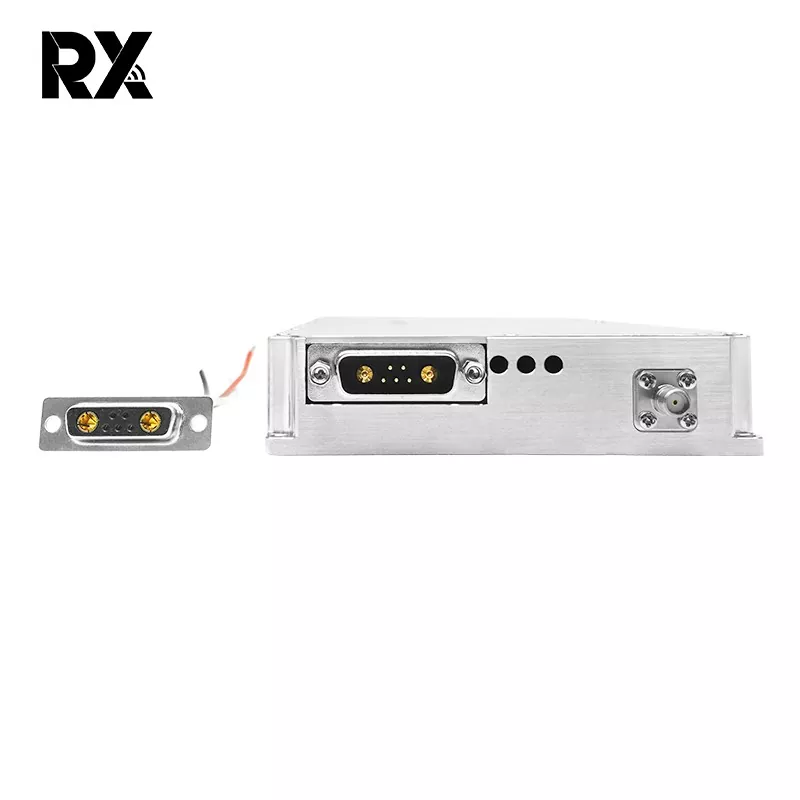

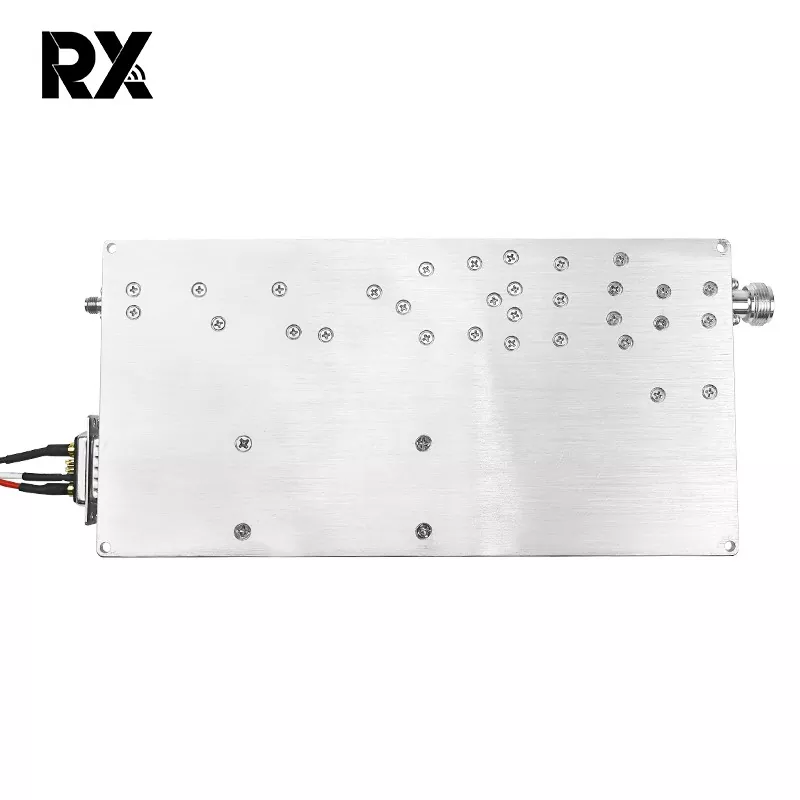

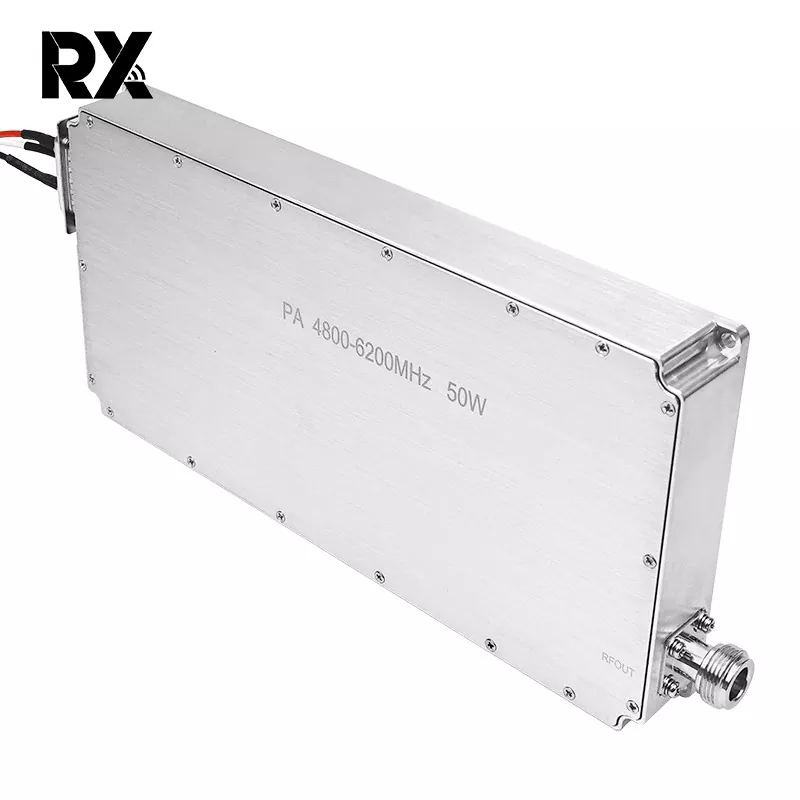

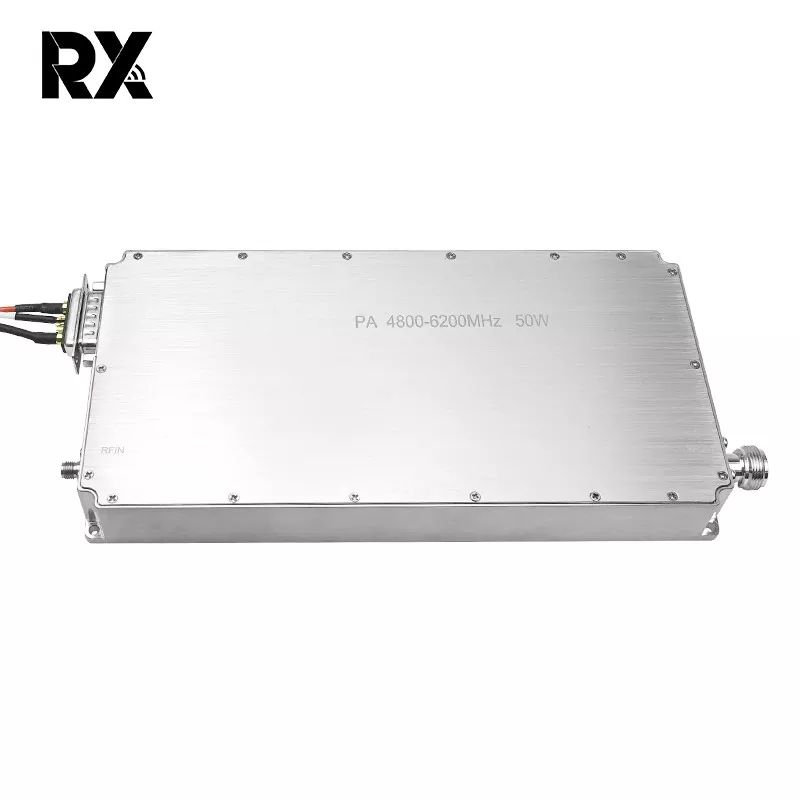

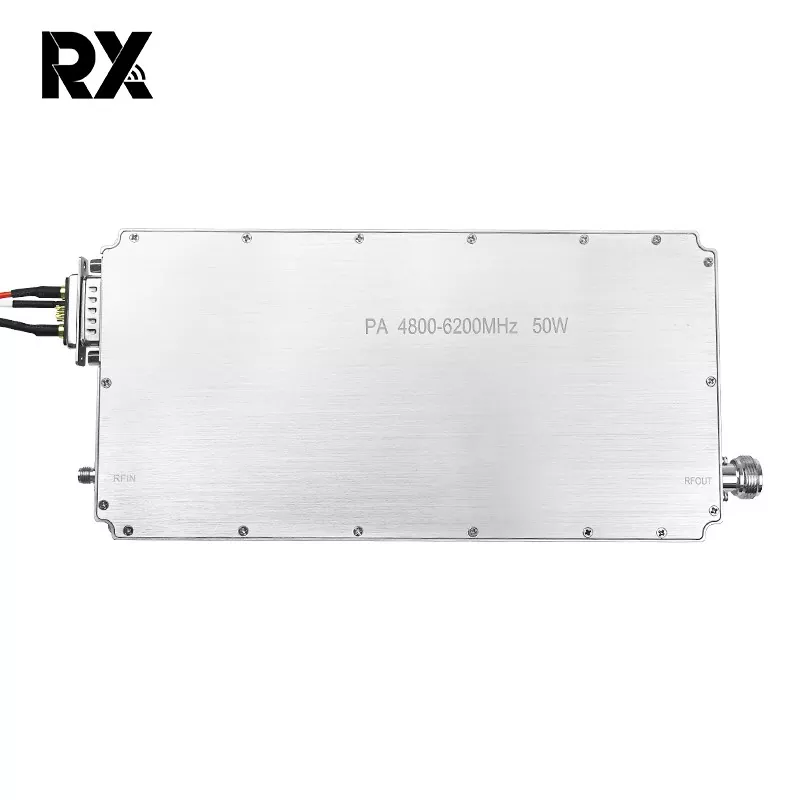

Utra band 50W 4800-6200MHz RF amplifier drone jammer module

This is a specially designed RF amplifier module for disrupting drone communication and control signals. It works in the 4800-6200MHz ultra-high frequency band, outputs 50W high-power RF signals. Utra band 50W 4800-6200MHz RF amplifier drone jammer module can effectively cut off the connection between the drone and the remote controller, forcing the drone to return, hover or land. TeXin upholds the principles of quality first and customer priority. We warmly welcome your inquiries through letters, calls or on-site visits for business cooperation. We promise to offer you excellent services all the time.

Send Inquiry

Product Description

The Ultra Band 50W RF amplifier drone jammer module, working in the 4800-6200MHz band, excels at amplifying weak interference signals to the needed power. Made of high-quality materials with advanced tech, it's highly stable and reliable. Its main use is in air defense of key areas like military bases and border regions. By jamming drone signals, Utra band 50W 4800-6200MHz RF amplifier drone jammer module protects against enemy drones for reconnaissance, surveillance, or attacks.

Product specification

No.	Item	Data	Unit
1	Frequency	4800-6200	MHz
2	Test voltage	28	V
3	Current	3.6	A
4	Output	50	W
5	Gain	47	dB
6	Output stability	1	dB
7	Connector	N / Female
8	Output connector VSWR	≤1.30 (No power and VNA test)
9	Power supply wire	Red+Black+Enable wire
10	Enable Control	High ON Low Off

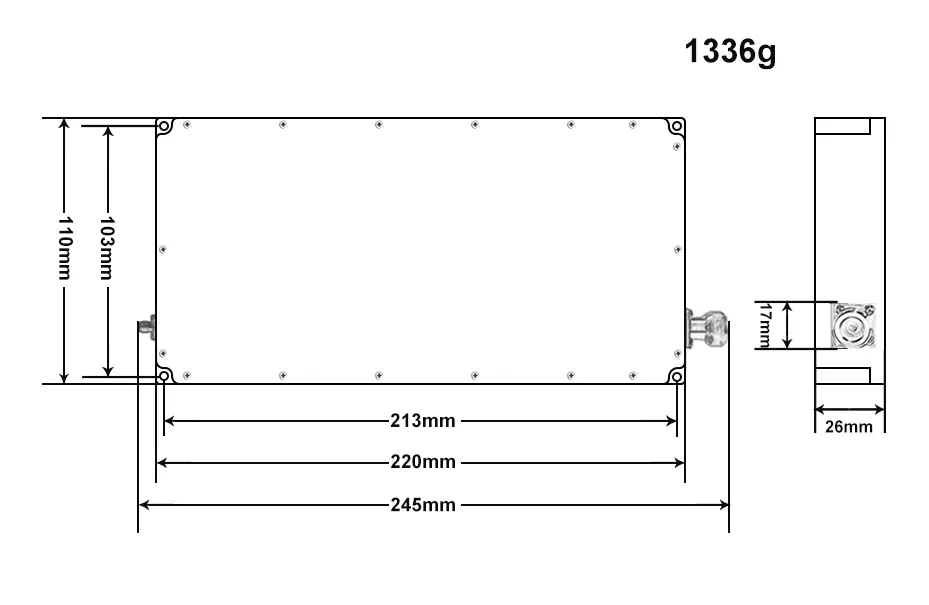

11	Out shell Size	20611021mm	mm
12	Mount hole	199*110	mm
13	Weight	1366	g
14	Work Temperature	-40~+65	℃
15	Out shell material	Aluminum
16	Vibration need	Car loadOK
