Ultra-Wideband 1000-6000MHz High-Power 100W Power Amplifier

Ultra-Wideband 1000-6000MHz High-Power 100W Power Amplifier is an RF module. A single module can cover 1–6 GHz, eliminating the need for traditional multi-band switching circuits, significantly reducing system size and complexity. Suitable for scenarios involving frequency agility, frequency hopping, or broadband interference.

Send Inquiry

Product Description

Ultra-Wideband 1000-6000MHz High-Power 100W Power Amplifier

This module utilizes GaN technology, achieving 30% less heat dissipation than LDMOS at the equivalent 100W power, achieving true high power and low heat dissipation, thus extending the module's lifespan. Furthermore, we have added temperature protection, load protection, overvoltage protection, and overdrive protection to the circuit board, eliminating the need for external protection functions and greatly increasing operational efficiency.

Unlike conventional narrowband frequencies, ultra-wideband (1000-6000MHz) demands higher technical and component quality standards to achieve its ultra-wideband, high-power, high-reliability characteristics. Ultra-Wideband 1000-6000MHz 100W power amplifier has demonstrated outstanding performance in modern multi-band communications, EMC testing, electronic warfare, and anti-drone systems.

Specification of 1000-6200MHz100W Power Amplifier（TC=25℃）

No.	Description	Symbol	Min	Typ		Max	Unit	Remark
1.	Operating Frequency	BW	1000			6200	MHz
2.	Input Power	Pin		2			dBm
3.	Output Power CW	Psat	50.5	51		52.5	dBm	Continuous Wave
4.	Power Gain	Gp	48.5	49		50.5	dBm	@ Pin=2 dBm
5.	Power Gain Flatness	△Gp		±1.5			dB	@ Pin=2 dBm
6.	Input Return Loss	S11		-15			dB
7.	Operating Voltage	Vdc	28	28		32	V
8.	Current Consumption	A		17		21.5	A	@ Pout=110~180W
9.	RF Connector Input		SMA, Female

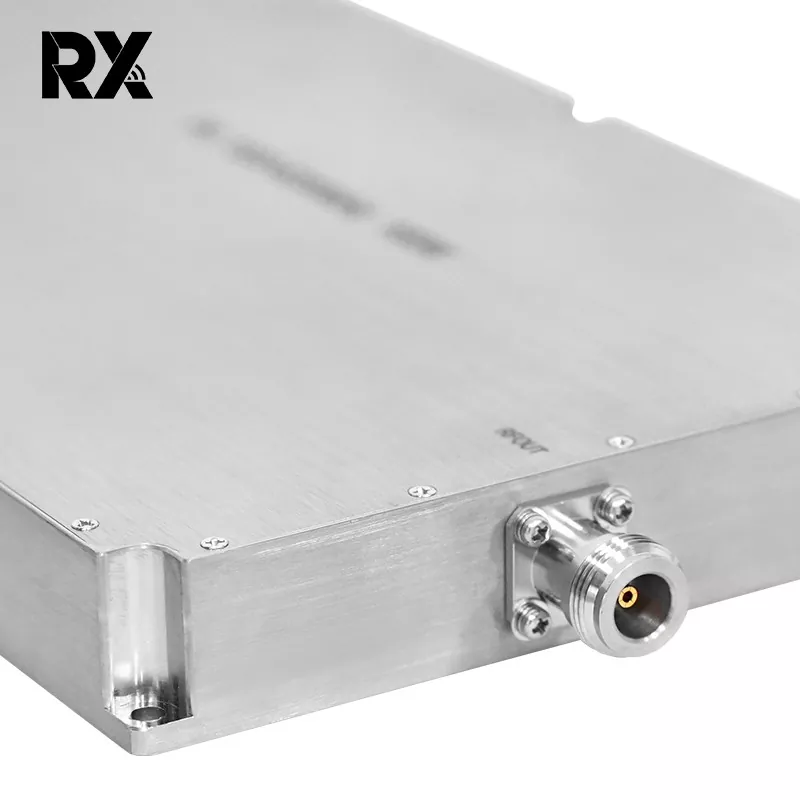

10.	RF Connector Output		N, Female
11.	Weight			1.9		2	Kg
12.	LengthWidthHeight		25015025			mm
13.	Max Input Power	PinMax	≤10			dBm

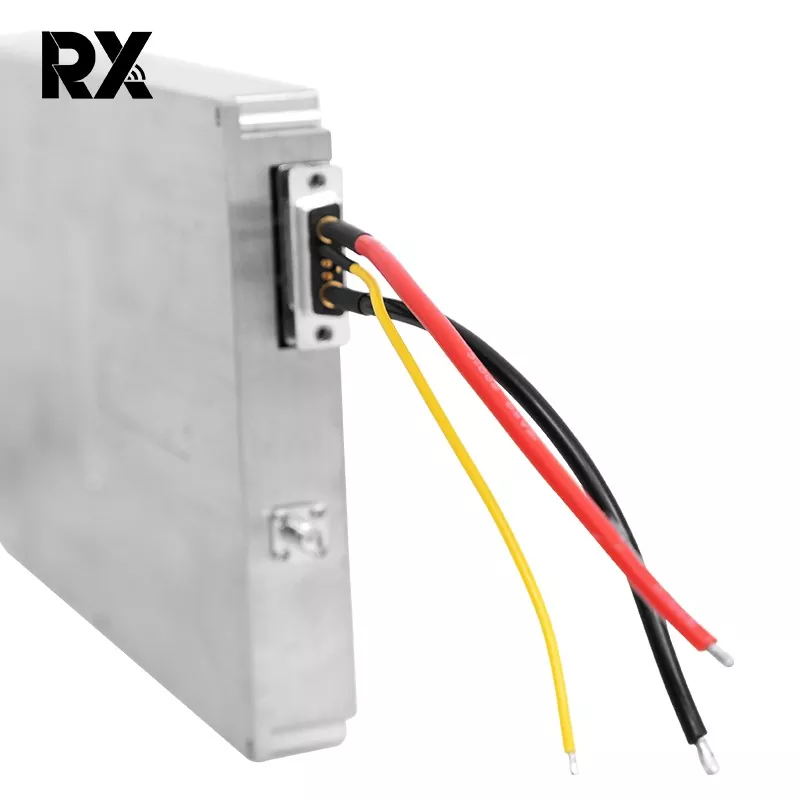

14.	Interface Definition (7W2 Female)	VDD	A1		28Vdc
		GND	A2		Ground
		Overcurrent protection	2		Normal operation :0V Overcurrent protection:+5V			Overcurrent protection@25A
		Over-temperature protection	2		Normal operation :0V Over-temperature protection:+5V			Over-temperature
		Enable	3		5V~Vdd:ON 0V:OFF			protection@100℃
		GND	4		Ground
		State	5		Normal operation :0V State protection:+5V
