Ultra Band WiFi 5G Signal Jammer Power Amplifier 50W is a high-performance RF power amplifier module designed for high-frequency signal jamming and shielding. The module covers the ultra-wideband frequency range and is compatible with WiFi 6, 5G communications and other high-frequency wireless signals. It is suitable for signal shielding needs in special scenarios. The quality of the modules produced by RX is guaranteed. We can see that RX’s products play an important role in both military and civilian fields.
Its 50W RF output power ensures efficient signal jamming capability and can achieve large-scale coverage in complex environments. The module adopts advanced heat dissipation technology and compact design to ensure stability and reliability under long-term high-load operation, making it an ideal choice for signal shielding equipment. Ultra Band WiFi 5G Signal Jammer Power Amplifier 50W is suitable for signal shielding in special scenarios, such as military, security, examination rooms, conference venues, etc., to meet diverse needs.
No. |
Item |
Data |
Unit |
1 |
Frequency |
4900-6000 |
MHz |
2 |
Test voltage |
28 |
V |
3 |
Current |
4.0 |
A |
4 |
Output |
50 |
W |
5 |
Gain |
47 |
dB |
6 |
Output stability |
1 |
dB |
7 |
Connector |
N / Female |
|
8 |
Output connector VSWR |
≤1.30 (No power and VNA test) |
|
9 |
Power supply wire |
Red+Black+Enable wire |
|
10 |
Enable Control |
High ON Low Off |
|
11 |

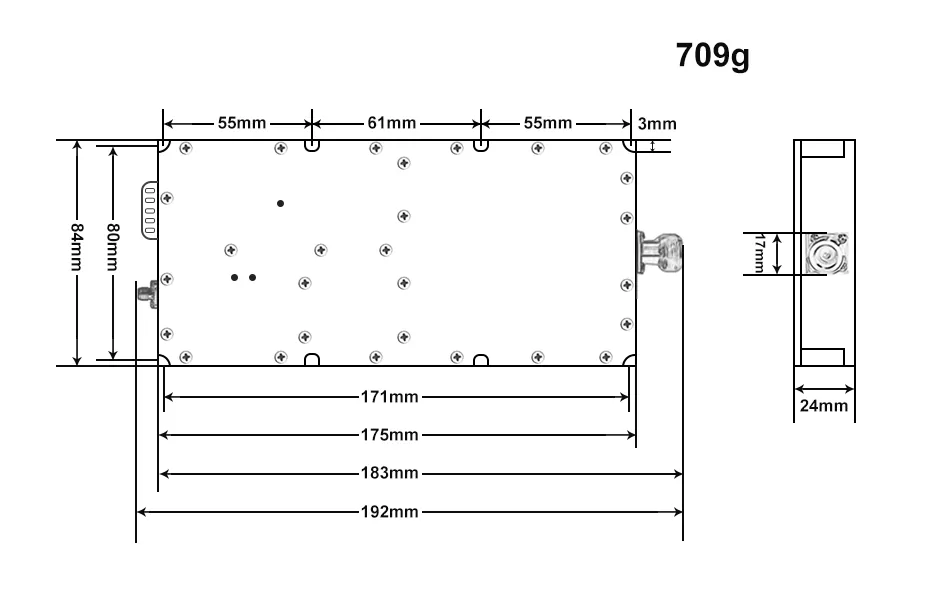

Out shell Size |
175*84*24 |
mm |
12 |
Mount hole |
175*80 |
mm |
13 |
Weight |
709 |
g |
14 |
Work Temperature |
-40~+65 |
℃ |
15 |
Out shell material |
Aluminum |
|
16 |
Vibration need |
Car loadOK |
|
17 |
Standard input |
0-10 |
dB |
