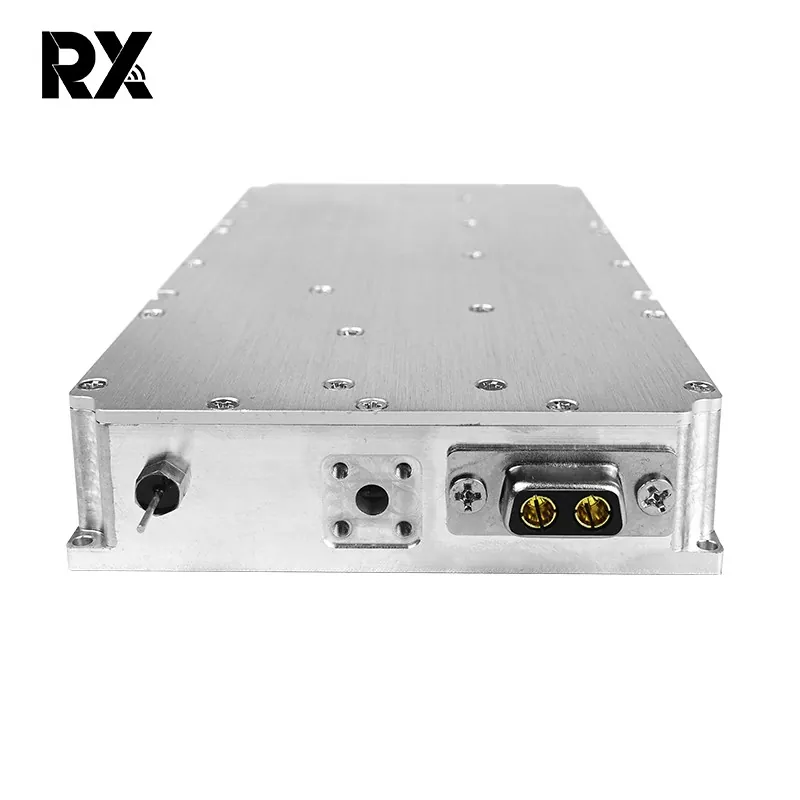

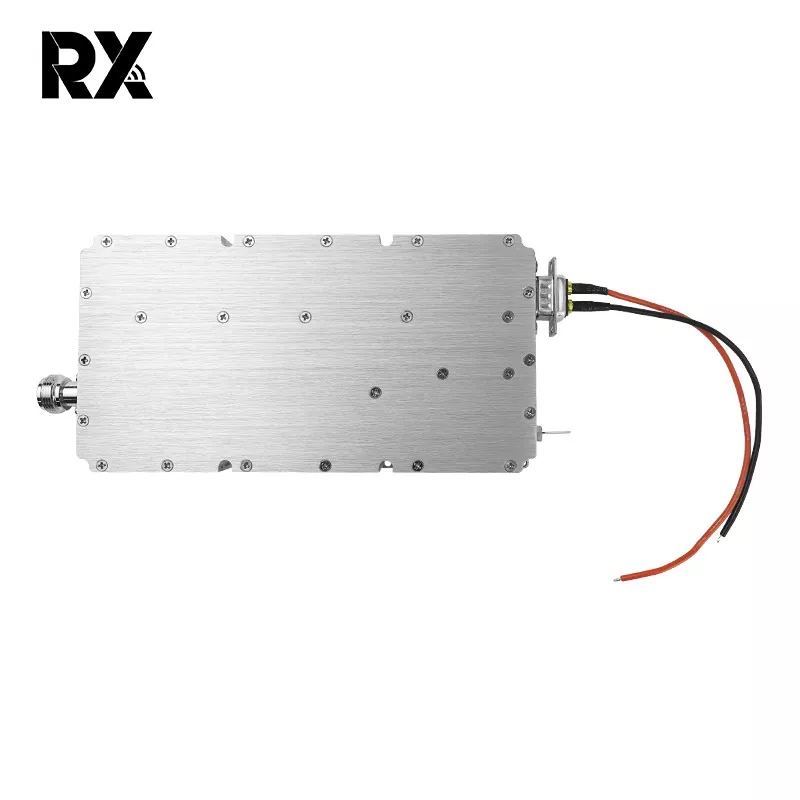

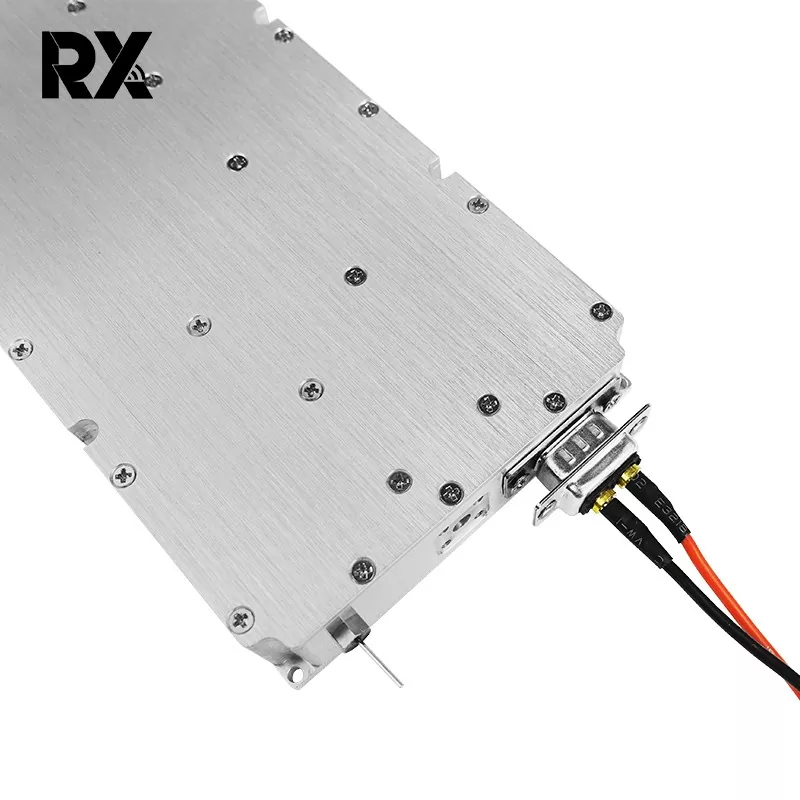

Ultra Band 100W 700-2700MHz UAV FPV Signal Drone Shield Module

This module is an over-band drone FPV signal protection module with a power of 100W and can operate in the frequency range of 700-2700MHz. It is mainly used in the FPV system of drones. Ultra Band 100W 700-2700MHz UAV FPV Signal Drone Shield Module may be used to enhance signals, filter interference, etc. to ensure the stable transmission of FPV signals during the flight of drones, and provide drone operators with clear and stable real-time images and control signals to achieve precise flight control.

Send Inquiry

Product Description

As a protection module, it may use advanced filtering, shielding and other technologies, which can effectively resist external electromagnetic interference, ensure the purity and stability of the FPV signal, and improve the quality of the image and control signal during the flight of the drone. It can operate in the frequency range of 700 - 2700MHz, covering multiple common drone communication frequency bands. It can adapt to drone FPV systems in different frequency bands and has strong versatility and compatibility.

Product specification

2.4GHz100W RF Power Amplifier Specification
No.	Item	Data	Unit	Notes
1	Frequency	700-2700	MHZ	customized
2	Work Temperature	-20~+70	℃
3	Max Output Power	100	W
4	Input power	5	dBm	0-10dbm optional Regular type with VCO inside no need input
5	Work Voltage	24-28	V
6	Max Gain	50	dB
7	Max Current	10	A
8	Impedance	50Ω

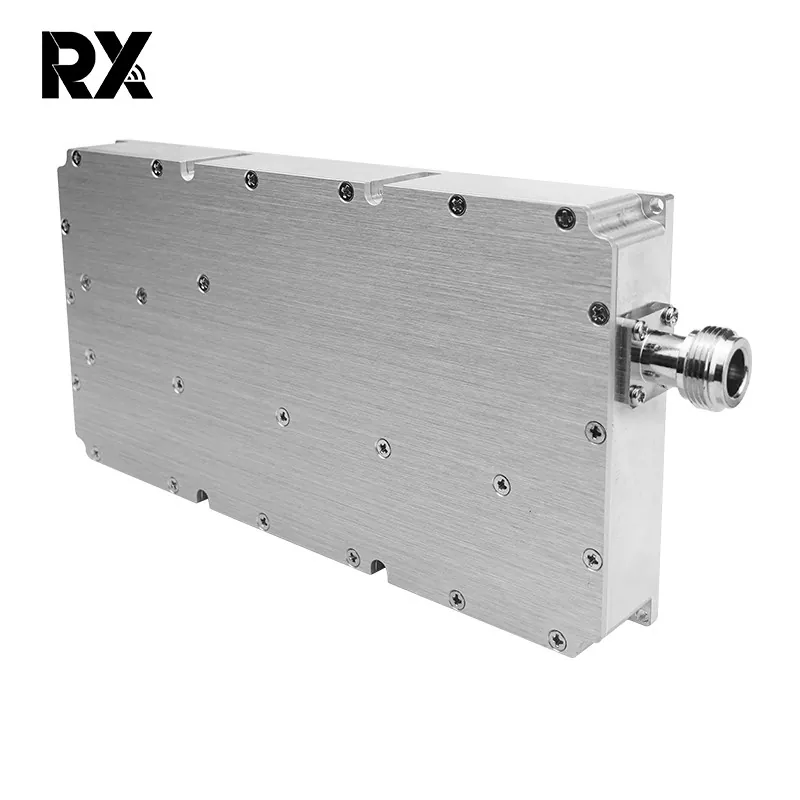

9	Output Connector	N/F		Customized
10	Power Amplifier Efficiency	45		when Max Output
11	Switch Control	high low level current	V	24-28V OrCustomized
12	Standing Wave Protection	OK
13	Temperature Protection	75°	℃

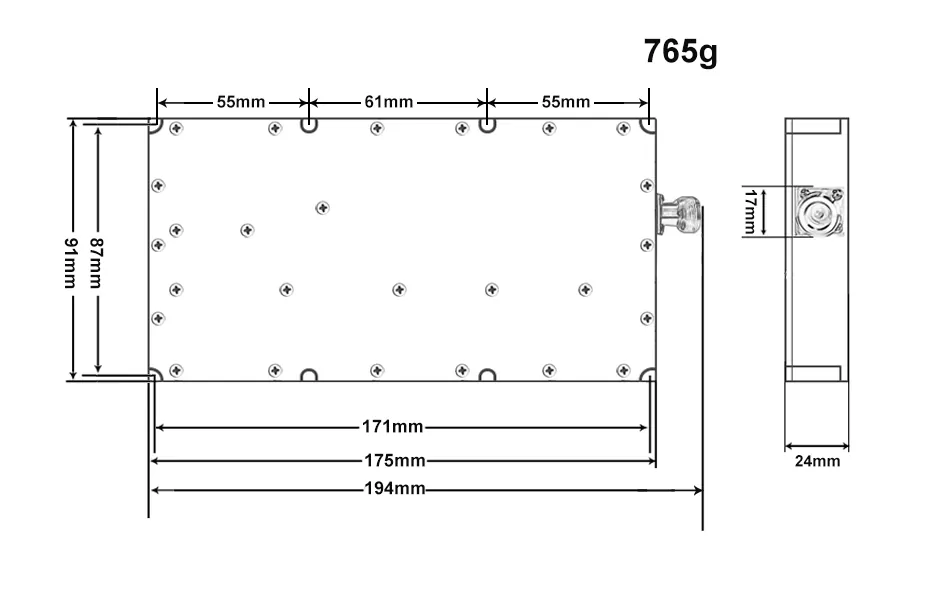

14	Size	1949124	mm
15	Weight	0.765	Kg
