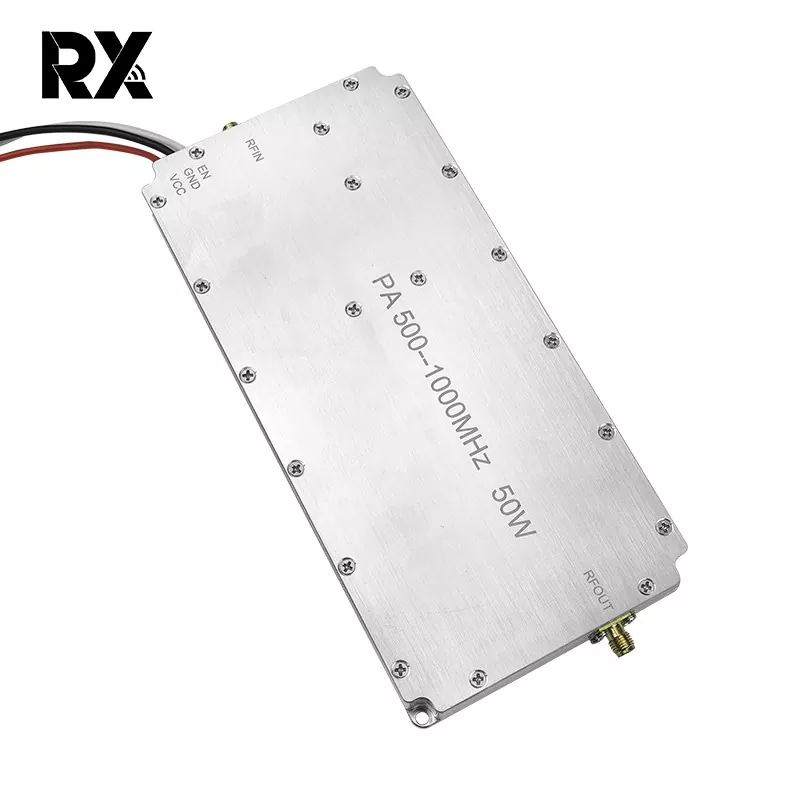

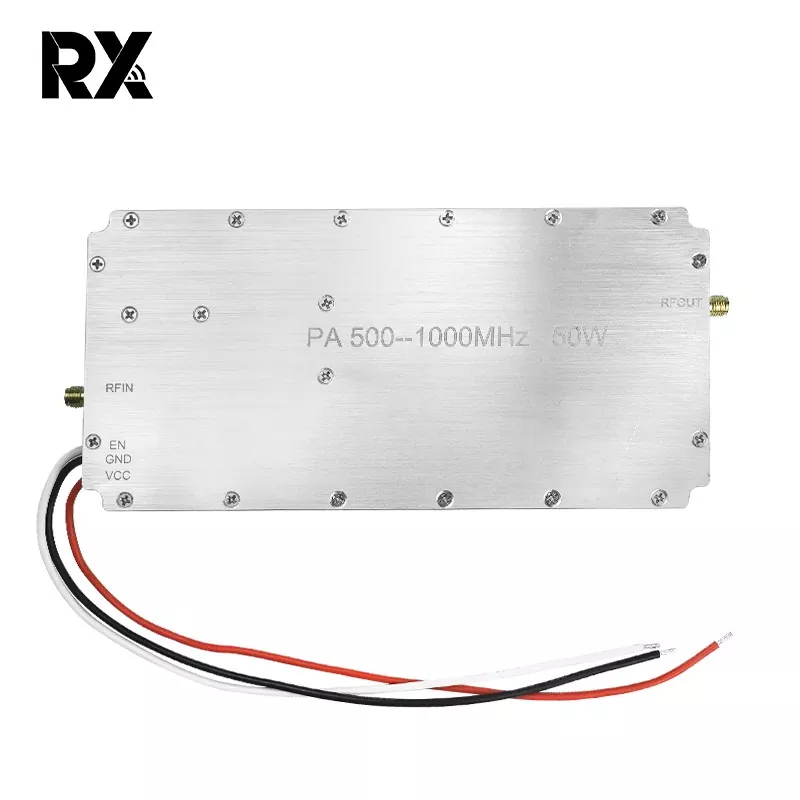

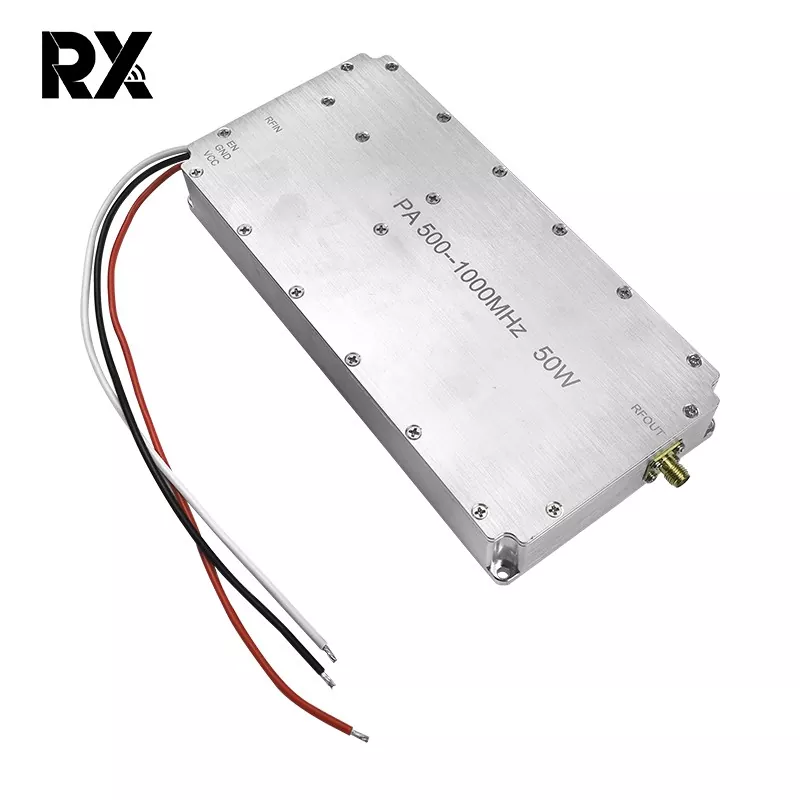

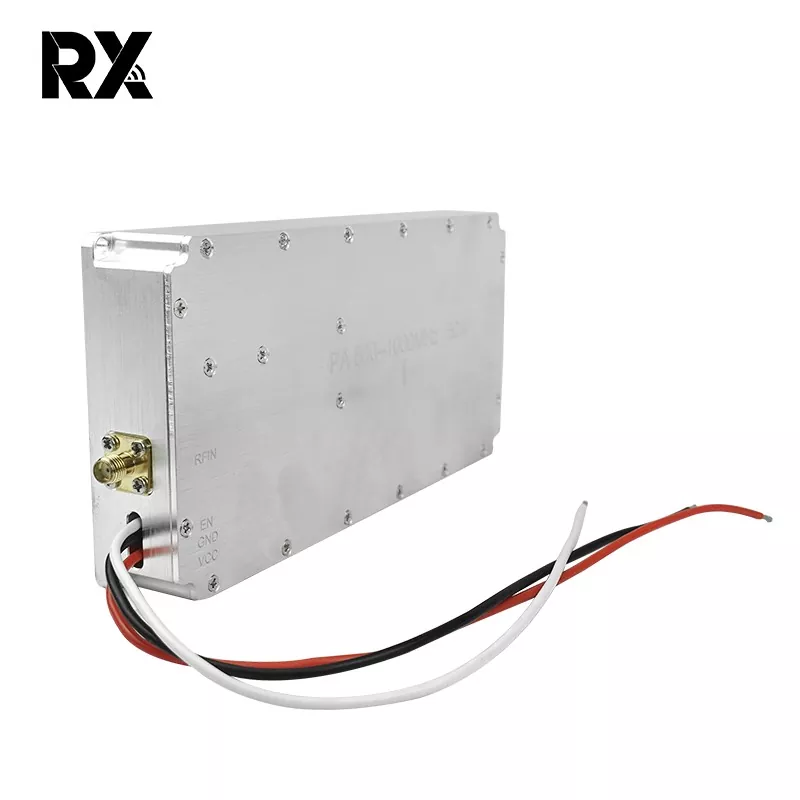

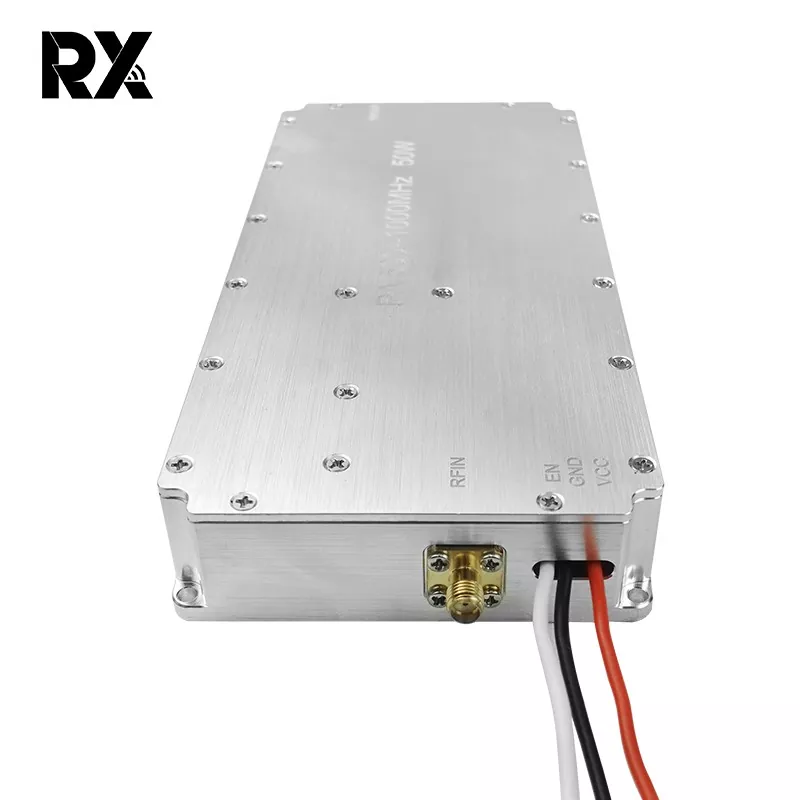

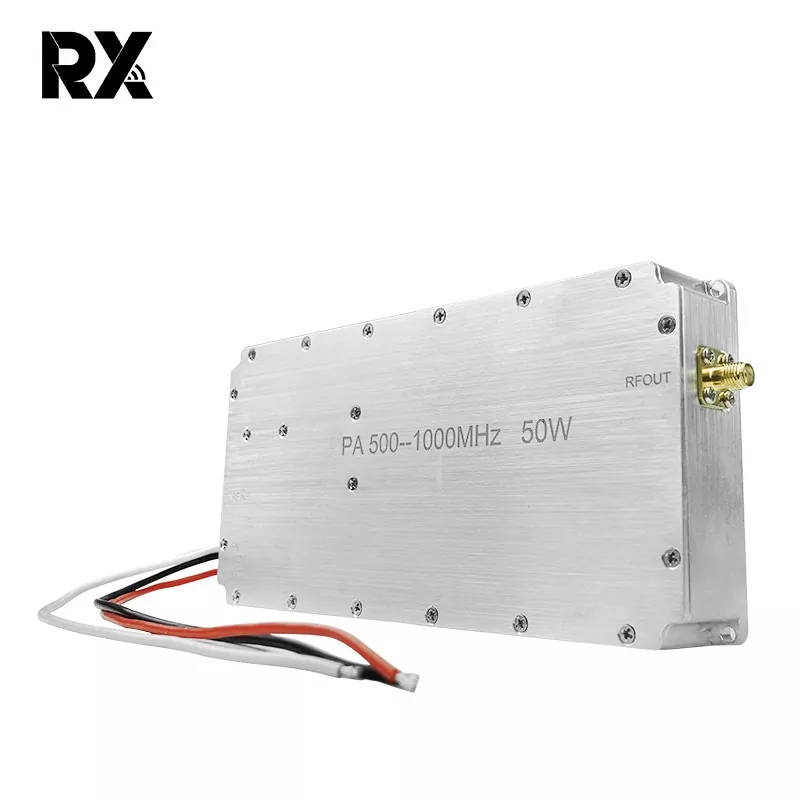

Professional 50W RF Jammer Module No Digital Source 28V for FPV

This Professional 50W RF Jammer Module No Digital Source 28V for FPV operates from a 28V power supply, making it ideal for Military and Event Security applications. With a 50W output power, it provides a strong jamming signal. It can cover the wide frequency band of 500-1000MHz, and many signals that need to be interfered with are within this range. This module has no digital source reduces unwanted signal interference, ensuring more stable module operation without compromising jamming effectiveness due to complex digital circuitry.

Send Inquiry

Product Description

This module frequency range is 500-1000MHz, it can customized the frequency range and output, we can meet you requirements. Professional 50W RF Jammer Module No Digital Source 28V for FPV has no digital source structure, it can interfere the signal. The 28V power supply design is compatible with the power systems of many FPV-related equipment. You can use it just by connecting it without having to worry about power adapter issues.

Product specification

No.	Item	Data	Unit
1	Frequency	500-1000	MHz
2	Test voltage	28	V
3	Current	10-13	A
4	Output	50	W
5	Gain	47	dB
6	Output stability	1	dB
7	Connector	SMA
8	Output connector VSWR	≤1.30 (No power and VNA test)
9	Power supply wire	Red+Black+Enable wire
10	Enable Control	High ON Low Off

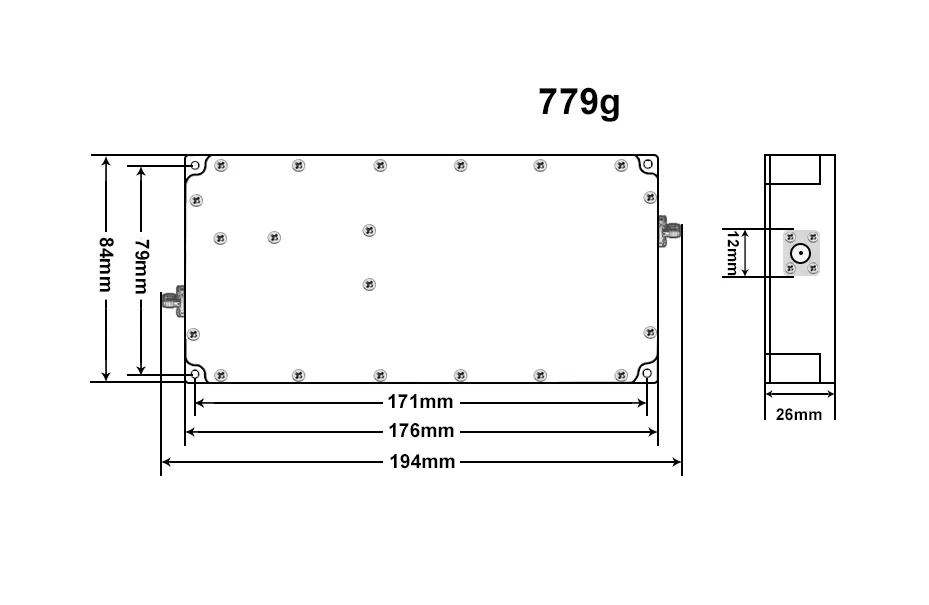

11	Out shell Size	1948426	mm
12	Mount hole	176*84	mm
13	Weight	779	g
14	Work Temperature	-40~+65	℃
15	Out shell material	Aluminum
16	Standard input	5

Product Feature

1. No digital source and amplifier power module

2. Frequency band and power can be customized

3. Mini size and easy to carry and install

4. Support 28V voltage

5. SMA connector or customized connector
