This New Design 400-700MHz Dual-bands Power Module 50W is designed to meet today's complex and evolving wireless communication needs. With excellent performance and innovative design, this power module shows great potential in many application fields. New design 400-700MHz Dual- bands power module 50W has an output power of up to 50W, the module performs excellently in signal transmission. Whether it is long-distance signal coverage or maintaining signal stability in complex environments, it can handle it with ease. The quality of the modules produced by RX is guaranteed, and their excellent performance and good use effect make them popular with customers.
The New Design 400-700MHz Dual-bands Power Module 50W an important role in the low-frequency band coverage of 5G networks. This power module can be used in conjunction with 5G base station equipment to help effectively transmit low-frequency band 5G signals, achieve wide-area coverage and deep coverage, improve the overall performance of 5G networks, and provide strong support for the full development of 5G services.
No. |
Item |
Data |
Unit |
1 |
Frequency |
400-700 |
MHz |
2 |
Test voltage |
28 |
V |
3 |
Current |
4.2 |
A |
4 |
Output |
50 |
W |
5 |
Gain |
47 |
dB |
6 |
Output stability |
1 |
dB |
7 |
Connector |
SMA / Female |
|
8 |
Output connector VSWR |
≤1.30 (No power and VNA test) |
|
9 |
Power supply wire |
Red+Black+Enable wire |
|
10 |
Enable Control |
High ON Low Off |
|
11 |

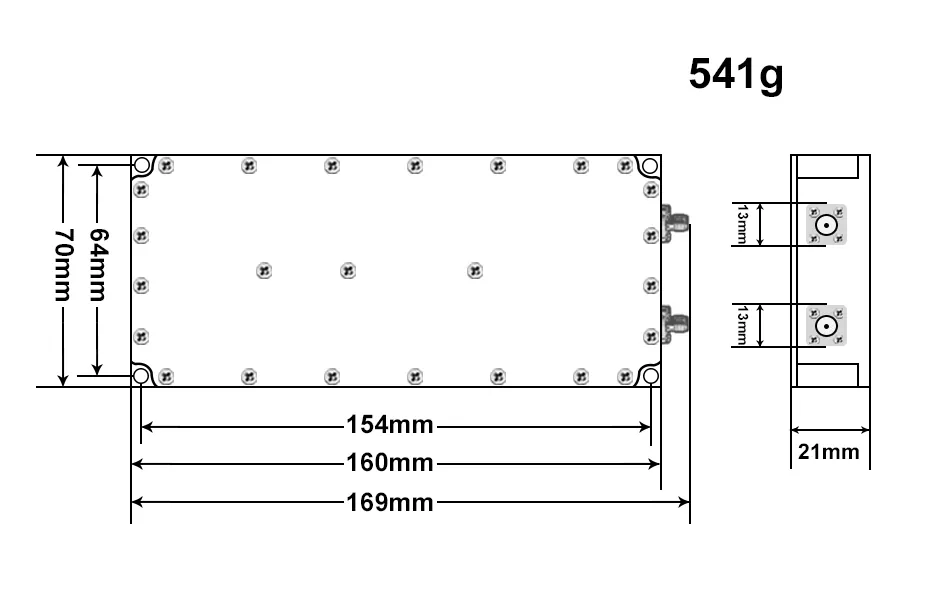

Out shell Size |
169*70*21mm |
mm |
12 |
Mount hole |
160*64 |
mm |
13 |
Weight |
541 |
g |
14 |
Work Temperature |
-40~+65 |
℃ |
15 |
Out shell material |
Aluminum |
|
16 |
Vibration need |
Car loadOK |
