Long Range Drone Detector 700MHz-6.3GHz Frequency Detection

This Drone Detector is a long-range detection device designed specifically for drone security and control. It covering an ultra-wide frequency range of 700MHz-6.3GHz, it can accurately capture communication and navigation signals from civilian, industrial, and some specialized drones, Long Range Drone Detector 700MHz-6.3GHz Frequency Detection provides an active drone intrusion warning solution for scenarios requiring large-scale airspace protection, effectively mitigating the security risks posed by illegal drone operations.

Send Inquiry

Product Description

This Long Range Drone Detector 700MHz-6.3GHz Frequency Detection covers an ultra-wide frequency range of 0.7-6.3GHz (including the key image transmission bands of 2.4-2.5GHz and 5.15-5.95GHz), supports 360° omnidirectional detection, and can accurately identify FPV analog image transmission and OFDM high-definition image transmission type drones. For every 6dB increase in antenna gain, the detection distance can be double.

Product specification

Drone detection	It can scan, receive and identify common civilian drone image transmission signals, demodulate parameters of signals that meet certain characteristics, and send warning data to the host computer.
Black and White List	Accurately identify drone models and unique electronic fingerprints to achieve a black-and-white list, and simultaneously identifyID≥220
Expand multi band strike	Capable of expanding the interference capability of multiple frequency bands, covering the vast majority of drones on the market
Networking	The system can network multiple devices through a cloud server, which can observe the online/abnormal status of each device. It can remotely control the device through a mobile terminal (mobile IPAD), including but not limited to viewing the device system operation interface, receiving alarm information, viewing black and white lists, andupdate online functions
Omnidirectional detection	The product has the ability to handle horizontal 360°omnidirectional interference

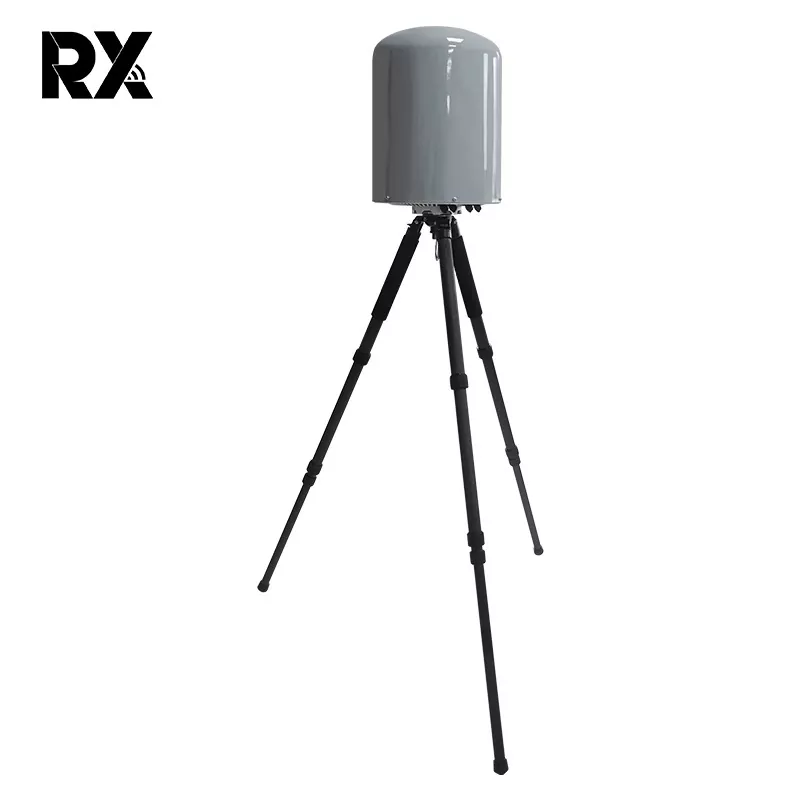

Portability	Installed with fixed poles and tripods, it can meet the protection needs of long-term deployment in key areas;Can also use a tripod to quickly erect to meet the protection needs of temporary tasks such as important meetings and group activities
Safety	With user management function, divided into administrators and users, and encrypting data to ensure user data security.

Regular detection range	5km（Good radio environment）
Detection frequency bands	0.7-6.3GHz/ 2.4-2.5GHz/5.15-5.95GHz
Identify Type	FPV Simulation Image Transmission OFDM HD Image Transmission
Detection angle	360°
Sensitivity	Better than -96dBm (FPV signal Bw=6MHz) Better than -90dBm (OFDM signal Bw=20MHz)
Detection distance	＞2km (OFDM)＞4km (FPV 5.8G/2W) (The measured reliable distance when using a 2dBi gain receiving antenna. The actual antenna gain increases by 6dB, and the detection distance can be doubled.)
UART Parameters	115.2kbps/TTL3~5V compatible
Power supply	DC 4.75 ~36V
Power consumption	＜3.5W
Weight	25kg
Volume	330mm x330mm x330mm
Protection grade	IP65
Working temp	-40 ~ +70℃

Product Feature

1. 700-6300MHz full air space detection

2. Detecting distance around 5km(Increasing antenna gain can extend the detection distance)

3. Can extract drone signals under noise interference level (SNR -10 ~ -15dB)

4. Analysis DJI FPV date Including pilot location, blacklist and whitelist,connect to Bluetooth to update the firmware

5. Provide FPV drone video image output,connect to Bluetooth to update the firmware
