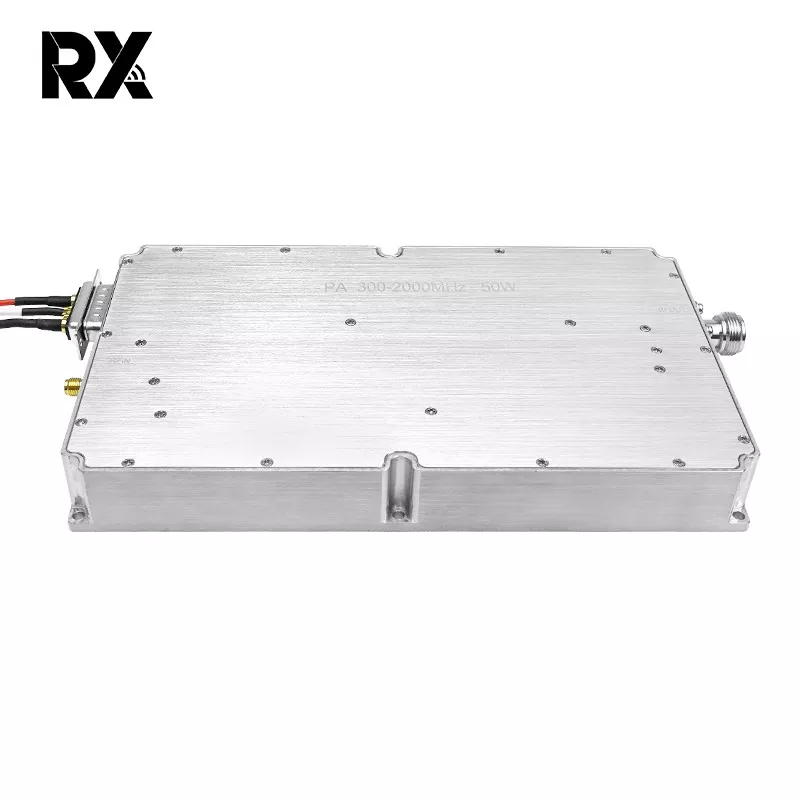

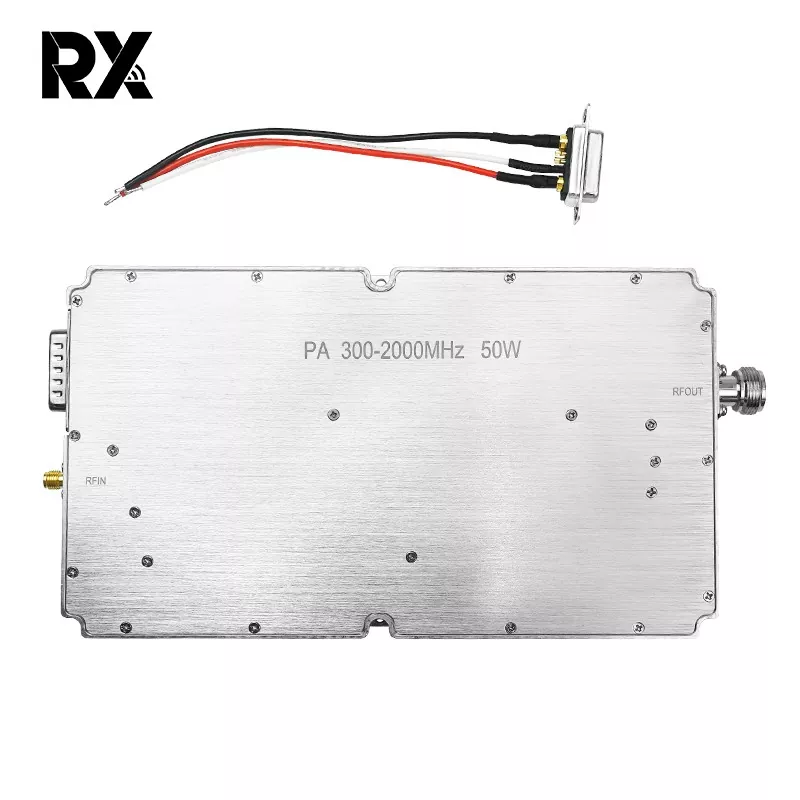

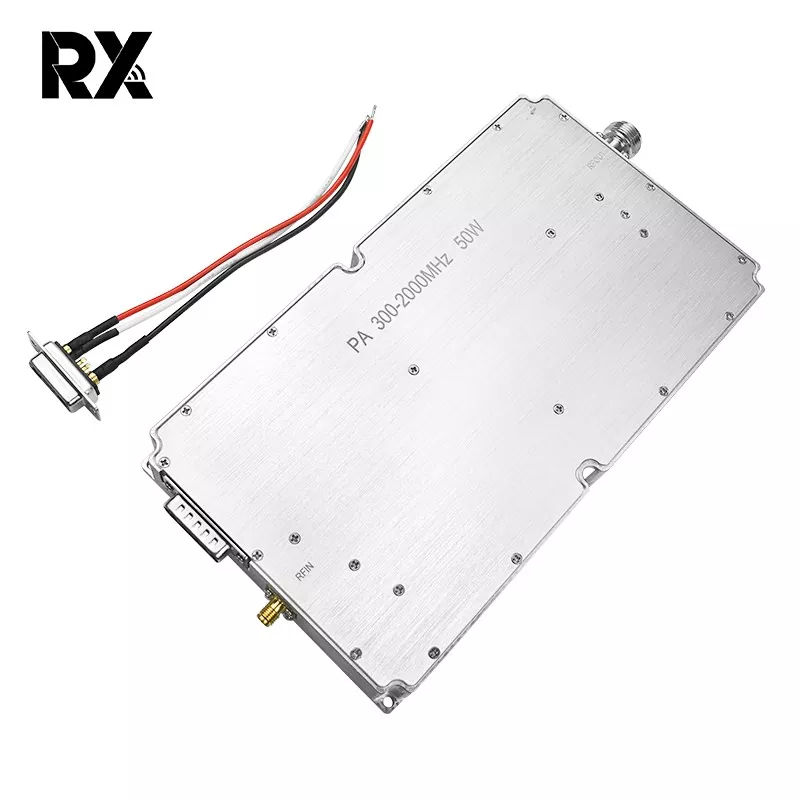

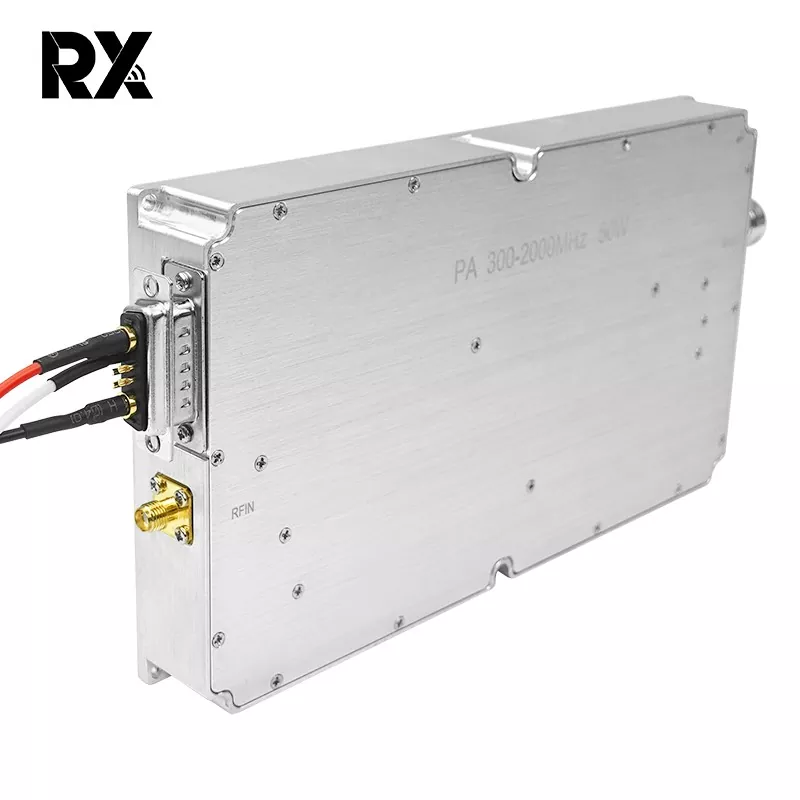

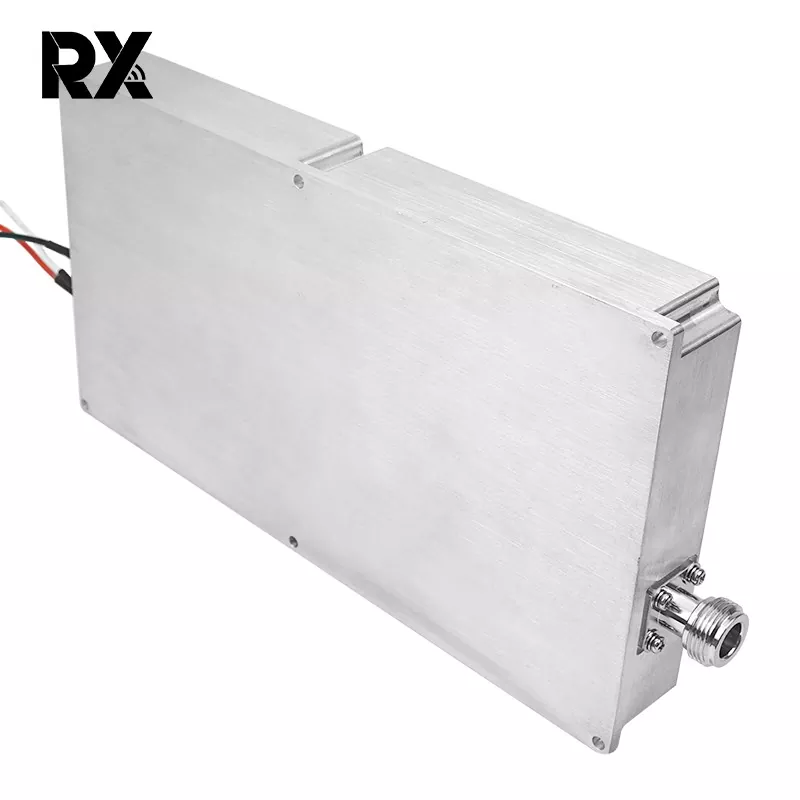

High-performance 300-2000MHz RF amplifier jammer module

This module can cover the 300MHz to 2000MHz frequency range, enabling effective interference with various wireless signals in this band. Our high-performance 300-2000MHz RF amplifier jammer module outputs a relatively high 50W power for robust interference. Although power levels may vary among modules, higher power generally means a wider interference range and stronger effect. Texin is proud of the quality of its modules. Their excellent performance and practical results have made them popular with customers.

Send Inquiry

Product Description

This module shows excellent amplification features within its operating frequency range, able to boost weak interference signals to the needed power. The high-performance 300-2000MHz RF amplifier jammer module quickly reacts to signals for jamming, adapts rapidly to changes in frequencies and modulation modes, enabling real-time jamming. Also, the compact and lightweight modules have an edge, being more convenient to install and use in various devices.

Product specification

No.	Item	Data	Unit
1	Frequency	300-2000	MHz
2	Test voltage	28	V
3	Current	3.6	A
4	Output	50	W
5	Gain	47	dB
6	Output stability	1	dB

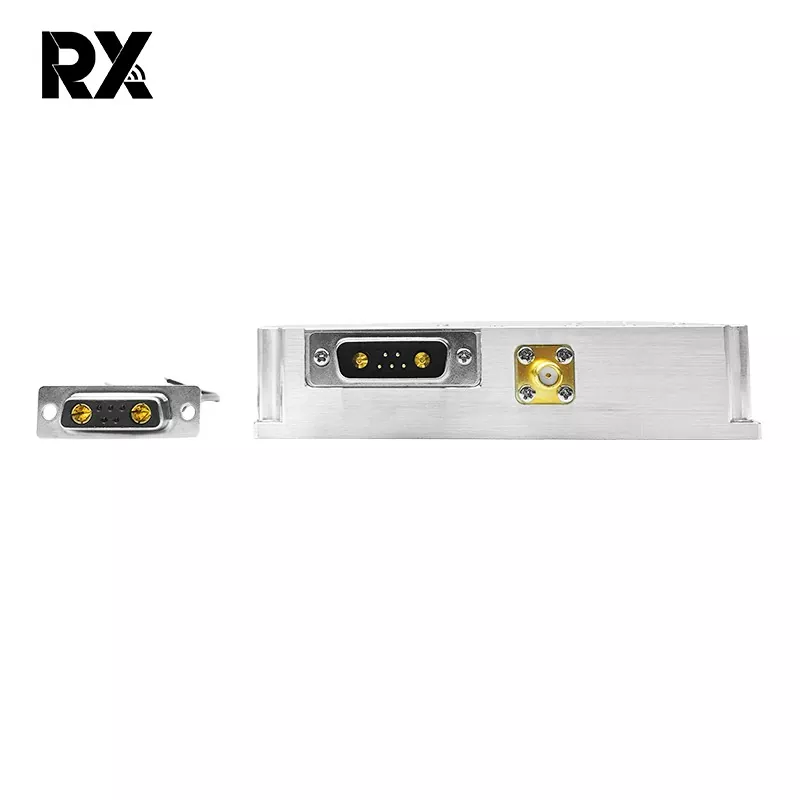

7	Connector	N / Female
8	Output connector VSWR	≤1.30 (No power and VNA test)
9	Power supply wire	Red+Black+Enable wire
10	Enable Control	High ON Low Off

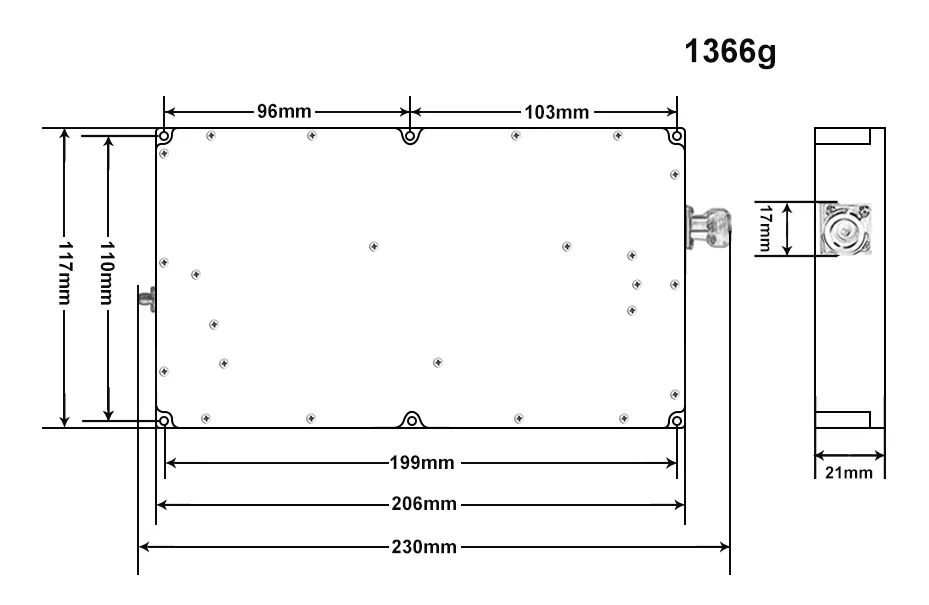

11	Out shell Size	20611021mm	mm
12	Mount hole	199*110	mm
13	Weight	1366	g
14	Work Temperature	-40~+65	℃
15	Out shell material	Aluminum
16	Vibration need	Car loadOK
