Customized 50W LDMOS Signal Jammer Module with Circulator

This is a high-power signal jammer module meticulously crafted for particular applications where efficient disruption of wireless signals is a necessity. Leveraging LDMOS technology and featuring a circulator, it offers stable and dependable performance. Our customized 50W LDMOS signal jammer module with circulator, boasts a tailored 50W power output. This substantial power enables it to produce robust RF signals that can effectively interfere with and jam the target wireless signals within a specific coverage area.

Send Inquiry

Product Description

The customized 50W LDMOS signal jammer module with a circulator is a specialized wireless info-security module for 2400-2485MHz signals. Its high average output power effectively disrupts relevant wireless signals. The circulator separates the amplifier from the antenna, ensuring unidirectional RF signal flow from amplifier to antenna, maintaining stable and reliable operation. TeXin,prioritize quality and customers. We warmly welcome your contact via letters, calls or on-site visits for business cooperation. We promise consistent top-notch services.

Product specification

No.	Item	Data	Unit	Notes
1	Frequency	2400-2485	MHZ
2	Work Temperature	-20~+70	℃
3	Max Output Power	50	W
4	Work Voltage	DC28	V
5	Max Gain	47	dB
6	Flatness	±1	dB
7	Max Current	4	A
8	Output VSWR	≤1.5
9	Output Connector	SMA/F 50Ω		Customized
10	Power Amplifier Efficiency	45		when Max Output
11	Switch Control	high low level current	V	0V off /0.6 on
12	Standing Wave Protection	OK
13	Temperature Protection	75°	℃

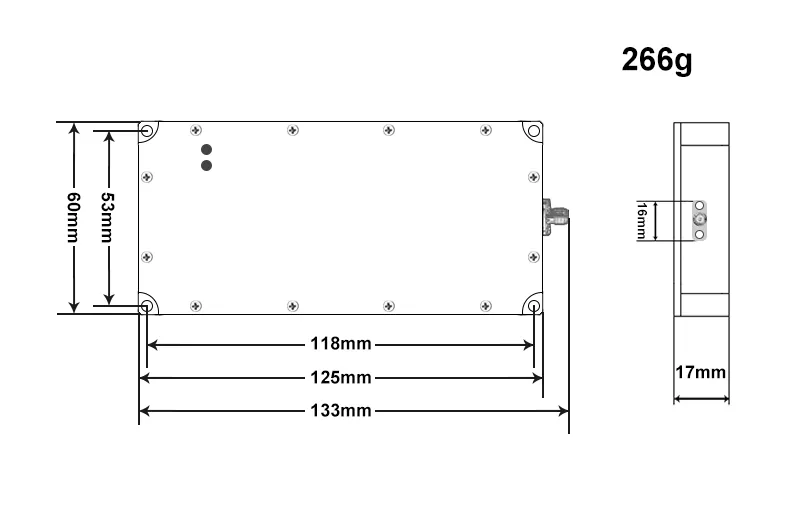

14	Size	1305520	mm
15	Weight	0.266	Kg
