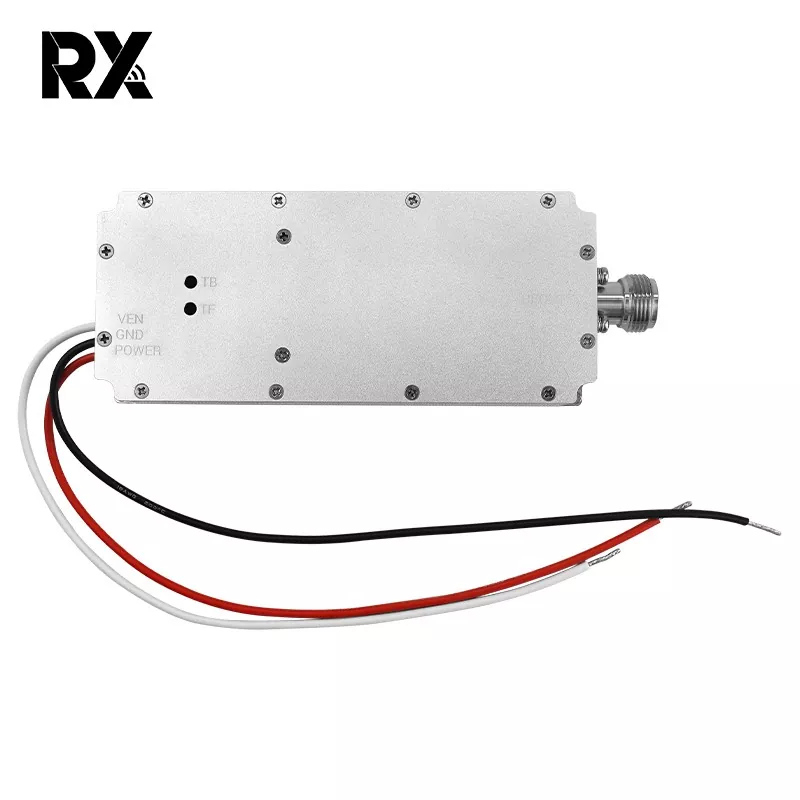

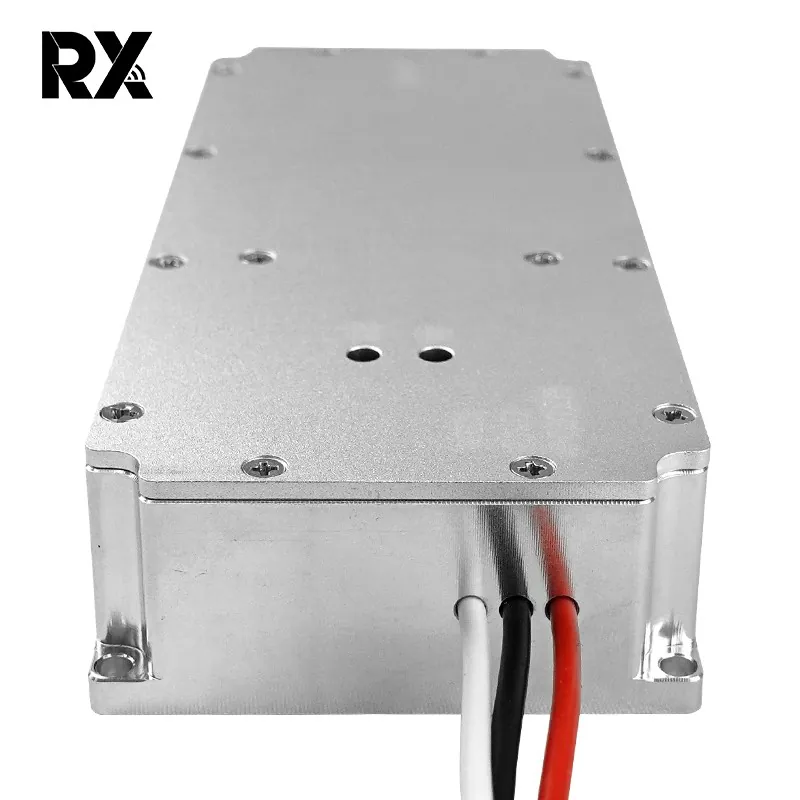

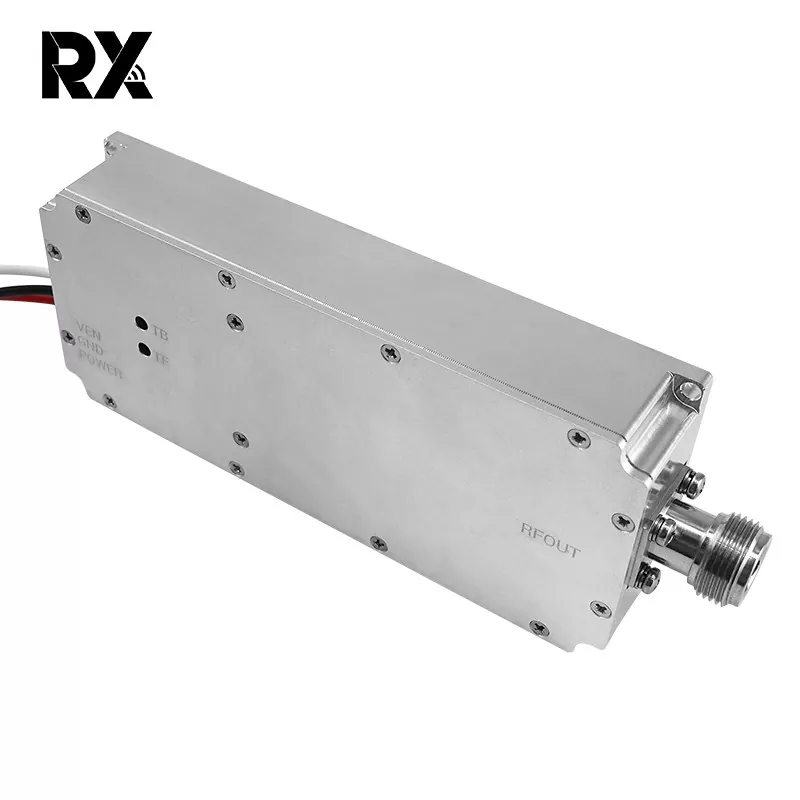

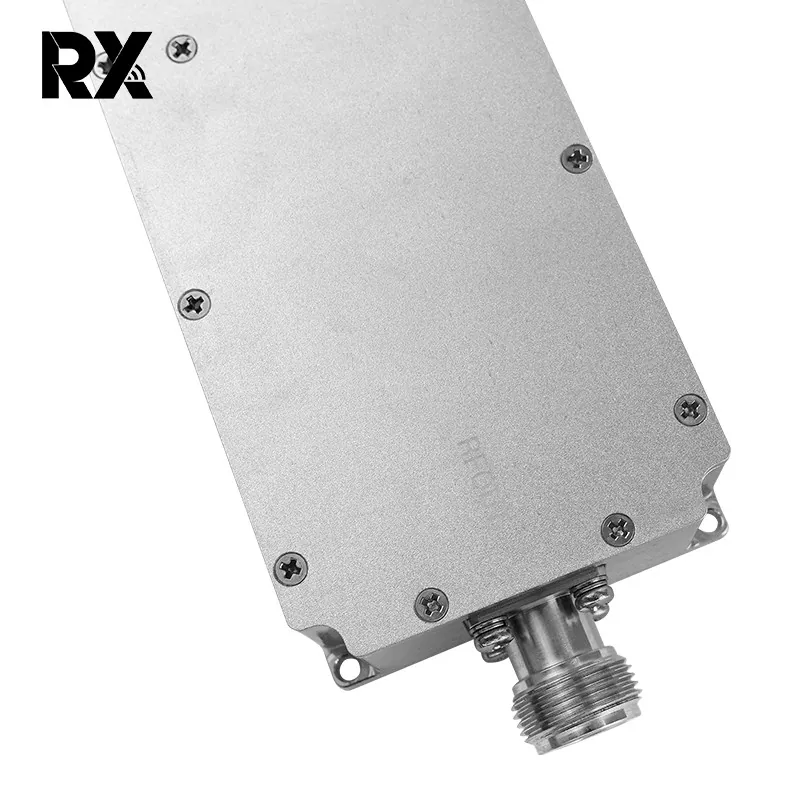

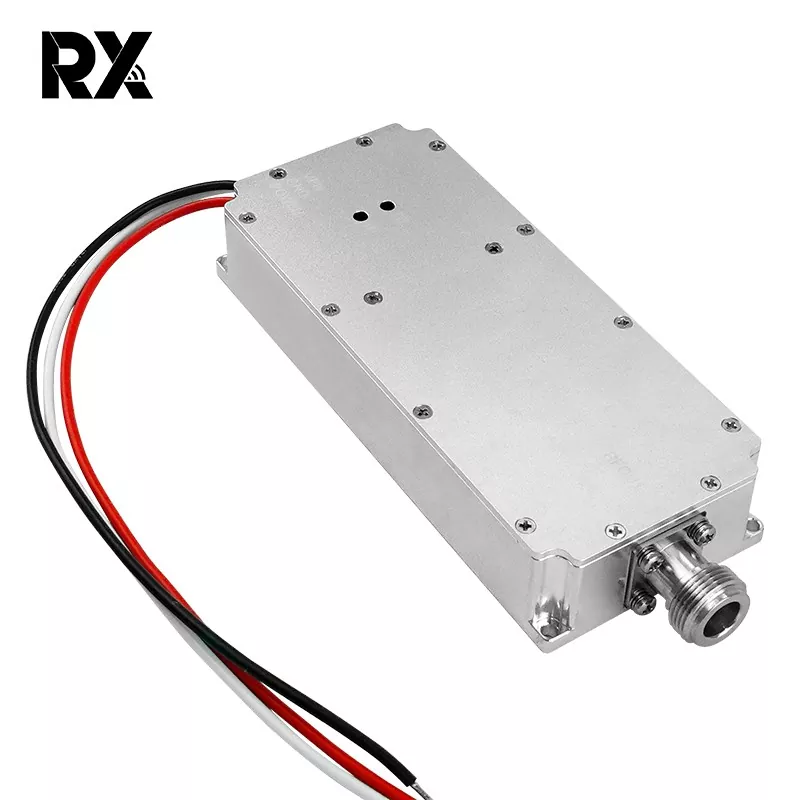

Anti-UAV 90W module is a high-performance defense system designed specifically for modern drone threats. It integrates 90W high-power RF interference and 360° ring protection technology to quickly identify, locate and block illegally invading drone signals. Anti-UAV 90W High Power Module with Circle Protect is suitable for key scenarios such as military restricted areas, airports, nuclear power plants, and large-scale event security. RX is a professional module manufacturer and supplier in China. you can rest assured to buy module from our factory and we will offer you the best after-sale service and timely delivery.
This module has a powerful 90W power output, ensuring that it can effectively interfere with the communication and navigation systems of drones at a long distance, causing them to lose control or force them to land. Anti-UAV 90W High Power Module with Circle Protect has unique ring-shaped protective structure not only provides solid protection for the module at the physical level to resist external collisions, impacts and harsh environmental erosion, but also has electromagnetic shielding function.
No. |
Item |
Data |
Unit |
1 |
Frequency |
Customized |
MHz |
2 |
Test voltage |
28 |
V |
3 |
Current |
3.7 |
A |
4 |

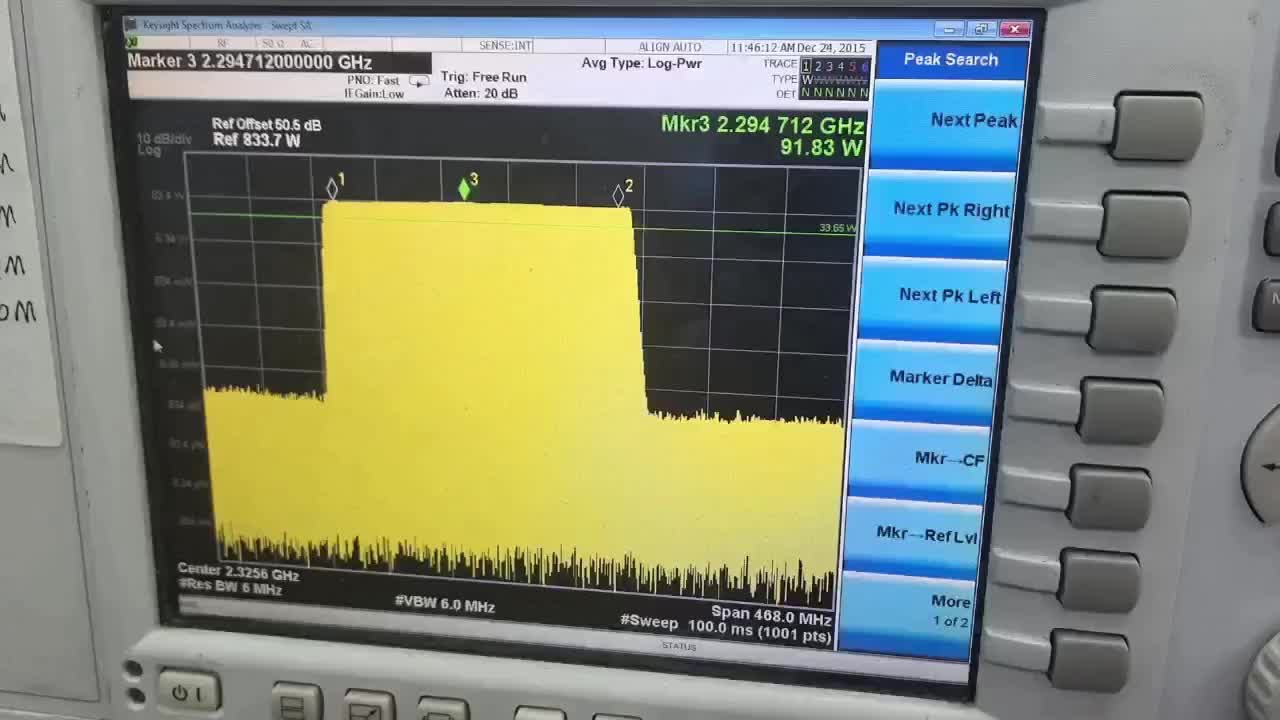

Output |
90 |
W |
5 |
Gain |
49 |
dB |
6 |
Output stability |
1 |
dB |
7 |

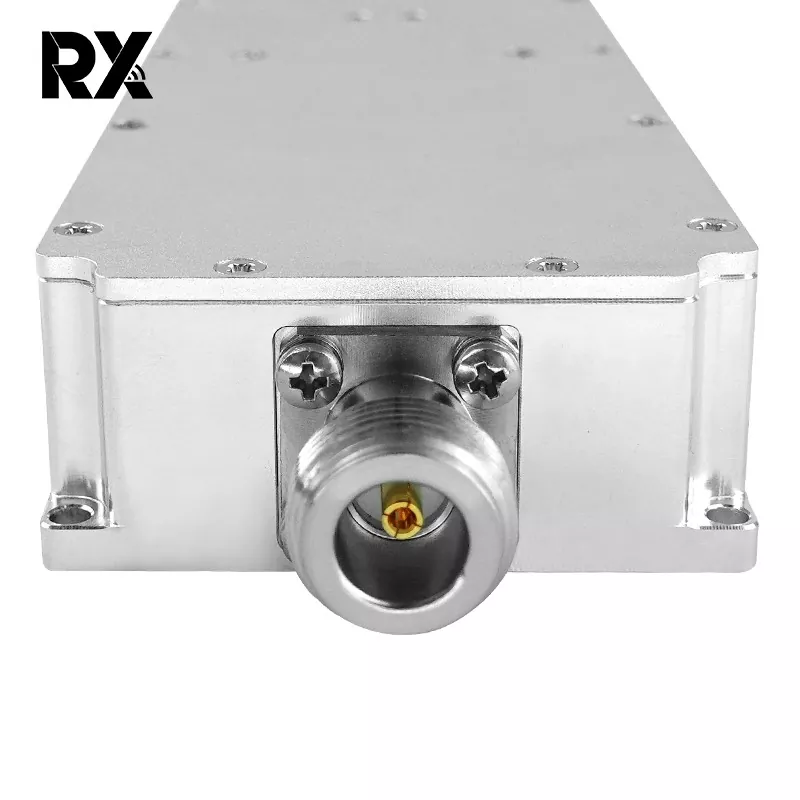

Connector |
N/ Female |
|
8 |
Output connector VSWR |
≤1.30 (No power and VNA test) |
|
9 |
Power supply wire |
Red+Black+Enable wire |
|
10 |
Enable Control |
High ON Low Off |
|
11 |

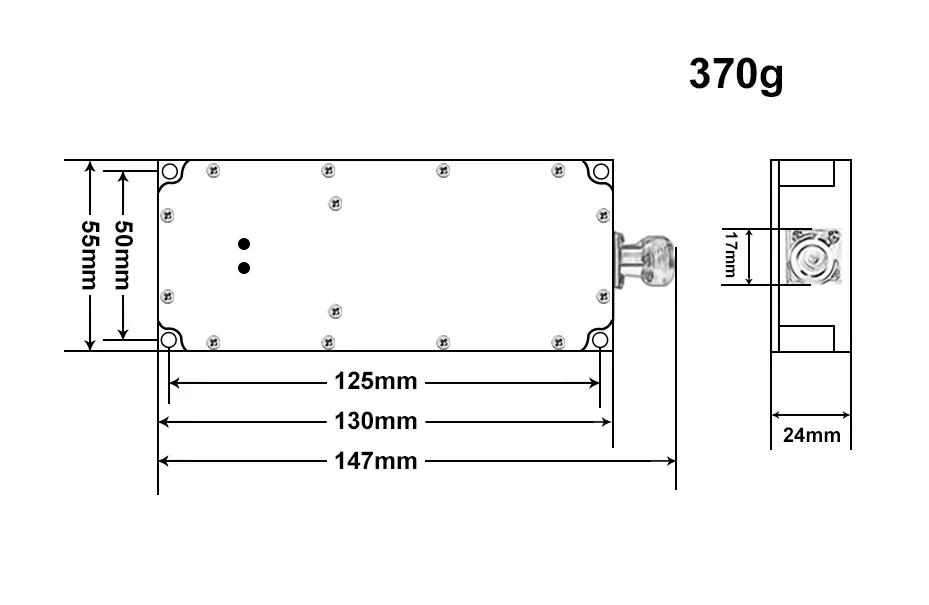

Out shell Size |
130*55*24 |
mm |
12 |
Mount hole |
125*50 |
mm |
13 |
Weight |
370 |
g |
14 |
Work Temperature |
-40~+65 |
℃ |
15 |
Out shell material |
Aluminum |
|
16 |
Vibration need |
Car loadOK |
