8 Channel Anti Drone Shield Anti Drone Device
  • 8 Channel Anti Drone Shield Anti Drone Device8 Channel Anti Drone Shield Anti Drone Device
  • 8 Channel Anti Drone Shield Anti Drone Device8 Channel Anti Drone Shield Anti Drone Device

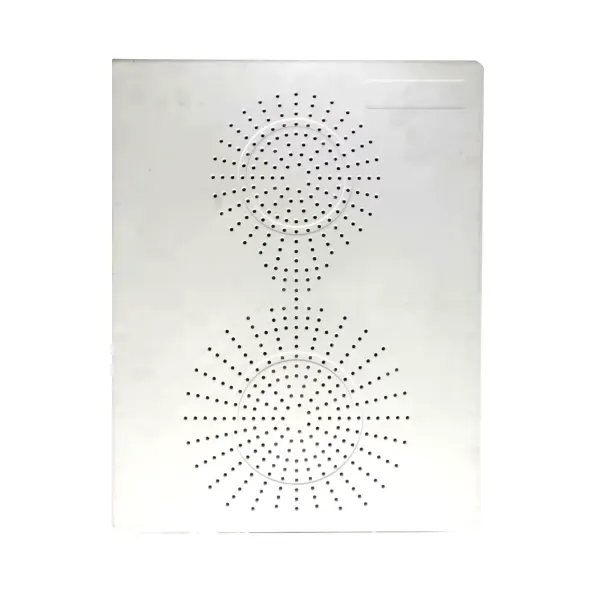

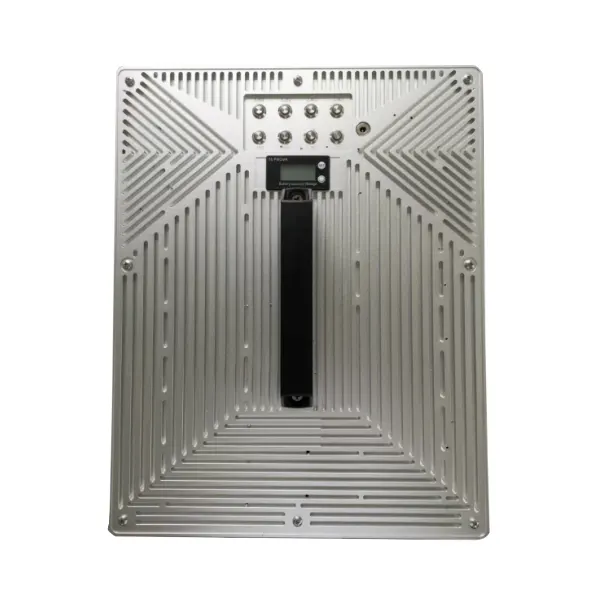

8 Channel Anti Drone Shield Anti Drone Device

Shenzhen Rongxin Communication Co., Ltd is anti drone product manufacturers and suppliers in China who can wholesale drone jammers. We can provide professional service and better price for you. This Rongxin 8 channel anti drone shield anti drone device is our latest product.If you interested in anti drone products, please contact with us. We follow the quality of rest assured that the price of conscience, dedicated service.

Send Inquiry

Product Description

Rongxin 8 channel anti drone shield anti drone device is a directional shield UAV countermeasures device with built-in lithium battery, which is easy to operate and can realize single frequency control. Rongxin 8 channel anti drone shield anti drone device uses narrowband jamming technology and radio frequency suppression technology to cut off the connection between the UAV and the remote control, so as to force the UAV to return to the course. In addition, after the UAV is controlled, the image transmission channel is cut off, so it cannot transmit videos, aerial photos and receive any instructions from the ground remote control operator, so as to protect key areas and prevent privacy from being disclosed.

Rongxin 8 Channel Anti Drone Shield Anti Drone Device Specification

Working Frequency/Power

430-450MHz    10W

860-930MHz    10W

1170-1280MHz   10W

1550-1620MHz   10W

2400-2480MHz    10W

2400-2480MHz    40W

5150-5250MHz    30W

5725-5850MHz    30W

Battery capacity

24V15A/H

Countermeasure capability

Return

Countermeasure distance

2.5~3km(Mavica2)

Countermeasure Angle

30°

Endurance time

40minutes

Charging mode

29.4VCharging adapter

Size

445*350*55mm

Weight

6.9kg

Note:OEM Customize:Module frequency band, power, screen printing can be customized according to customer requirements

Rongxin 8 Channel Anti Drone Shield Anti Drone Device Application

This Rongxin 8 channel anti drone shield anti drone device is widely used in many fields:

Airports, public procuratorate system, prisons, detention centers, drug rehabilitation centers, security agencies, troops, large-scale events, concerts, important meetings, government agencies, anti-terrorism field and other important places and facilities, need space security and UAV control areas.

Rongxin 8 Channel Anti Drone Shield Anti Drone Device Instruction

1.1.2 G / 1.6 G / 2.4 G / 5.2 G / 5.8 G fully open, the landing of unmanned aerial vehicle (uav). (for flight control system of the uav itself without landing function, can't landing)

2. Start 900MHz/2.4G/5.2G/5.8G, turn off GPS/1.2G and lose control of the UAV. At this time, the UAV will return to flight.

3. First select "frequency band button switch" to determine the functions of the UAV that need countermeasures.

4. The front direction of the device is pointed at the drone. At this time, the "frequency band button switch" shows "blue light", indicating that it has started to work.

5. "Power display" can know the power situation, check the power after each use, below 30% need to be charged in time.



Function

State

UAV type

Note

Return

433MHz/900MHz/2.4G/5.2G/5.8G on

Consumer UAV

Point the device at the drone and it will be driven away and returned to its takeoff position

Land

1.2G/1.6G/2.4G/5.2G/5.8G all on

If the flight control system of the UAV has no forced landing function, it cannot be forced to land
