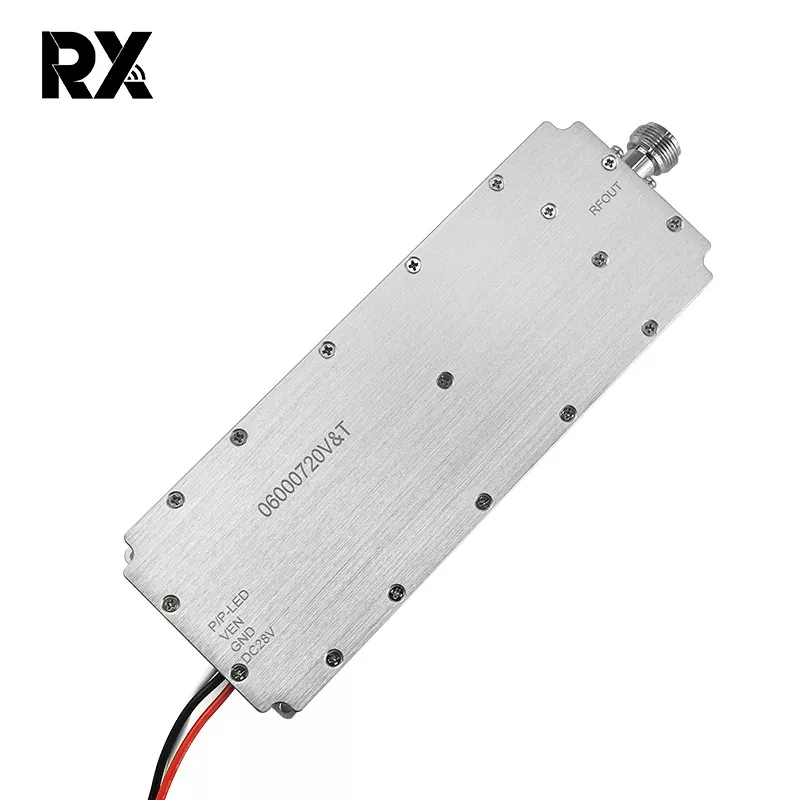

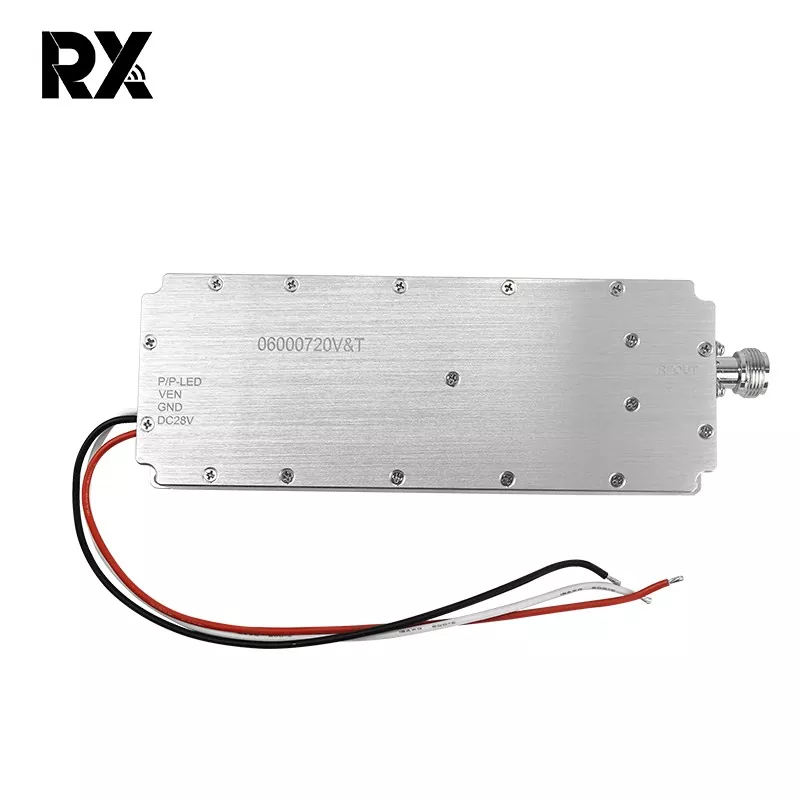

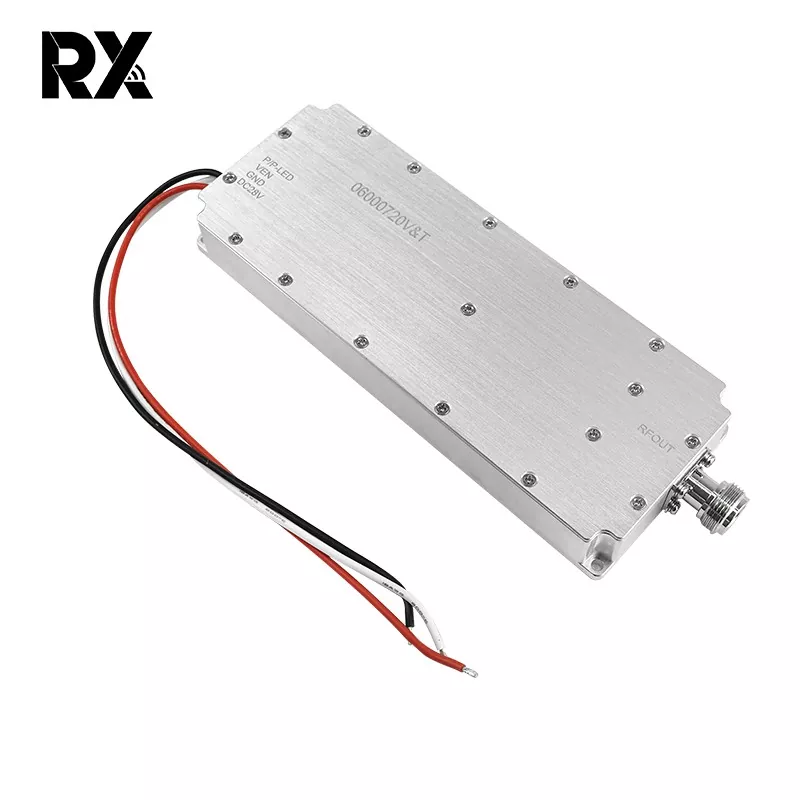

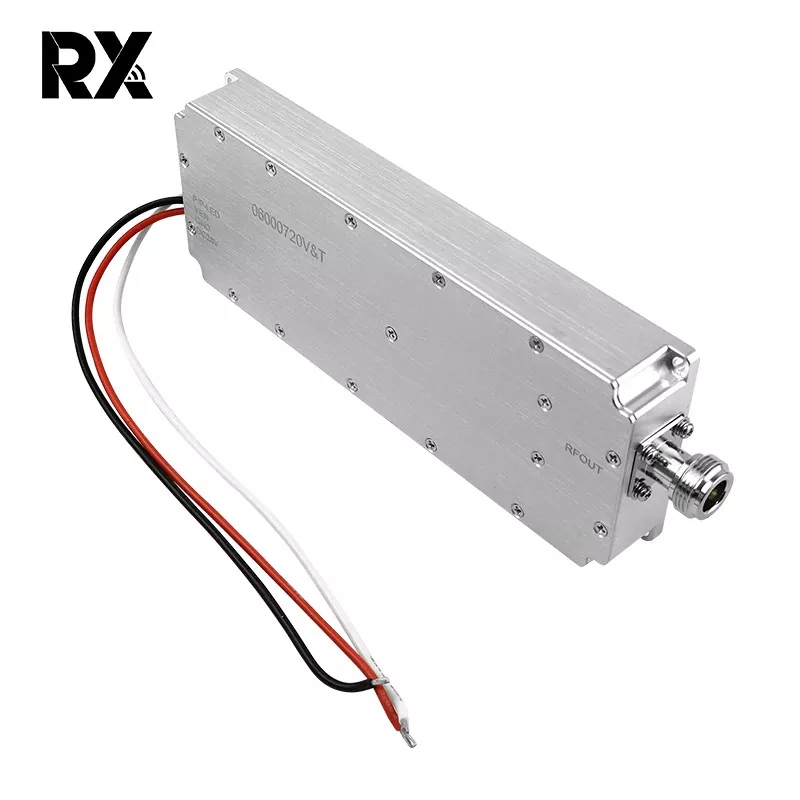

600-720MHz GNA 50W Digital Source With Circulator VSWR Protection

600-720MHz GNA 50W Digital Source With Circulator VSWR Protection is a high-performance professional-grade digital signal source designed for application scenarios that the frequency band in the 600 - 720MHz . The output power of this module can reach 50W, which can provide strong signal transmission for various test, communication and research scenarios. The quality of the modules produced by RX is guaranteed. With its excellent performance and good use effect, it has established a good image among customers and has gained wide recognition.

Send Inquiry

Product Description

This module equipped with an integrated circulator, it provides effective VSWR protection, safeguarding the source from potential damage caused by impedance mismatches in the connected system. 600-720MHz GNA 50W Digital Source With Circulator VSWR Protection ensure to precise frequency control, excellent signal purity, and stable output characteristics, making it an ideal choice for demanding environments where performance and durability are critical.

Product specification

No.	Item	Data	Unit
1	Frequency	600-720(customized)	MHz
2	Test voltage	24-28	V
3	Current	4	A
4	Output	50	W
5	Gain	47	dB
6	Output stability	1	dB

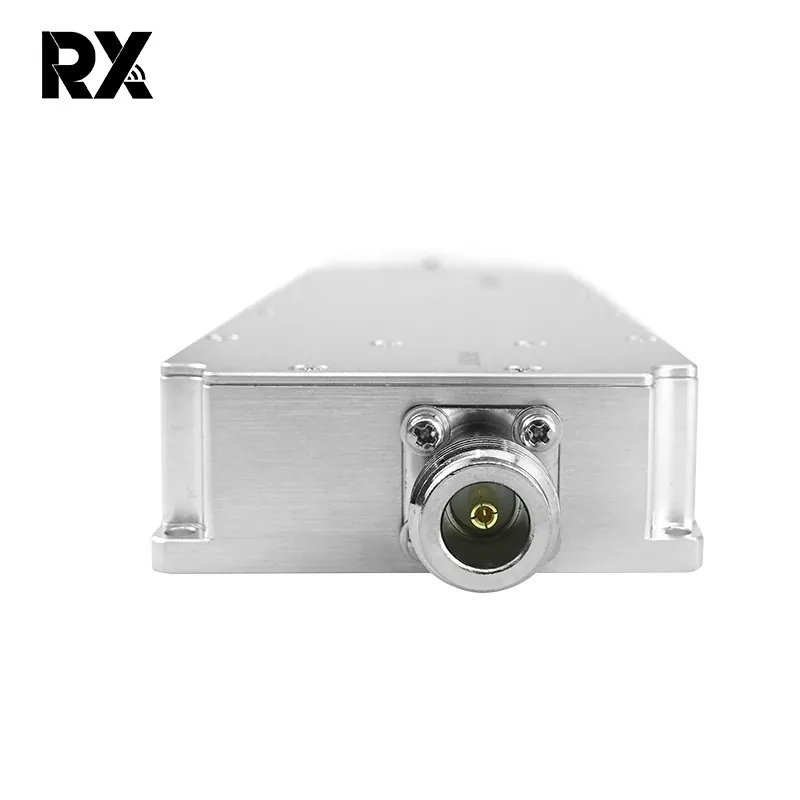

7	Connector	N
8	Output connector VSWR	≤1.30

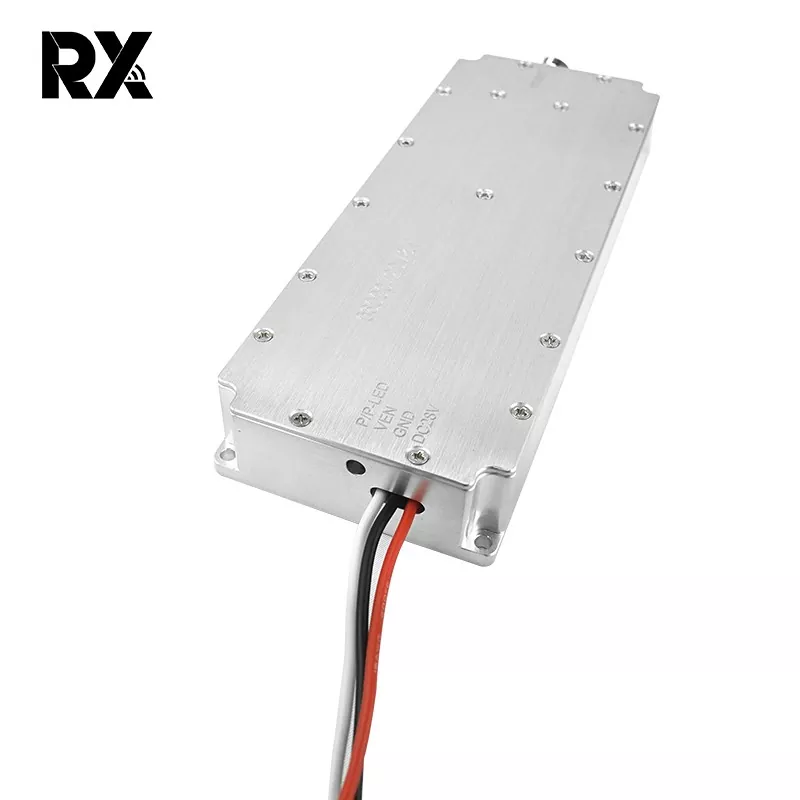

10	Power supply wire	Red+Black+Enable wire
11	Enable Control	High ON Low Off

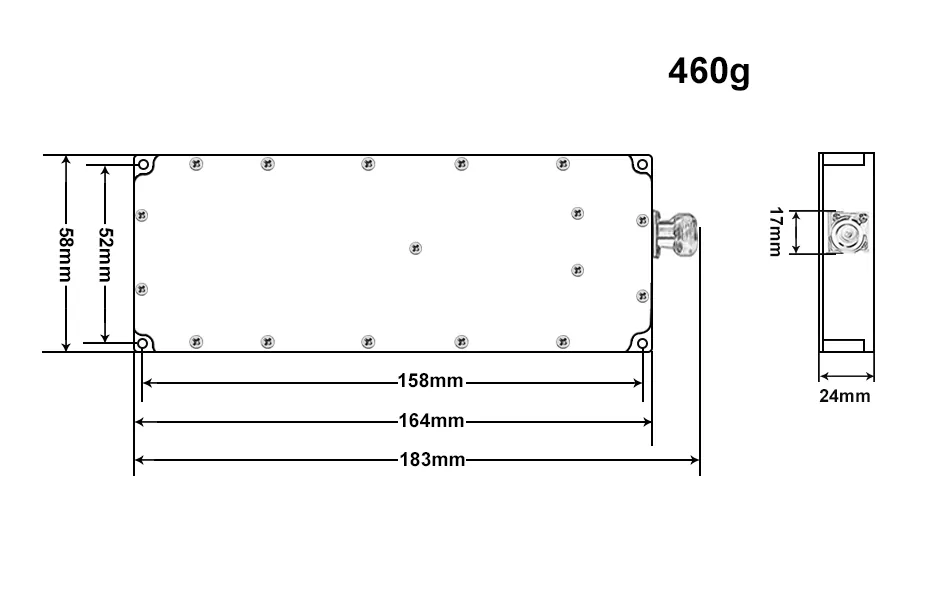

12	Out shell Size	1835824	mm
13	Weight	460	g
14	Work Temperature	-40~+65	℃
15	Out shell material	Aluminum
16	VSWR protection	VSWR protection function realized by coupler +detection+ switch, prevent equipment from being damaged by overload caused byVSWR
17	Vibration need	Car load OK
