50W 1000-2000MHz No-signal-sourcue Power Amplifier

This is a 50W 1000-2000MHz No-signal-sourcue Power Amplifier. It was independently developed by Shenzhen Rongxin Company. Its function is to amplify small RF signals (0-10 dBm) to approximately 47 dBm (50 W), providing high-power excitation for the back-end antenna. This is useful for long-distance wireless transmission or electronic warfare scenarios, and is particularly effective in jamming drone signals.

Send Inquiry

Product Description

Advantages of a 50W 1000-2000MHz No-signal-source Power Amplifier

1. Broadband design, covering multiple frequency bands

This 50W no-signal-source power amplifier module is specifically designed for broadband operation, with a single module covering 1000-2000MHz, eliminating the need for hardware replacement for frequency band division. Users can connect an external signal source and modulate the module's frequency band as needed, such as 700-1000MHz, 1500-1700MHz, etc., allowing for easy switching between different frequency bands with a single module.

2. High gain, low drive requirements

The 1000-2000MHz No-signal-sourcue power amplifier with a high gain 47dB, full power output is achieved with a small signal input of 0 dBm, requiring minimal drive power, it can be directly driven by ordinary DDS, PLLDRO, or SDR amplifiers.

3. Aluminum casing provides good heat dissipation

This power amplifier features an aluminum casing and operates at temperatures ranging from -40°C to +75°C, providing excellent heat dissipation. It meets the heat dissipation requirements for continuous, long-term operation. Suitable for harsh environments such as airborne, vehicle-mounted, and portable outdoor applications.

4. Multiple protections, high stability

Our 50W 1000-2000MHz no-signal-source power amplifier have multiple protections, including temperature protection, VSWR protection, and overload protection. It offers high stability and cost-effectiveness. Please contact us for further information.

Product specification

No.	Item	Data	Unit
1	Frequency	1000-2000	MHz
2	Test voltage	28-32	V
3	Current	6.5	A
4	Output	50	W
5	Gain	47	dB
6	Output stability	1	dB
7	Input stability	0-10	dB
8	Connector	F/ Female
9	Output connector VSWR	≤1.30 (No power and VNA test)
10	Power supply wire	Red+Black+Enable wire
11	Enable Control	High ON Low Off

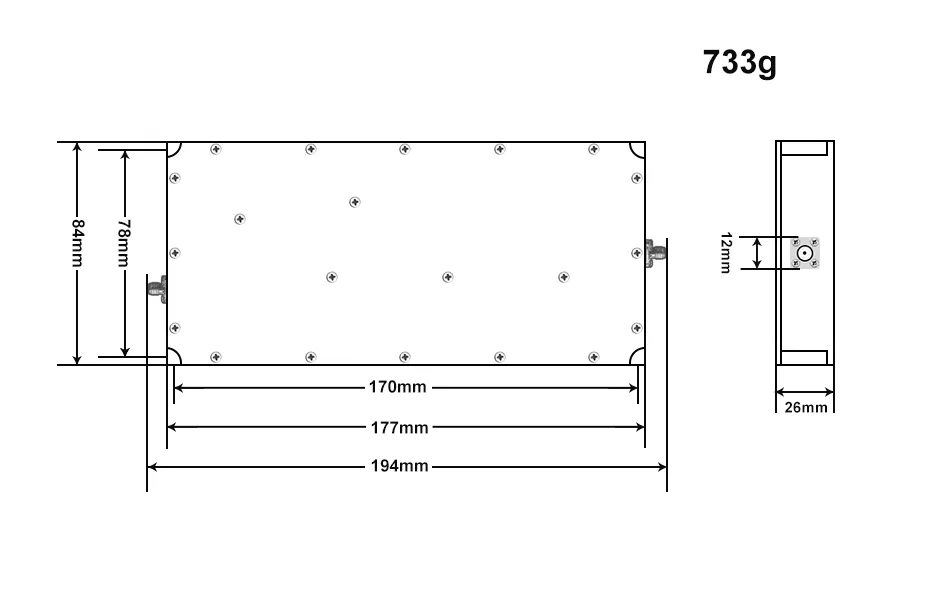

12	Out shell Size	1948426	mm
13	Mount hole	170*78	mm
14	Weight	733	g
15	Work Temperature	-40~+65	℃
16	Out shell material	Aluminum
17	Vibration need	Car loadOK

Attention

• Power supply better carry about 28V 8A when itself 4A for its stable work

• Heat dissipation measure is necessary including the thermal glue, suitable-size

heat sink and cooling fans

• Antenna or Load must be firstly connected before the power supply is ON or it will be short wire
