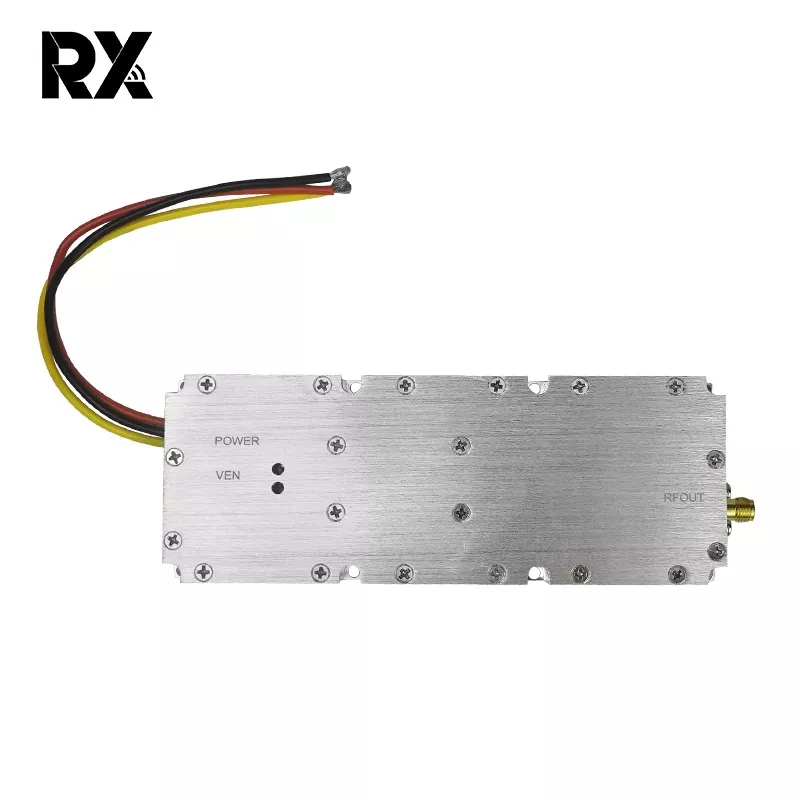

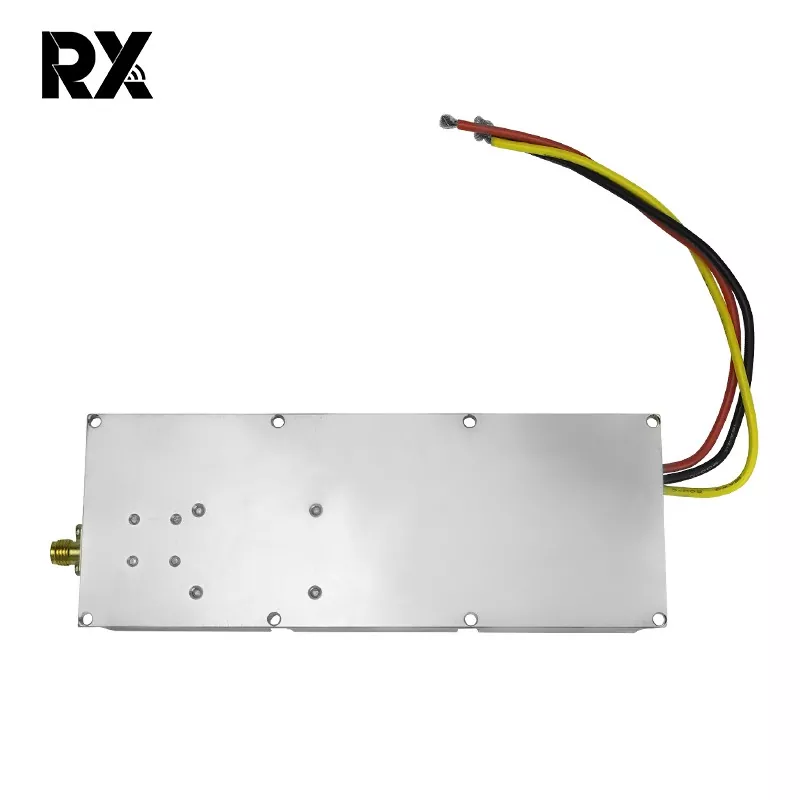

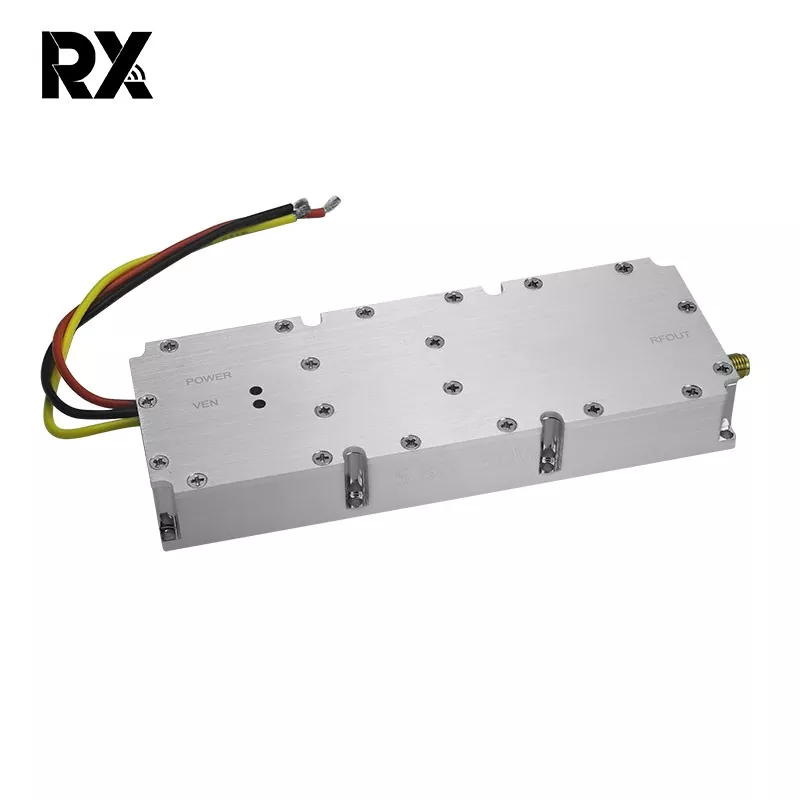

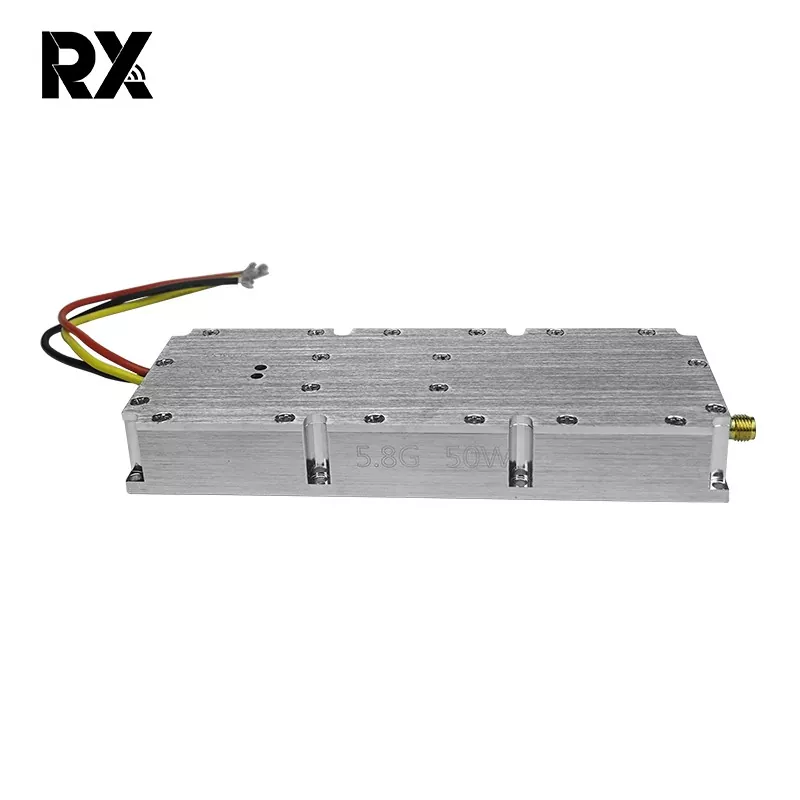

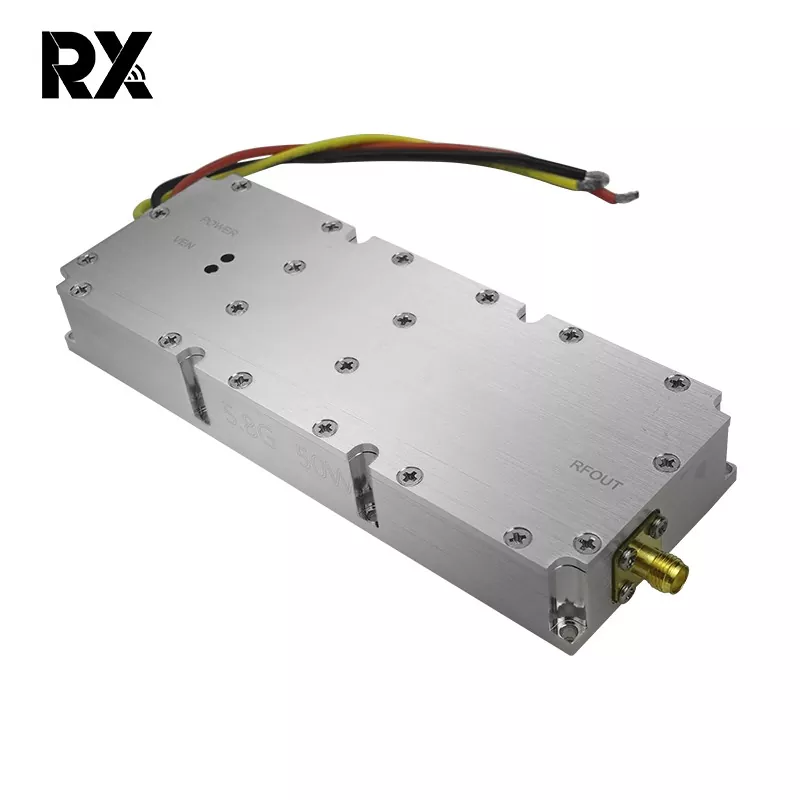

The 5.8GHz 50W LDMOS FPV Modules with circulator operate at 5.8GHz and output 50W power. Using LDMOS technology, they can handle high power and amplify RF signals efficiently. The internal circulator allows one-way signal flow, enhancing the module's performance and stability. TeXin is a top professional manufacturer and supplier of these modules in China. We focus on quality to ensure reliable products. Our modules are priced competitively, showing our honesty and commitment to value. Our team also provides excellent customer service, aiming to satisfy and impress our clients.
The integration of the LDMOS amplifier and the internal circulator endows the module with enhanced anti-interference capabilities. Specifically, the circulator plays a crucial role in shielding the module from external interference signals, effectively preventing them from affecting the module's normal operation. These 5.8GHz 50W LDMOS FPV Modules with a circulator have found extensive applications in various fields, particularly in FPV drones and other UAV applications.
Frequency |
5.2Ghz 5.8Ghz 4.9Ghz(customized) |
Power |
50W(47dbm) |
Supply Voltage |
DC 24-28V |
Power Flatness |
1-1.5dB |
nput/Output VSWR TA |
1.5dB |
Supply Current |
3.5A |

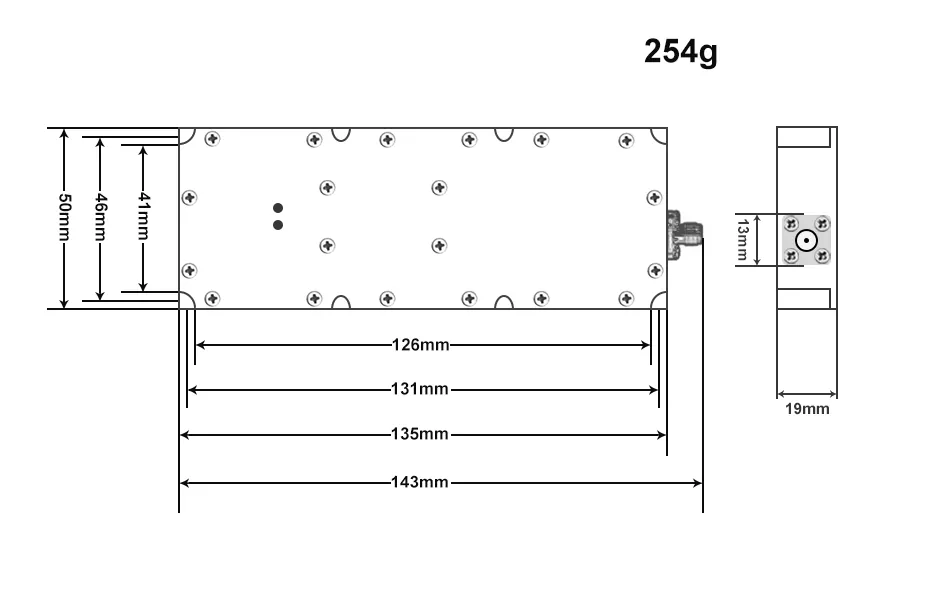

Size |
126*50*19mm |
Weight |
254G |
Operating Temperature |
-20℃-80℃ |
RF Connector |
SMA |
Connect line RED:DC24-28V |
