5.8G 50w Anti Drone Signal Jammer Module

Parameter

Characteristic Value

Unit

Description

Min

   Typical

Max

Frequency

5700

5900

MHz

Output power

46.5

47

47.5

dBm

In-band flatness

1

dB

Work current

3.8

A

Work voltage

28

32

V

Work efficiency

45

%

Upper sideband thermal offset

8

MHz

Module surface temperature 85°C

Lower sideband thermal offset

8

MHz

Module surface temperature 85°C

Weight

0.22kg

Size

132*53*17 mm

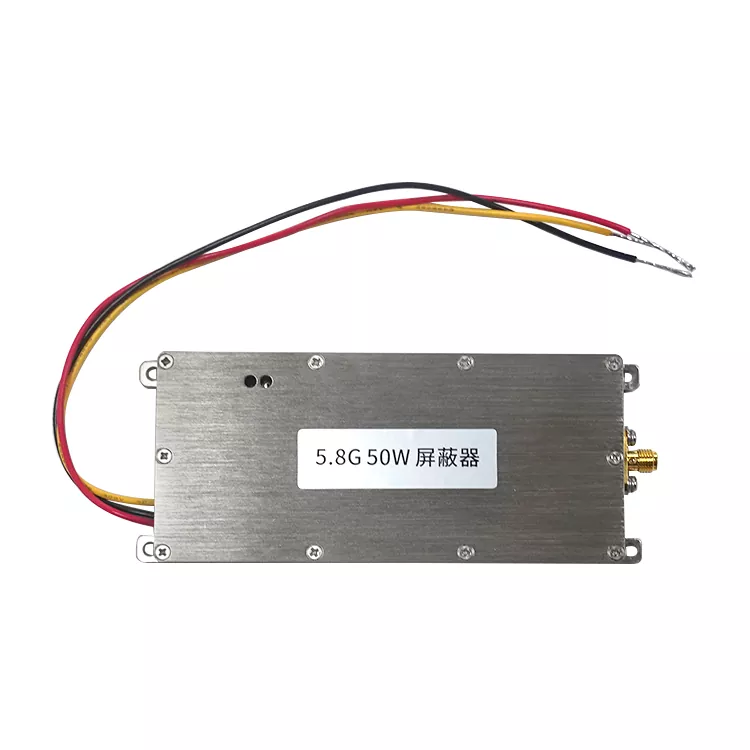

Note: 1. Red line is positive, black is negative, and yellow line is small signal line (if small signal control is not needed, it can be connected with the red line for power supply)

2. Power on the module when the antenna is properly connected; otherwise, the module may be damaged. Before powering on the module, check whether the power voltage is within the allowable range
