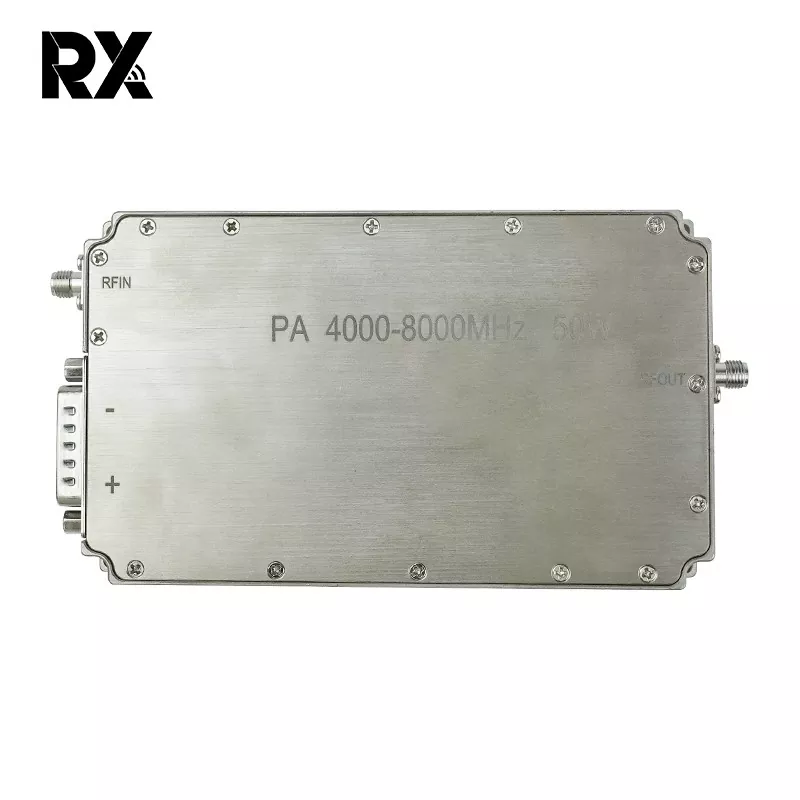

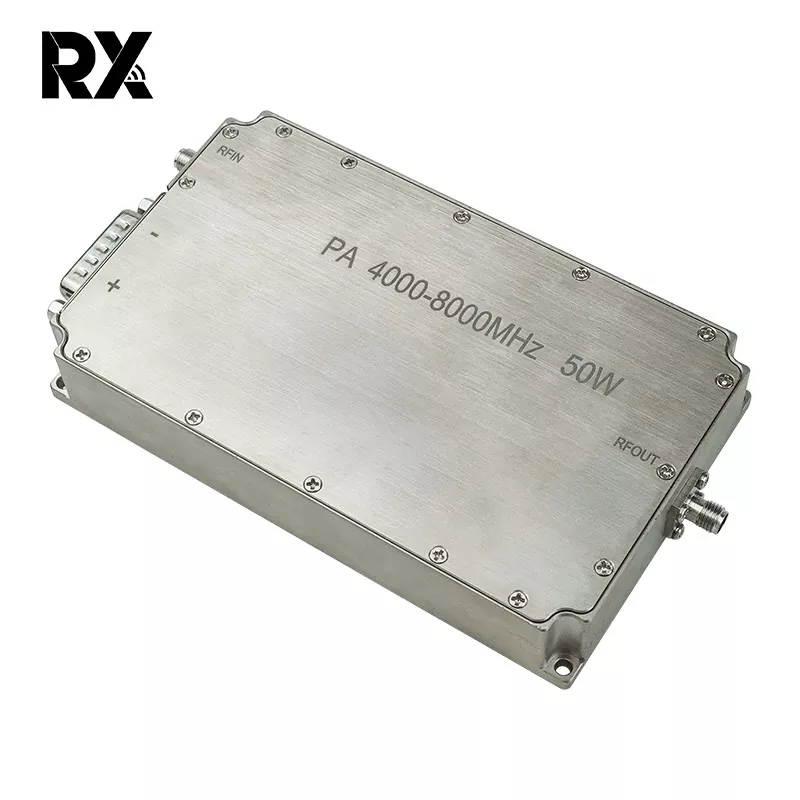

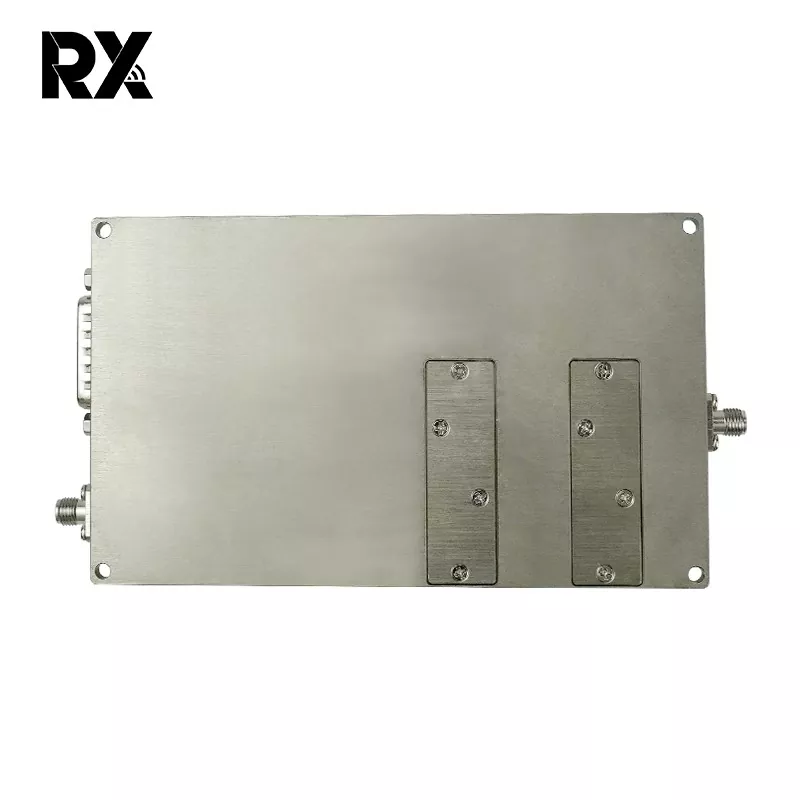

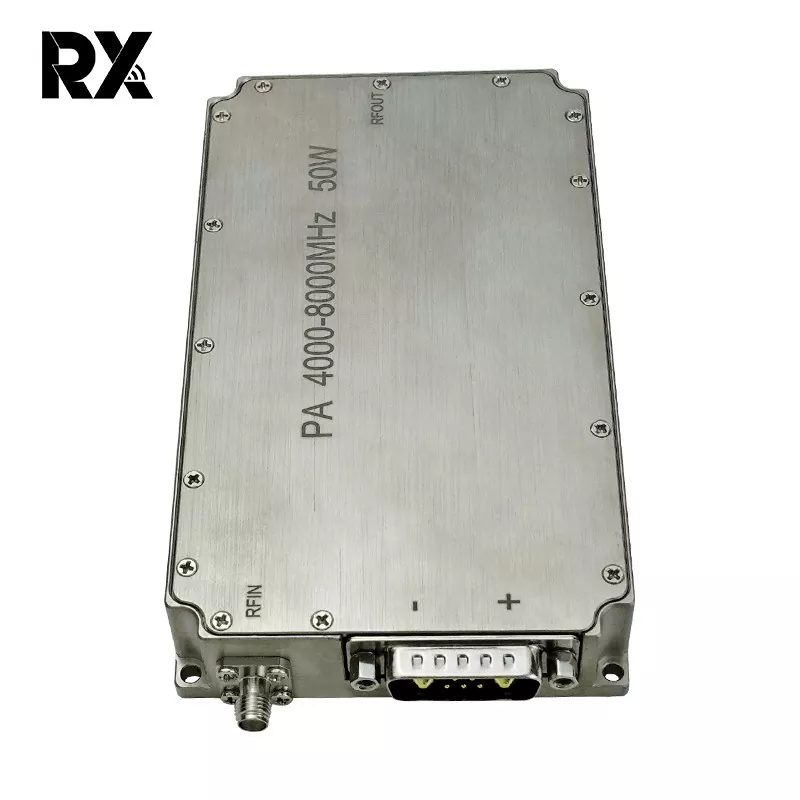

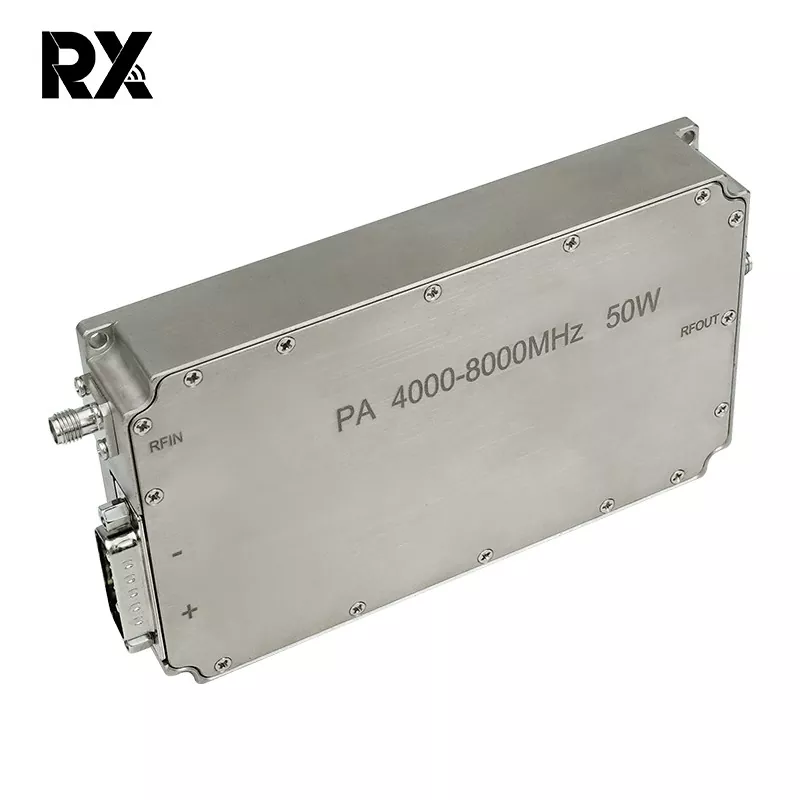

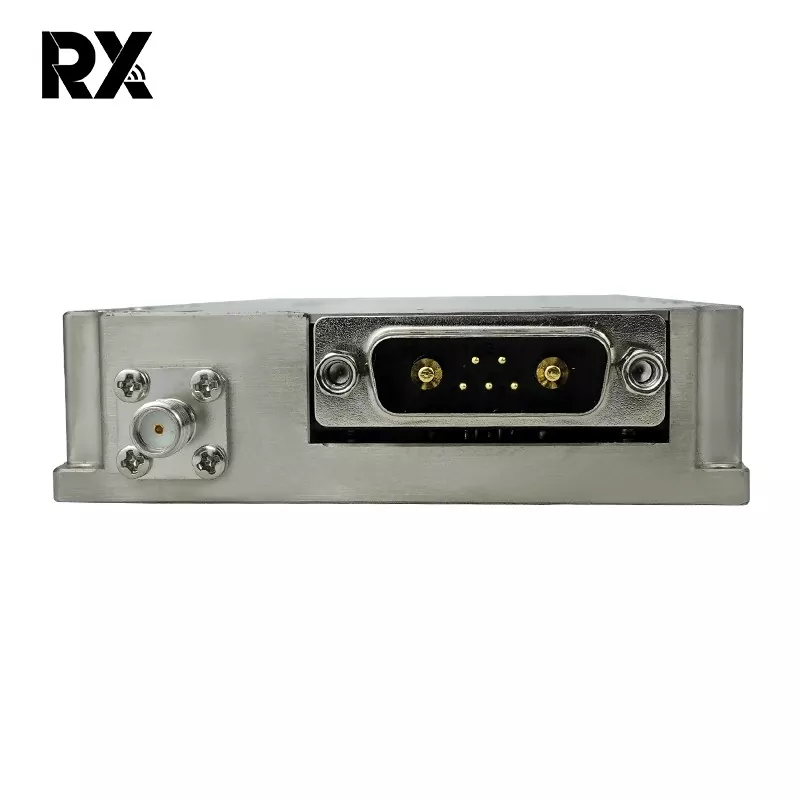

47dB High Gain 50W Drone Amplifier Module 4000-8000MHz

This high-power, wideband amplifier module, developed specifically for industrial-grade drone communication systems, focuses on the 4000-8000MHz core frequency control band. 47dB High Gain 50W Drone Amplifier Module 4000-8000MHz featuring 47dB of high gain and 50W of stable output, it offers a wide operating temperature range of -40°C to +65°C and automotive-grade vibration resistance to address signal attenuation and disconnection in complex environments.

Send Inquiry

Product Description

This module covering a wide frequency band of 4000-8000MHz, it is compatible with commonly used drone communication bands such as UHF, L, and S, eliminating the need for additional adaptation to different devices; 47dB High Gain 50W Drone Amplifier Module 4000-8000MHz supports a standard test voltage of 28V and a stable operating current of 3.6A. It is suitable for high-intensity operations such as surveying and mapping, inspection, plant protection, and emergency communications, making it a key component for upgrading drone communication links.

Product specification

No.	Item	Data	Unit
1	Frequency	4000-8000	MHz
2	Test voltage	28	V
3	Current	3.6	A
4	Output	50	W
5	Gain	47	dB
6	Output stability	1	dB
7	Connector	N / Female
8	Output connector VSWR	≤1.30 (No power and VNA test)
9	Power supply wire	Red+Black+Enable wire
10	Enable Control	High ON Low Off
11	Out shell Size	1538022	mm
12	Mount hole	134*74	mm
13	Weight	422	g
14	Work Temperature	-40~+65	℃
15	Out shell material	Aluminum
16	Vibration need	Car loadOK
