200W High Power FPV Jammer Module 2100-2500MHz 28V DC

The 200W High Power FPV Jammer Module 2100-2500MHz 28V DC is a high-performance device built specifically for precise jamming scenarios. It can operates across the 2100-2500MHz frequency range, it delivers stable, powerful jamming output. It runs on a 28V DC power supply with a rated operating current of 20A, and uses straightforward control logic—high-level activation and low-level deactivation—for flexible, efficient operation.

Send Inquiry

Product Description

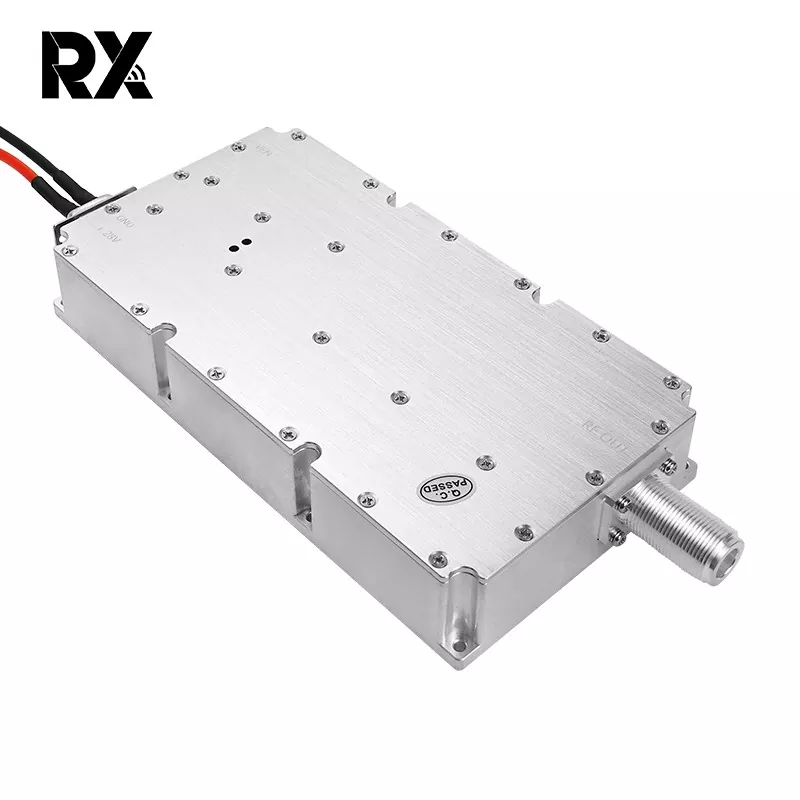

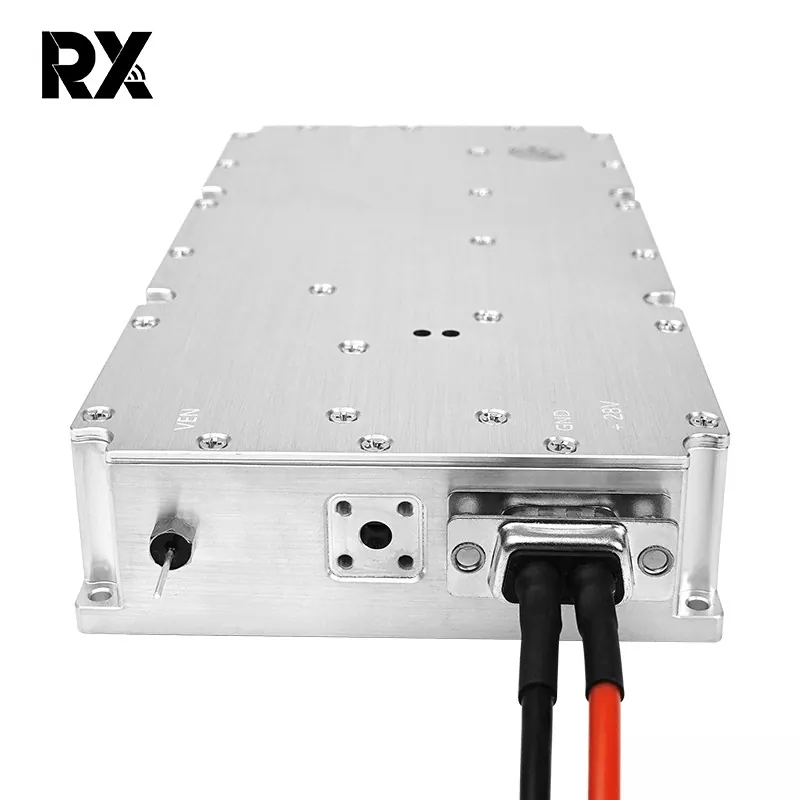

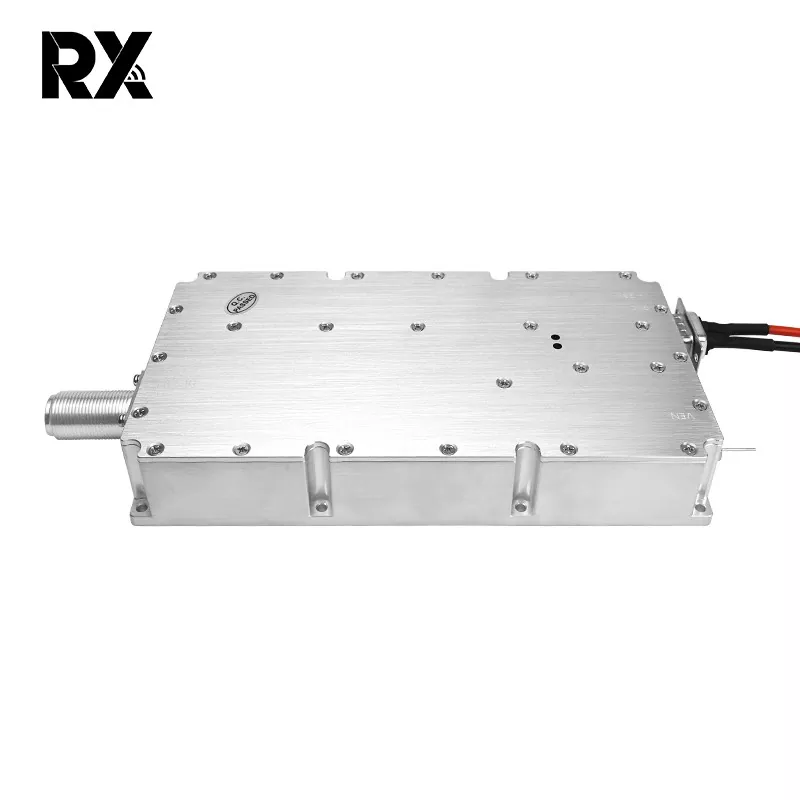

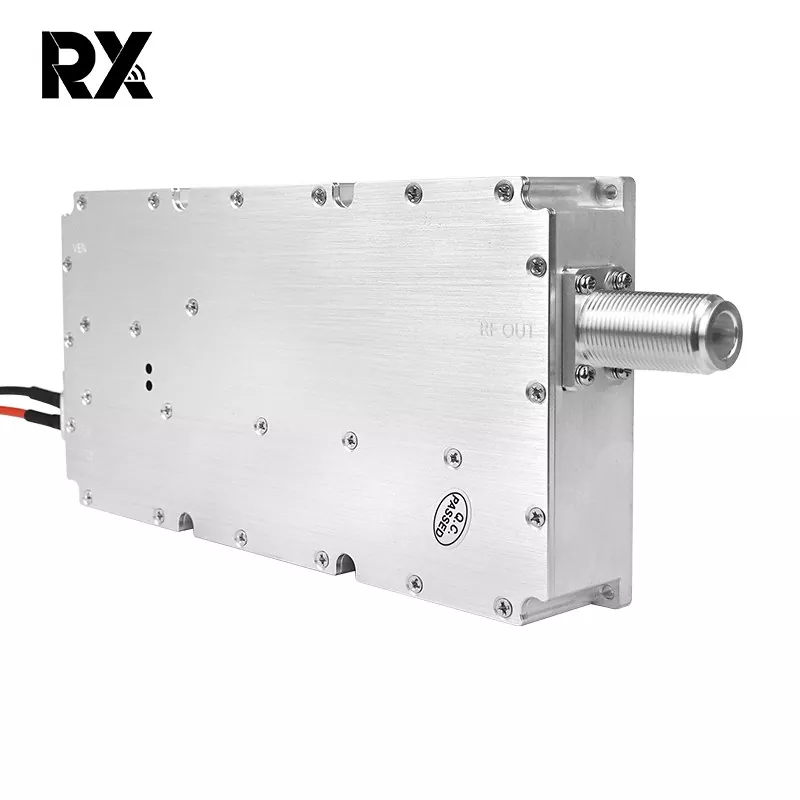

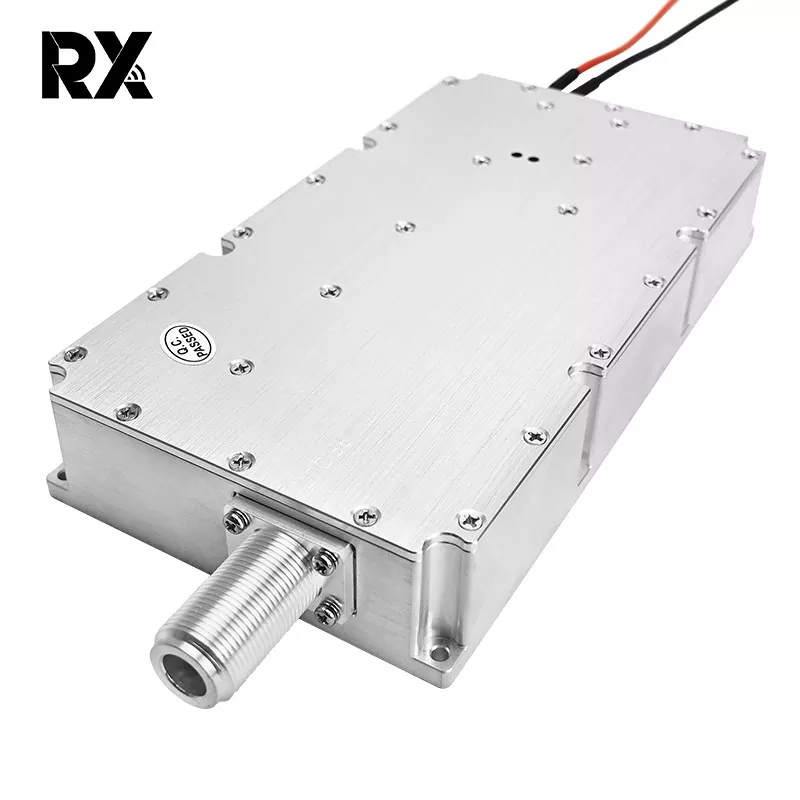

The module features a high-quality aluminum alloy , a compact size to easy to install. The product boasts excellent environmental adaptability, withstanding a wide operating temperature range of -40°C to +65°C, meeting the vibration requirements of in-vehicle use. 200W High Power FPV Jammer Module 2100-2500MHz 28V DC use with an N-type female connector ensures reliable and consistent signal transmission, it can suitable for FPV jamming applications in diverse and complex scenarios, including in-vehicle and outdoor applications.

Product specification

No.	Item	Data	Unit
1	Frequency	2100-2500	MHz
2	Test voltage	28	V
3	Current	20	A
4	Output	200	W
5	Gain	53	dB
6	Output stability	1	dB
7	Connector	N /Female
8	Output connector VSWR	≤1.30 (No power and VNA test)

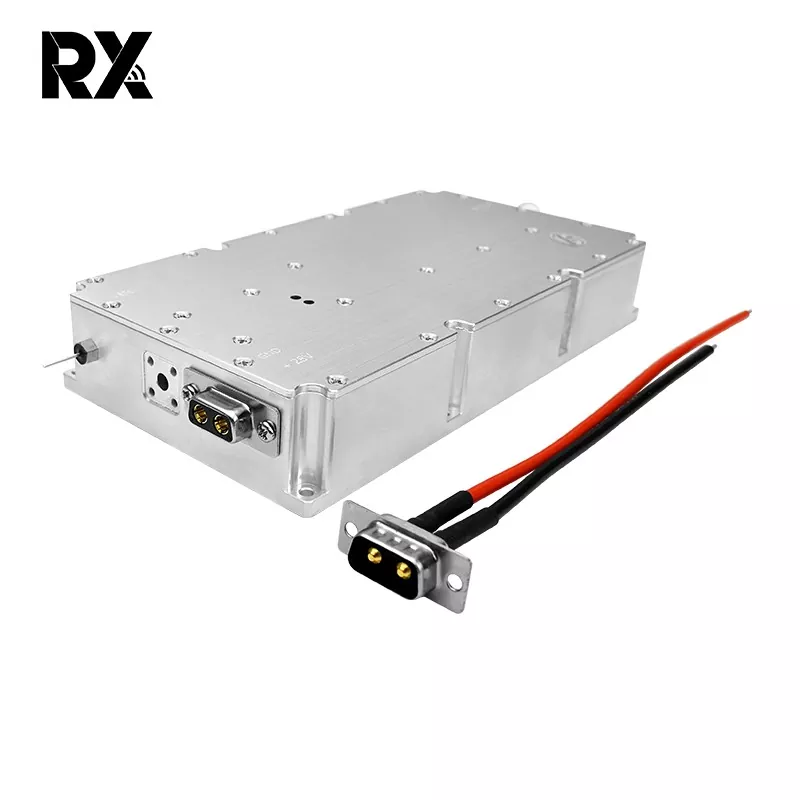

9	Power supply wire	Red+Black+Enable wire
10	Enable Control	High ON Low Off
11	Out shell Size	1709430	mm
12	Mount hole	94*178	mm
13	Weight	1124	g
14	Work Temperature	-40~+65	℃
15	Out shell material	Aluminum
16	Vibration need	Car loadOK
