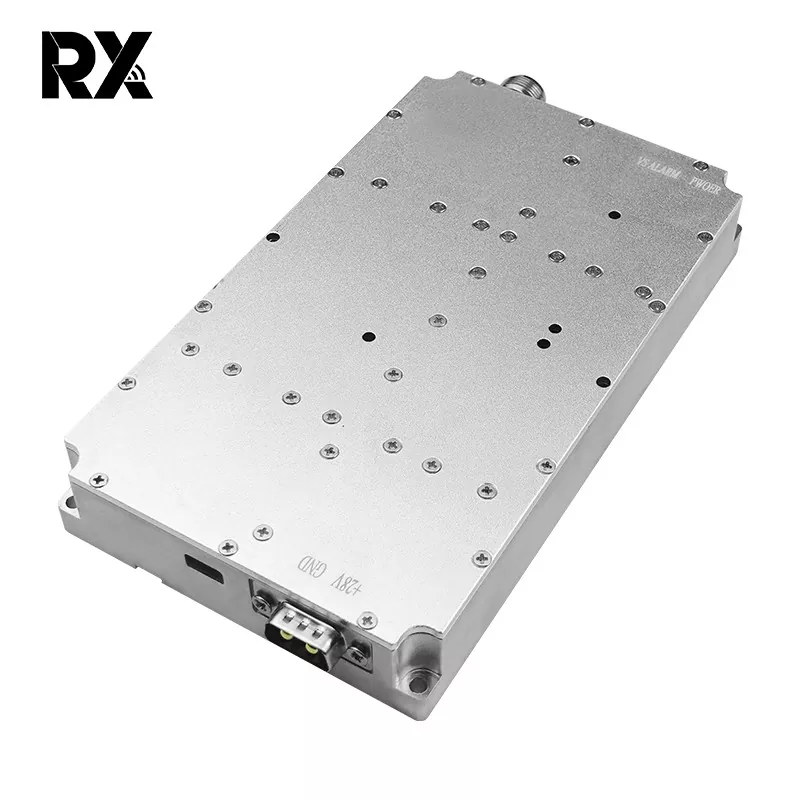

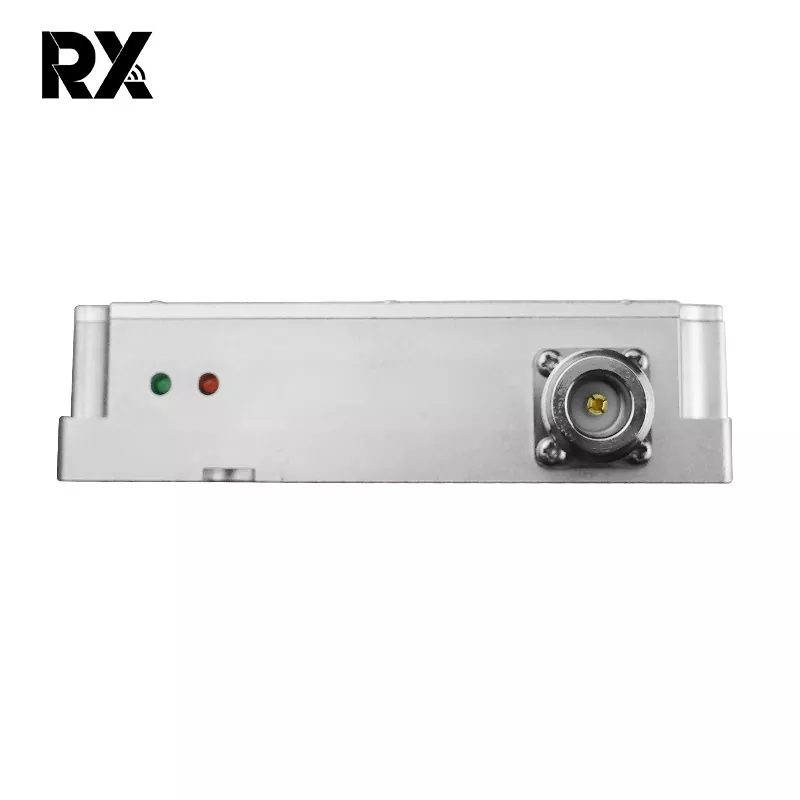

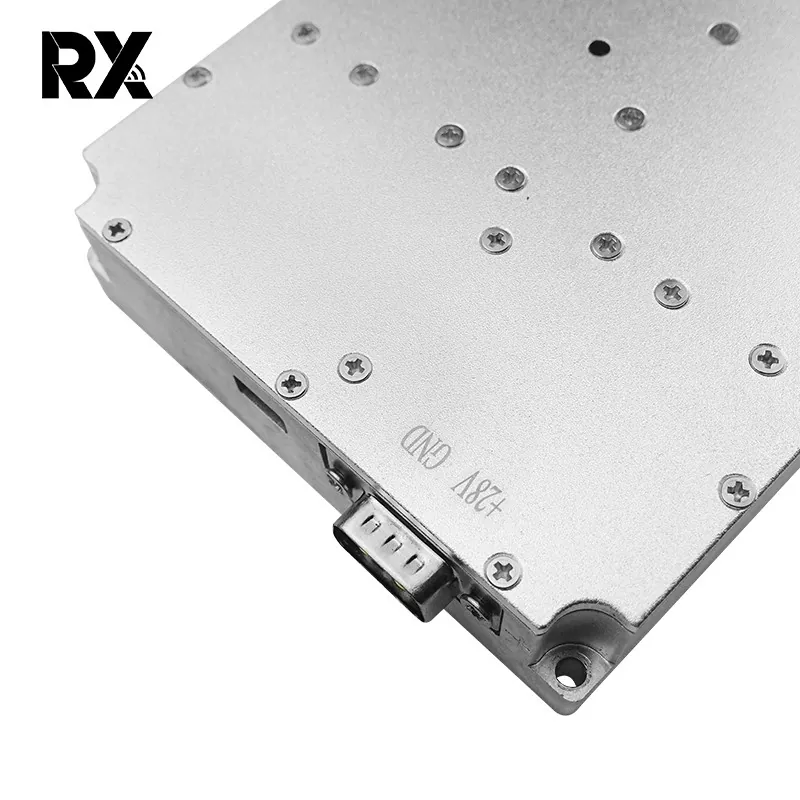

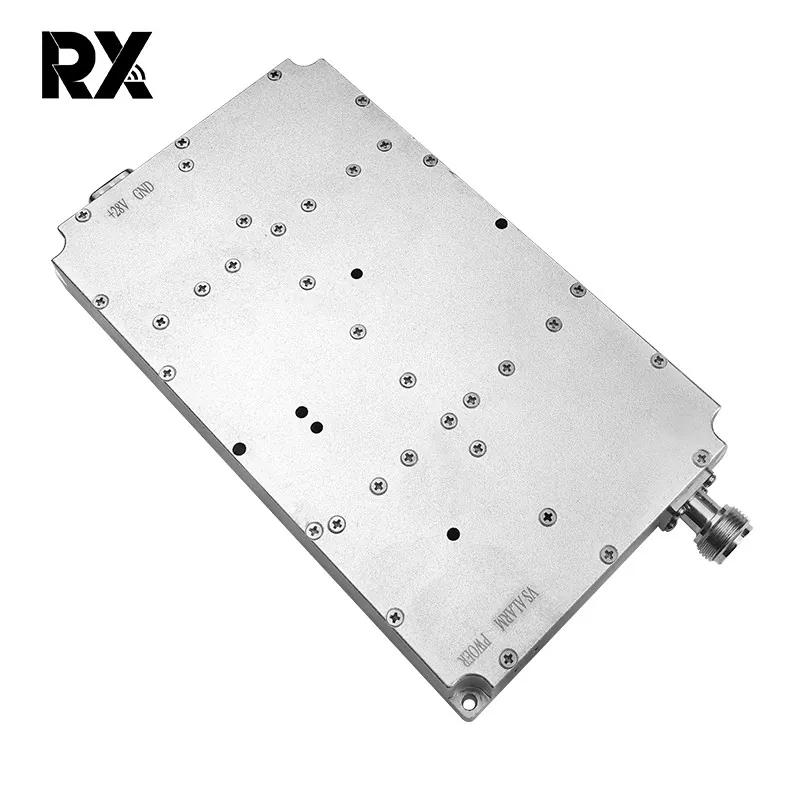

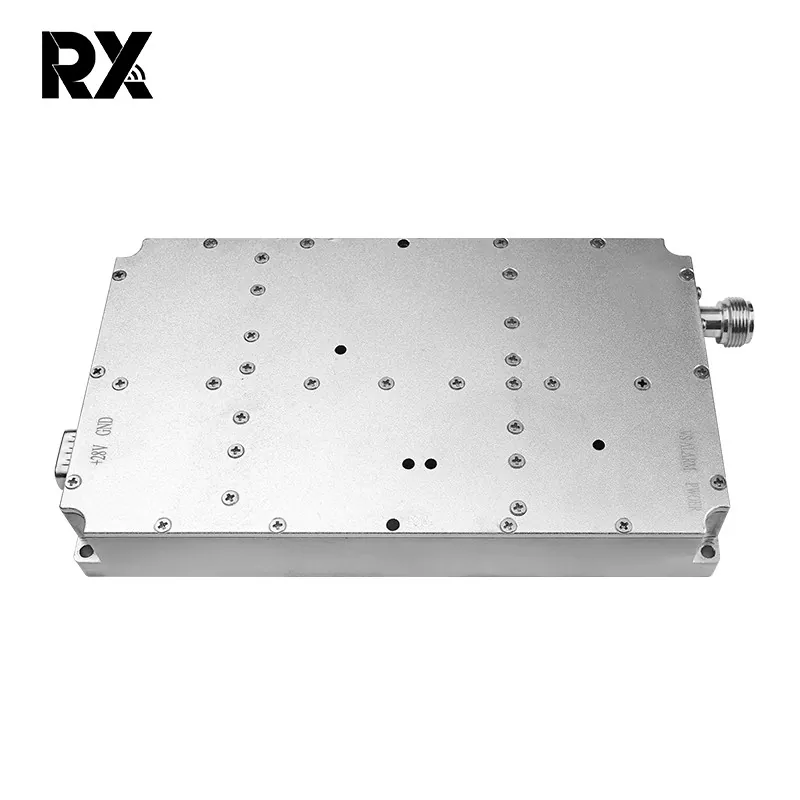

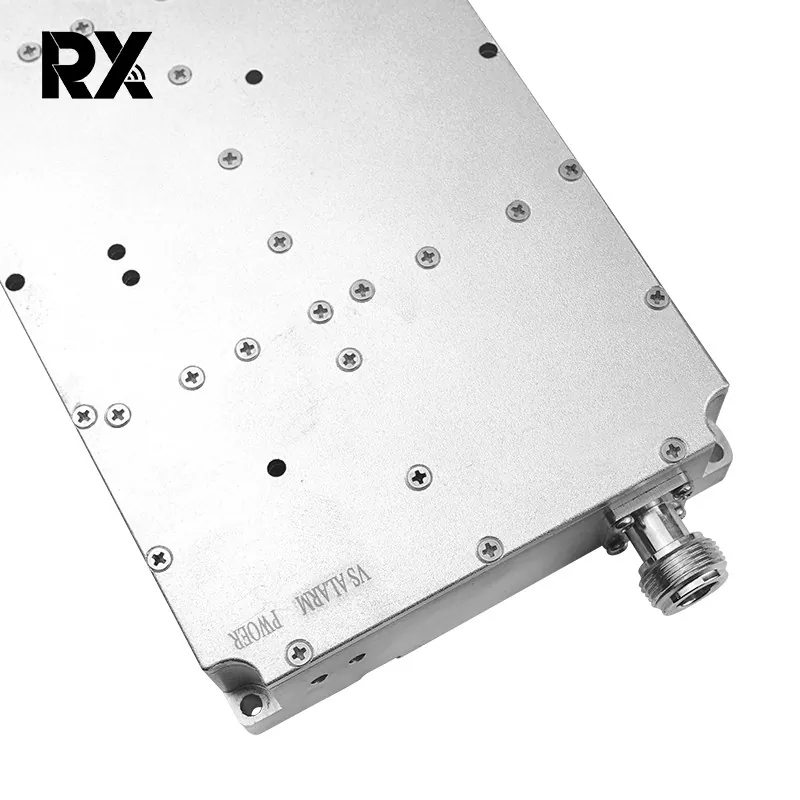

2.4G Power Amplifier Module WIFI Amplifier Module 100W

The module power output is 100W, which is used to enhance the signal strength of 2.4G such as WIFI and increase the transmission distance or coverage range. It can enhance the signal power when a longer communication distance is required; 2.4G Power amplifier module WIFI amplifier module 100W is also suitable for WIFI signal coverage projects, such as in large venues, outdoor temporary networking , to enhance the 2.4G signal emitted by WIFI base stations and expand the coverage of high-quality signals.

Send Inquiry

Product Description

The frequency bands for special application drones are 433MHz, 830MHz, 915MHz, 1.2G, 1.4G, and 5.2G. 2.4G Power amplifier module WIFI amplifier module 100W easy to install, it is suitable for bad weather.

Product specification

2.4GHz100W RF Power Amplifier Specification
No.	Item	Data	Unit	Notes
1	Frequency	1560-1620	MHZ
2	Work Temperature	-20~+70	℃
3	Max Output Power	100	W
4	Input power	5	dBm	0-10dbm optional Regular type with VCO inside no need input
5	Work Voltage	24-32	V
6	Max Gain	50	dB
7	Max Current	10	A
8	Impedance	50Ω
9	Output Connector	N/F		Customized
10	Power Amplifier Efficiency	45		when Max Output
11	Switch Control	high low level current	V	24-28V OrCustomized
12	Power adjustable	Customize		Can make if you need
13	Standing Wave Protection	OK
14	Temperature Protection	75°	℃

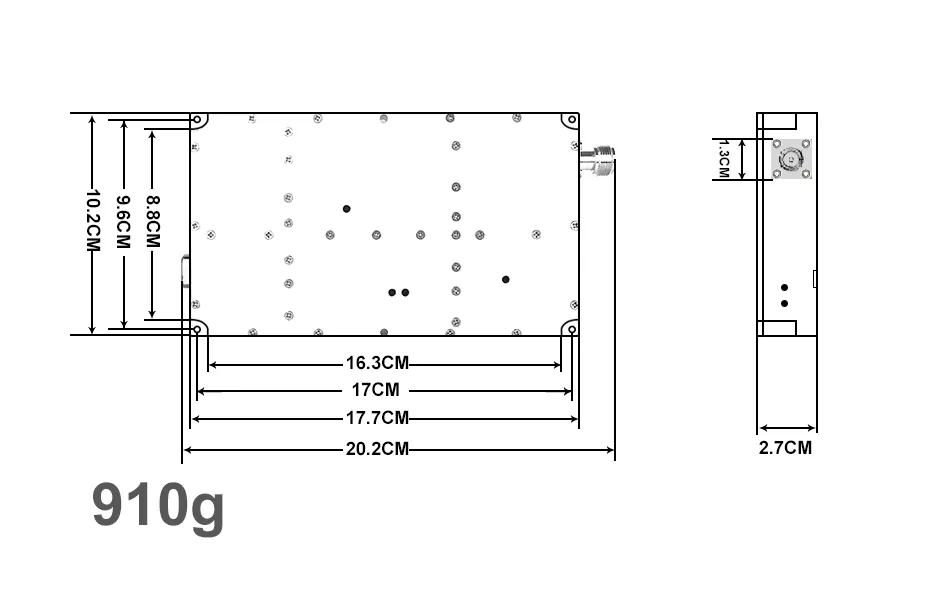

15	Size	20011024	mm
16	Weight	0.91	Kg
