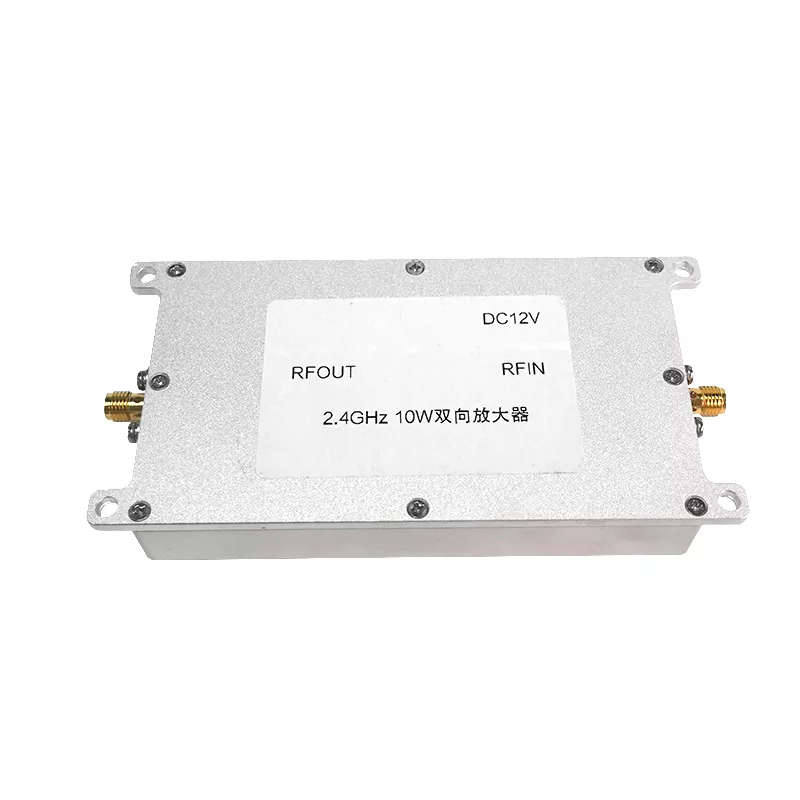

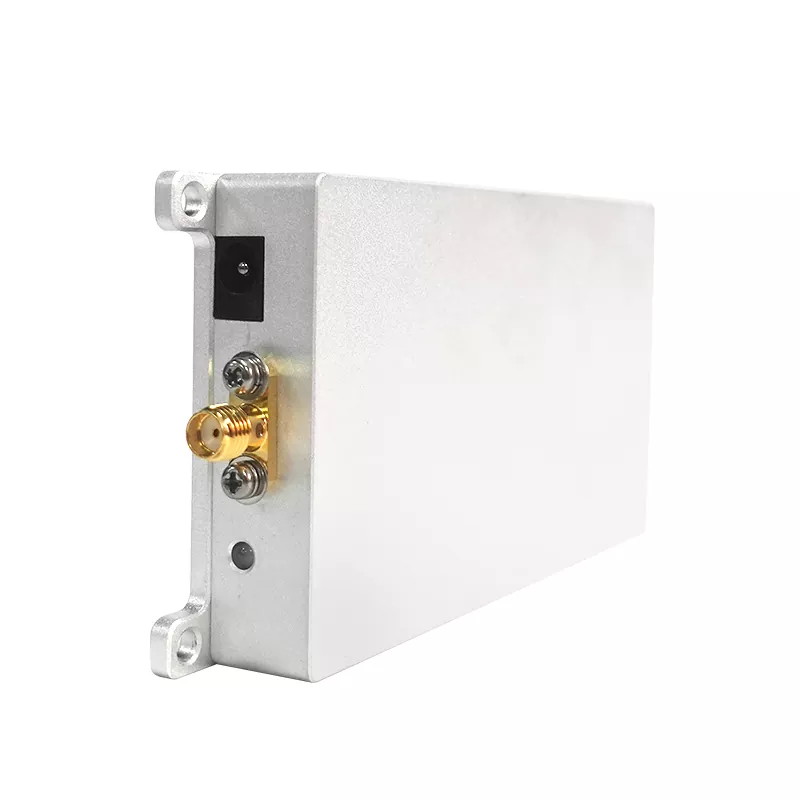

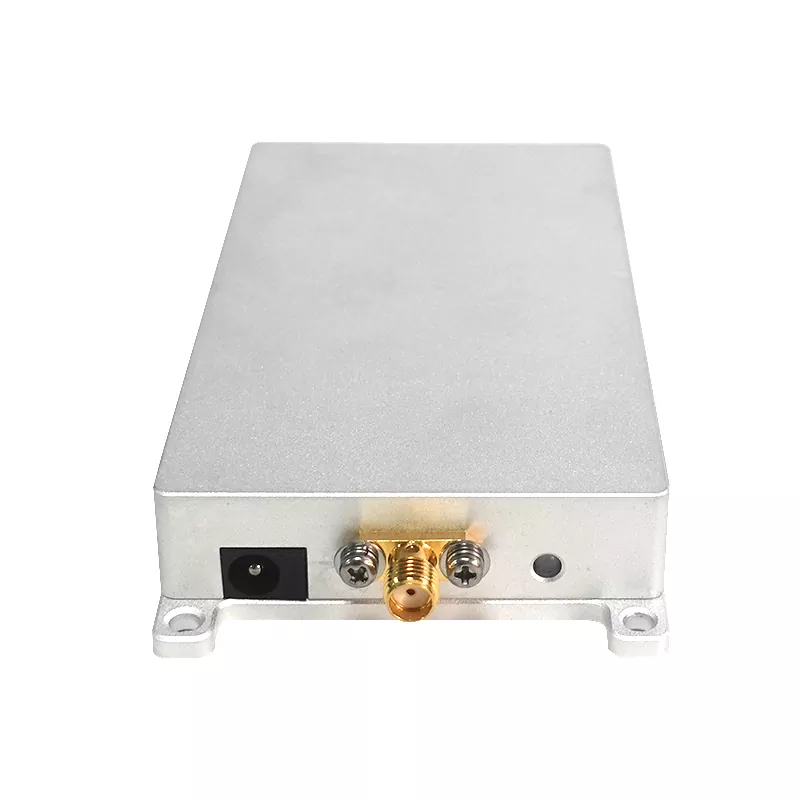

2.4G 5.8G Dual Band Wifi Booster Range Extender Signal Amplifier
  • 2.4G 5.8G Dual Band Wifi Booster Range Extender Signal Amplifier2.4G 5.8G Dual Band Wifi Booster Range Extender Signal Amplifier
  • 2.4G 5.8G Dual Band Wifi Booster Range Extender Signal Amplifier2.4G 5.8G Dual Band Wifi Booster Range Extender Signal Amplifier
  • 2.4G 5.8G Dual Band Wifi Booster Range Extender Signal Amplifier2.4G 5.8G Dual Band Wifi Booster Range Extender Signal Amplifier
  • 2.4G 5.8G Dual Band Wifi Booster Range Extender Signal Amplifier2.4G 5.8G Dual Band Wifi Booster Range Extender Signal Amplifier

2.4G 5.8G Dual Band Wifi Booster Range Extender Signal Amplifier

Shenzhen Rongxin Communication Co., Ltd is one of the famous China 2.4G 5.8G dual band wifi booster range extender signal amplifier manufacturers and suppliers. You are welcomed to come to our factory to buy the latest selling, low price, and high-quality anti drone products and related accessories. We look forward to cooperating with you.

Send Inquiry

Product Description

Rongxin 2.4G 5.8G dual band wifi booster range extender signal amplifier Introduction

This high quality Rongxin 2.4G 5.8G dual band wifi booster range extender signal amplifier adopts the direct sequence spread spectrum(DSSS) and orthogonal frequency division multiplexing (OFDM) technology of WLAN communication.Rongxin 2.4G 5.8G dual band wifi booster range extender signal amplifier is compatible with time division duplexing (TDD) method of WLAN and using rapid microwave detection technology to provide high linearity amplification. The Rongxin 2.4G 5.8G dual band wifi booster range extender signal amplifier can work with most WLAN/Wi-Fi devices and increase the WLAN signal strength, therefore a larger WLAN coverage and more stable transmission rate.

Rongxin 2.4G 5.8G dual band wifi booster range extender signal amplifier Specification

Frequency Range

2.4~2.4835GHz

 Operating Voltage

8~24V(default 12V)

 Receiving Gain

10~25dB(default 20dB)

 Transmission Gain

 10~25dB(default 16dB)

 Input Trigger Power

5~23dBm

 Maximum Output Power(P1dB)

 43dBm(20W)

 EVM

5%@37dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz

 DC Supply Current

3000mA@Pout 37dBm 12V

Noise Figure

≤3.0dB

TX/RX Switch Time Delay

≤1us

Operating Ambient Temperature:

-20℃~+60℃

Rongxin 2.4G 5.8G dual band wifi booster range extender signal amplifier Application

Wireless LAN 802.11 b/g /n Access、Clinet

Ø2.4GHz WLAN base station

Ø2.4GHz WLAN bridge

ØDrone, Aeromodelling, etc.
