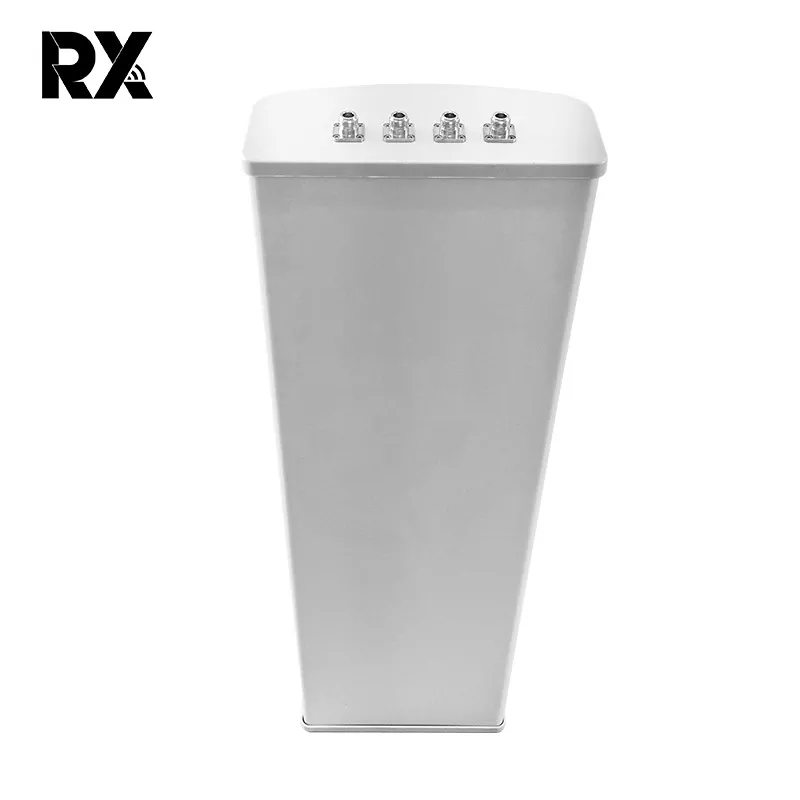

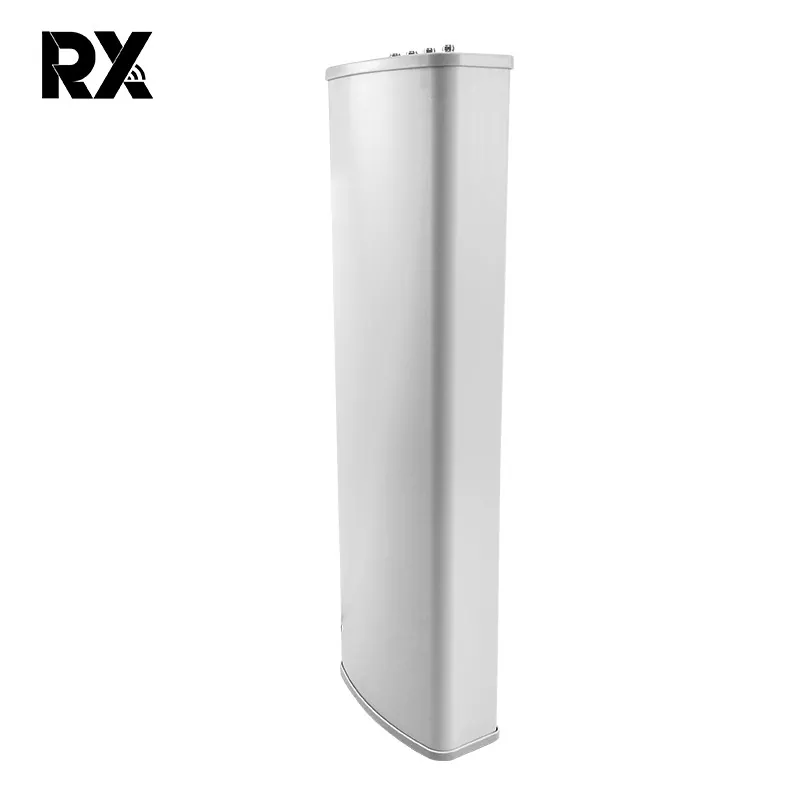

15 dBi High Gain 700-2700MHz Panel Antenna 100W for Outdoor

15 dBi High Gain 700-2700MHz Panel Antenna 100W for Outdoor operating frequency band covering 700MHz to 2700MHz, is designed for outdoor scenarios and can adapt to the signal requirements of a variety of communication equipment. The high gain characteristics of 15dBi allow it to focus and amplify signals more efficiently, reduce signal loss during transmission, and thus improve signal transmission distance and quality.

Send Inquiry

Product Description

This antenna supports 100W of power and boasts a strong power-carrying capacity, enabling long-term stable operation in complex outdoor environments. 15 dBi High Gain 700-2700MHz Panel Antenna 100W for Outdoor anti-interference and durability have been proven in outdoor scenarios, and it can withstand the effects of wind, rain, and temperature fluctuations. The overall design combines practicality and professionalism, offering easy installation and compatibility with various outdoor installation methods.

Product specification

Outdoor antenna
Frequency Range	700-2700MHz(customized)
Recommend Cover area	1-30 kilometers
Bandwidth	160/790MHz
Gain	15dBi
F/B ratio	≥25dB
VSWR	≤1.7
Polarization	Vertical
Max power	100 W
Nominal Impedance	50Ω
MECHANICAL

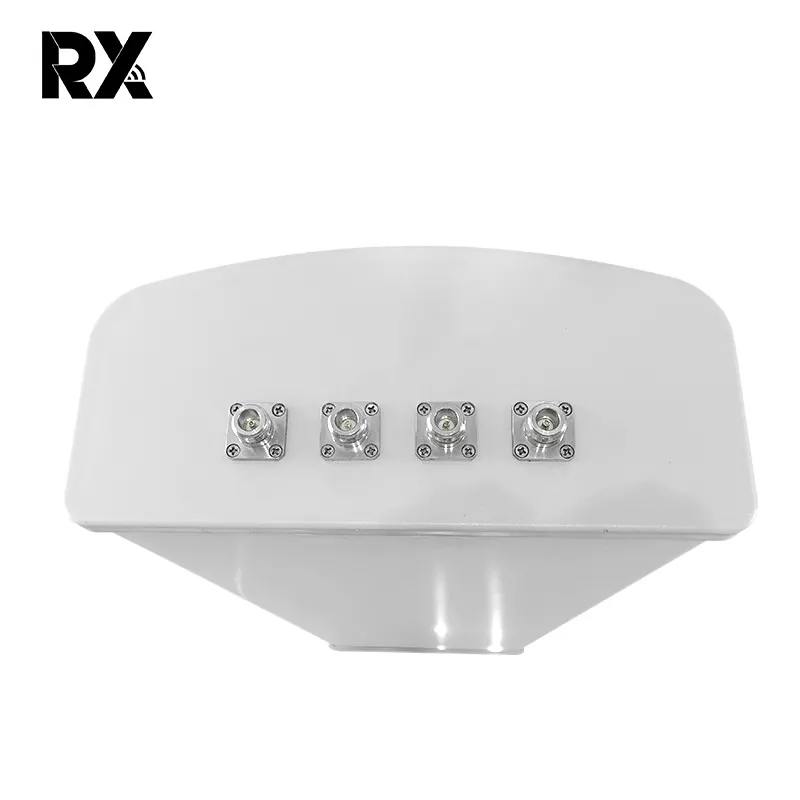

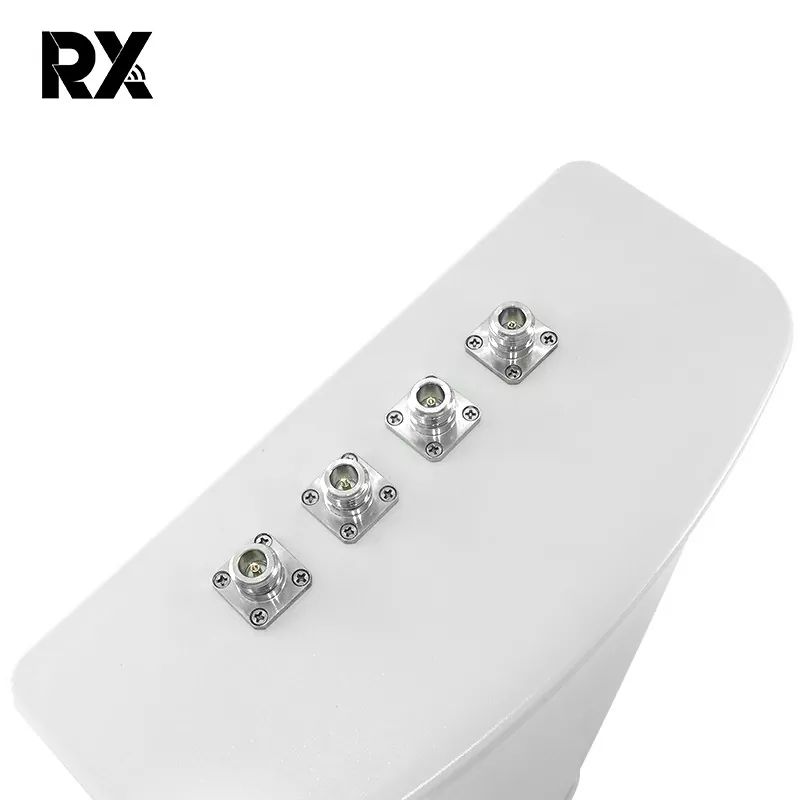

Connector	N female

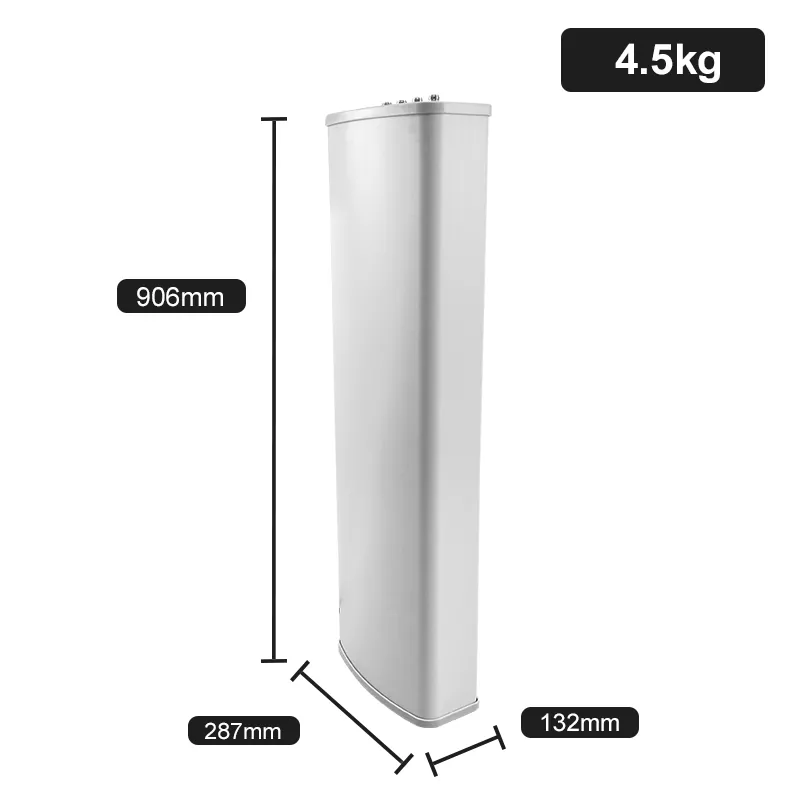

Antenna Dimension	906287132mm
Weight	4.5kg
Rated Wind Velocity	60m/s
Vertical Beamwidth	15/9

Hot Tags: 15 dBi High Gain 700-2700MHz Panel Antenna 100W for Outdoor, China, Manufacturers, Suppliers, Wholesale, Factory, Customized, Brands, Quality, 1 Years Warranty

Product Tag

Related Category

15 dBi High Gain 700-2700MHz Panel Antenna 100W for Outdoor

Send Inquiry

Product specification

Omni Signal Jammer Antenna

Directional Signal Jammer Antenna

High Gain 7 Band Combination PCB Antenna

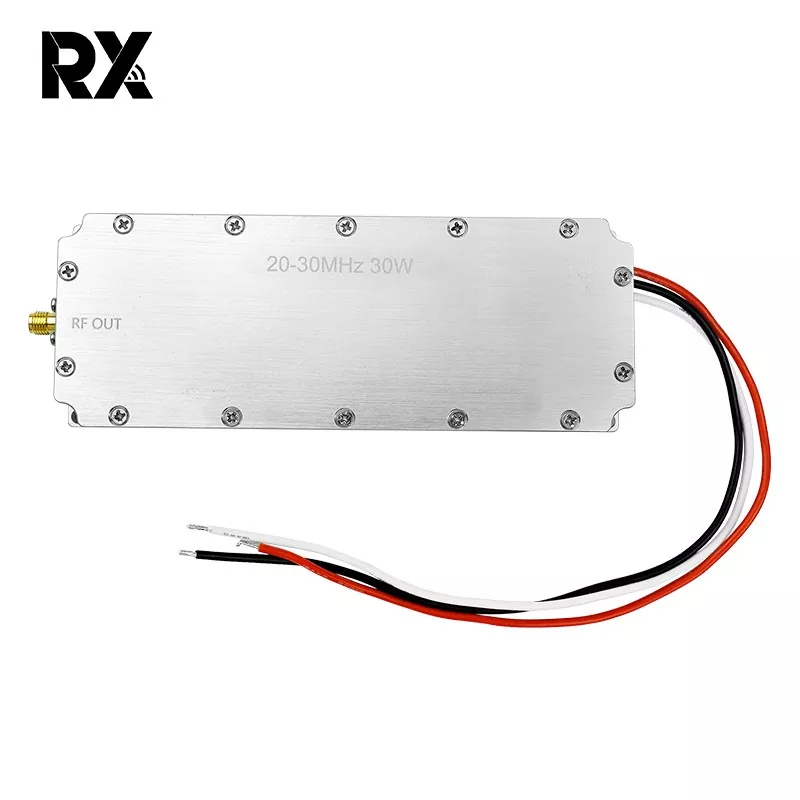

New design 30W SMA Connector Drone jammer module 20-30MHz
