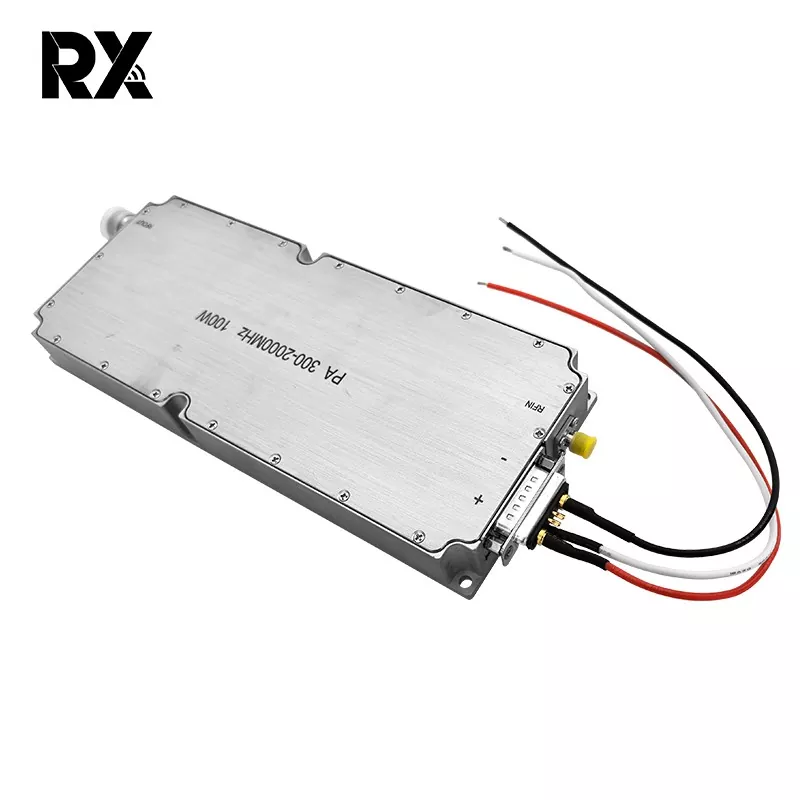

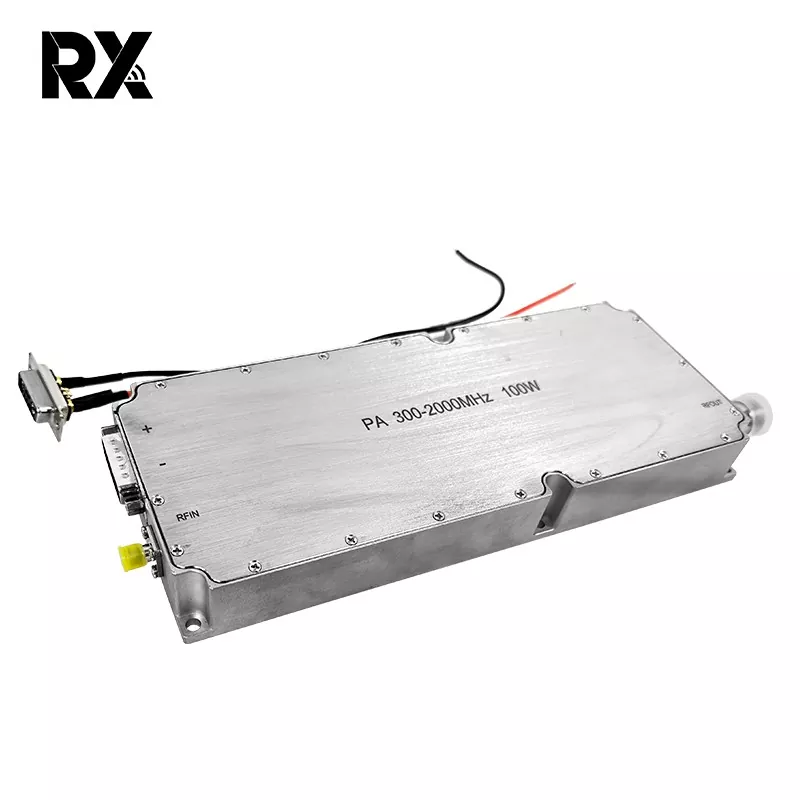

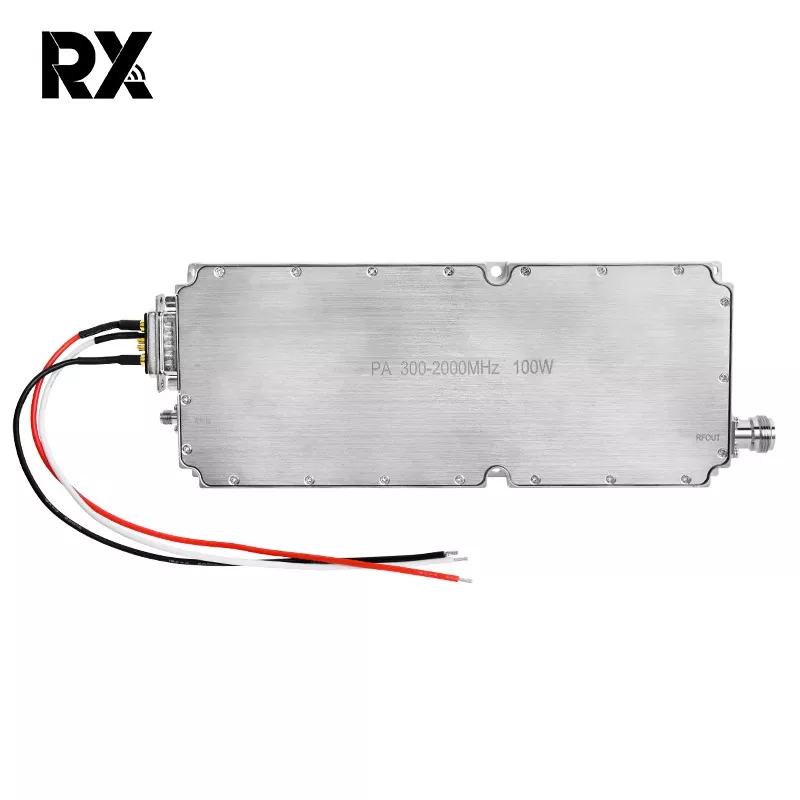

100W RF Power Amplifier Module 300 -2000MHz 32V 8A High Gain

The 100W RF Power Amplifier Module is a high-power amplifier module designed specifically for professional RF systems. It covers an ultra-wide operating frequency band of 300-2000MHz,and it can supports 32V DC power supply, and has a rated operating current of 8A. 100W RF Power Amplifier Module 300-2000MHz 32V 8A High Gain can effectively solve the power problem in RF signal transmission and is widely used in wireless communications, RF testing, industrial control, and other fields.

Send Inquiry

Product Description

This module has 100W high power, 300-2000MHz wide frequency band and industrial-grade reliability. 100W RF Power Amplifier Module 300-2000MHz 32V 8A High Gain can not only solve the core pain point of "weak signals cannot be transmitted over long distances", but also adapt to the needs of RF systems in multiple scenarios.

Product specification

No.	Description	Symbol	Min	Type		Max	Unit	Remark
1.	Operating Frequency	BW	300			2000	MHz
2.	Input Power	Pin		2			dBm
3.	Output Power CW	Psat	49	50.5			dBm	Continuous Wave
4.	Power Gain	Gp		48.5			dBm	@ Pin=2 dBm
5.	Power Gain Flatness	△Gp		±1.5			dB	@ Pin=2 dBm
6.	Input Return Loss	S11		-15			dB
7.	Operating Voltage	Vdc	28	32		32	V
8.	Current Consumption	A		8		11	A	@ Pout＞80W

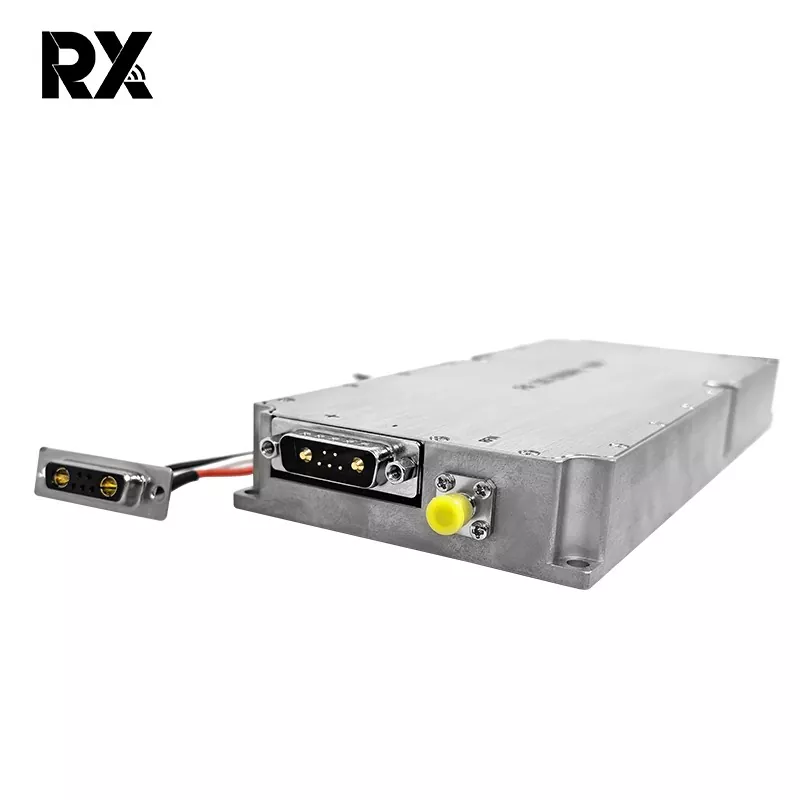

9.	RF Connector Input		SMA, Female

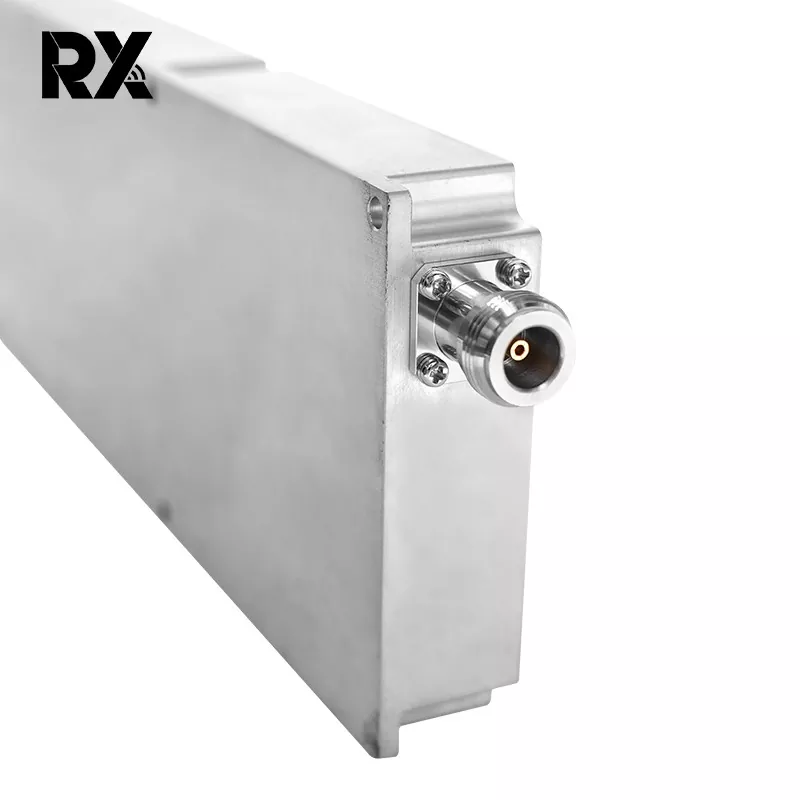

10.	RF Connector Output		N- Female
11.	Weight		0.95				Kg

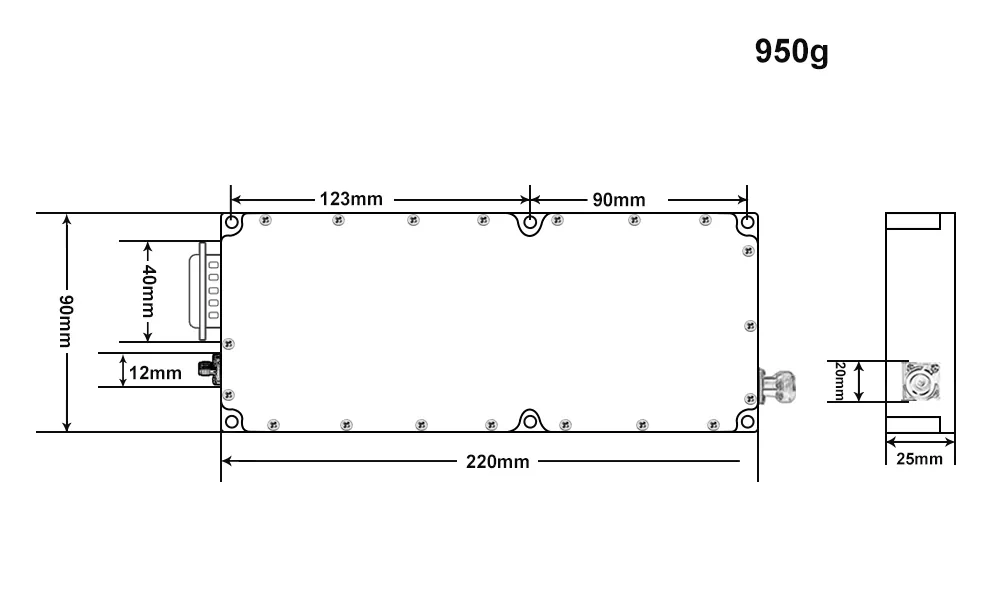

12.	LengthWidthHeight		2209025			mm
13.	Max Input Power	PinMax	≤10			dBm

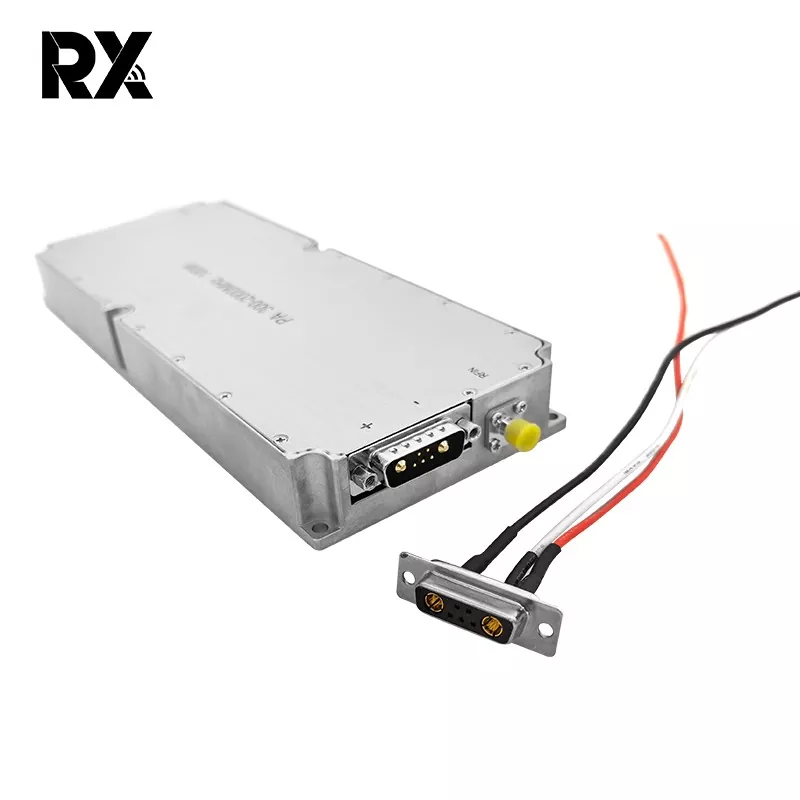

14.	Interface Definition (7W2 Female)	VDD	A1		28Vdc
		GND	A2		Ground
		Overcurrent protection	1		Normal operation:0V Overcurrent protection:+5V			Overcurrent protection@25A
		Over-temperature protection	2		Normal operation:0V Over-temperature protection:+5V			Over-temperature
		Enable	3		5V~Vdd:ON 0V:OFF			protection@100℃
		GND	4		Ground
		State	5		Normal operation:0V State protection:+5V
