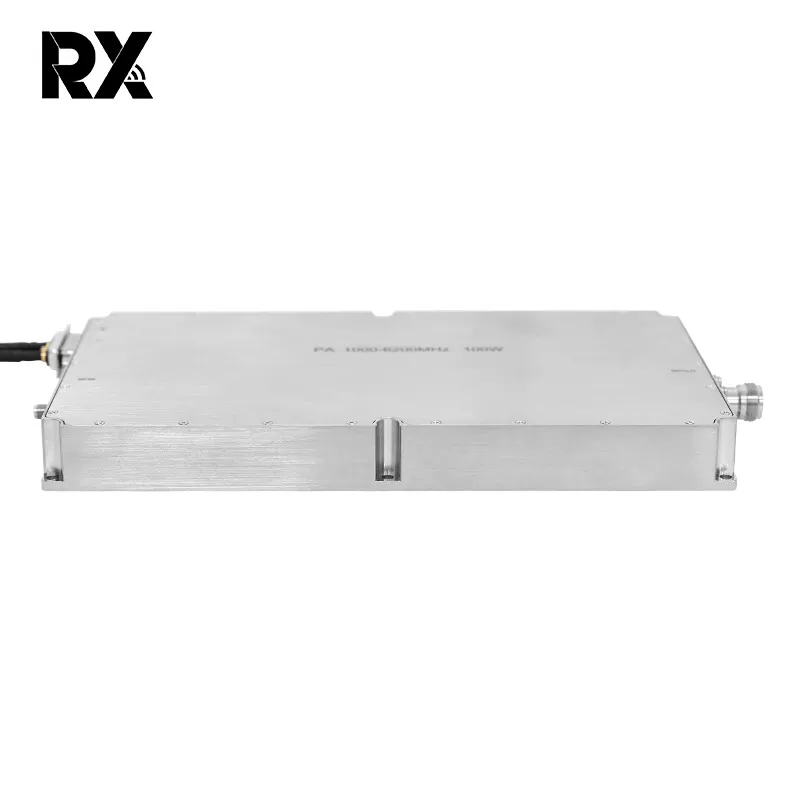

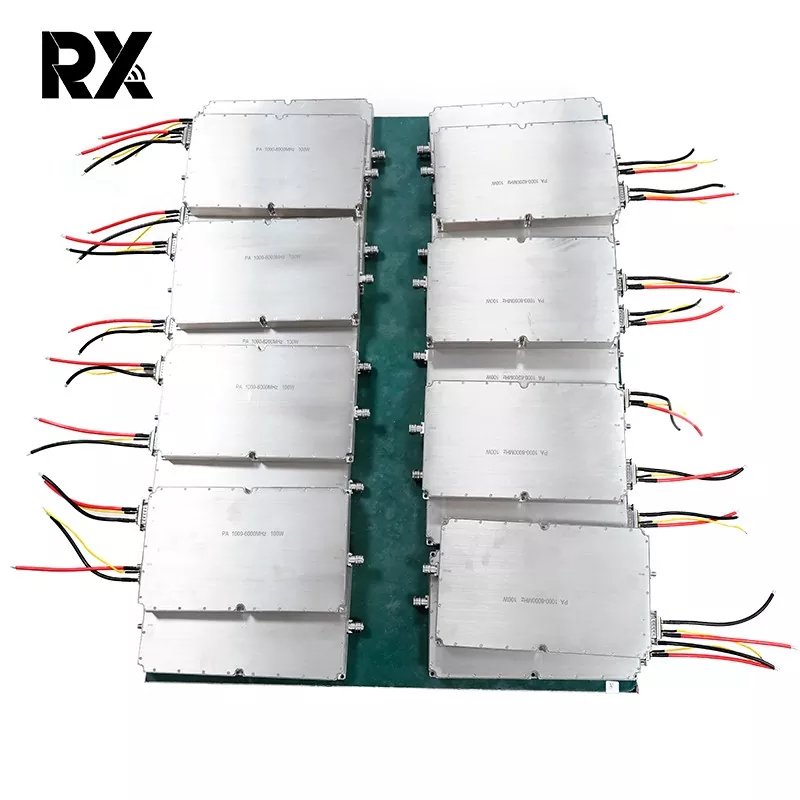

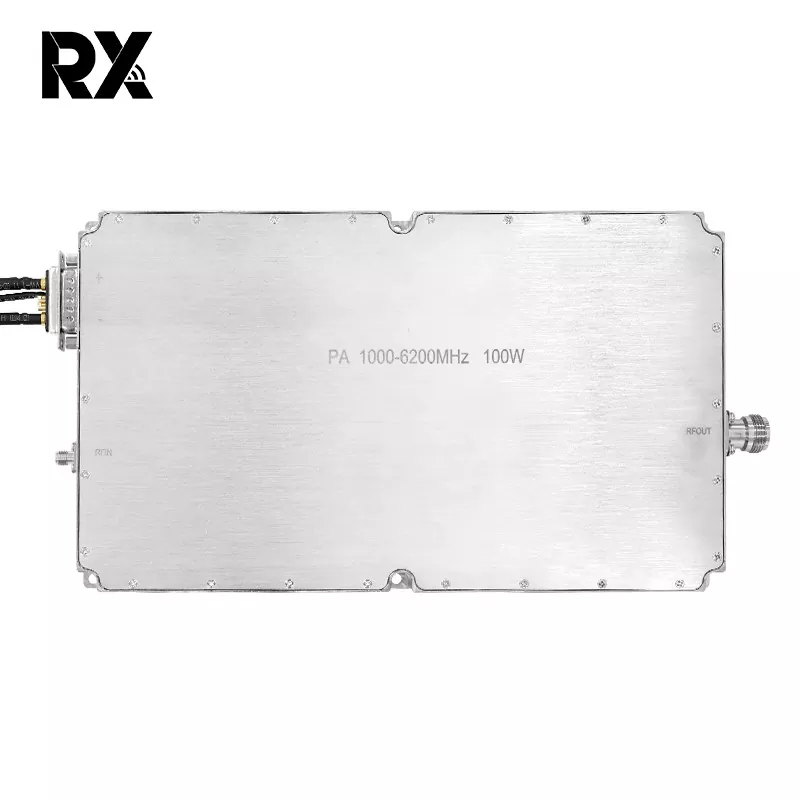

1000-6000MHz 100W Broadband RF Power Amplifier Module

This 1000-6000MHz 100W Broadband RF Power Amplifier Module is a high-performance 100W wideband power amplifier module operating across a broad frequency range of 1000MHz to 6000MHz. Designed with advanced microwave circuitry and high-quality semiconductor components, it is engineered for professional applications that demand exceptional power, bandwidth, and stability. It’s widely used in critical fields such as modern communication infrastructure, radar detection systems, and drone defense (FPV countermeasures), serving as a core component for enhancing signal coverage, extending system range, and improving anti-jamming capabilities.

Send Inquiry

Product Description

No.	Description	Symbol	Min	Typ		Max	Unit	Remark
1.	Operating Frequency	BW	1000			6200	MHz
2.	Input Power	Pin		2			dBm
3.	Output Power CW	Psat	50.5	51		52.5	dBm	Continuous Wave
4.	Power Gain	Gp	48.5	49		50.5	dBm	@ Pin=2 dBm
5.	Power Gain Flatness	△Gp		±1.5			dB	@ Pin=2 dBm
6.	Input Return Loss	S11		-15			dB
7.	Operating Voltage	Vdc	28	28		32	V
8.	Current Consumption	A		17		21.5	A	@ Pout=110~180W
9.	RF Connector Input		SMA, Female

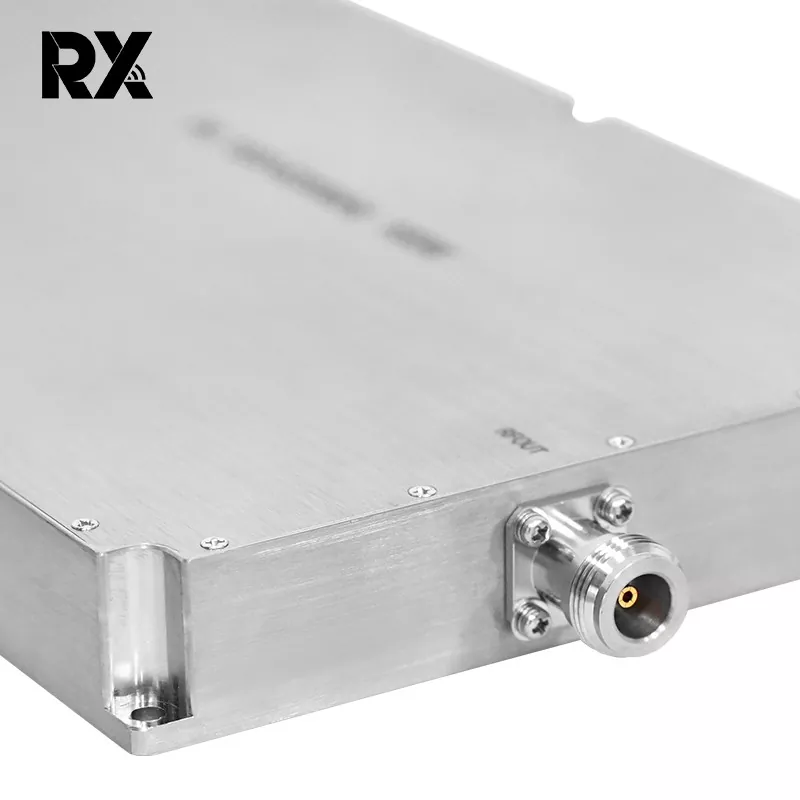

10.	RF Connector Output		N, Female
11.	Weight			1.9		2	Kg
12.	LengthWidthHeight		25015025			mm
13.	Max Input Power	PinMax	≤10			dBm
14.	Interface Definition (7W2 Female)	VDD	A1		28Vdc
		GND	A2		Ground
		Overcurrent protection	2		Normal operation:0V Overcurrent protection:+5V			Overcurrent protection@25A
		Over-temperature protection	2		Normal operation:0V Over-temperature protection:+5V			Over-temperature
		Enable	3		5V~Vdd:ON 0V:OFF			protection@100℃
		GND	4		Ground
		State	5		Normal operation:0V State protection:+5V

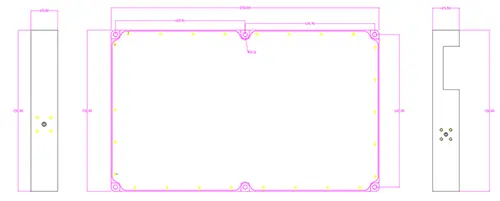

	Overall dimension	Note: 1、 The overall dimensions are for reference only； 2、 The size can be appropriately increased or decreased according to the customer's requirements； 3、 The positions of the input interface, output interface and power supply interface can be changed according to the actual needs of the customers；

As a true wideband solution, the 1000-6000MHz 100W Broadband RF Power Amplifier Module’s core value lies in its outstanding frequency adaptability and robust power output capability. Rather than being optimized for a single fixed frequency, it delivers stable and reliable amplification performance across the entire specified bandwidth. This makes it an ideal choice for multi-band systems, frequency-hopping applications, and R&D testing scenarios. We also support frequency band customization tailored to specific customer requirements, offering flexible technical adaptation.

In summary, this 100W wideband power amplifier module stands out with its four key features—wide bandwidth, high power, high reliability, and customizability—providing a powerful, flexible, and stable core power amplification solution for complex and professional RF applications.
